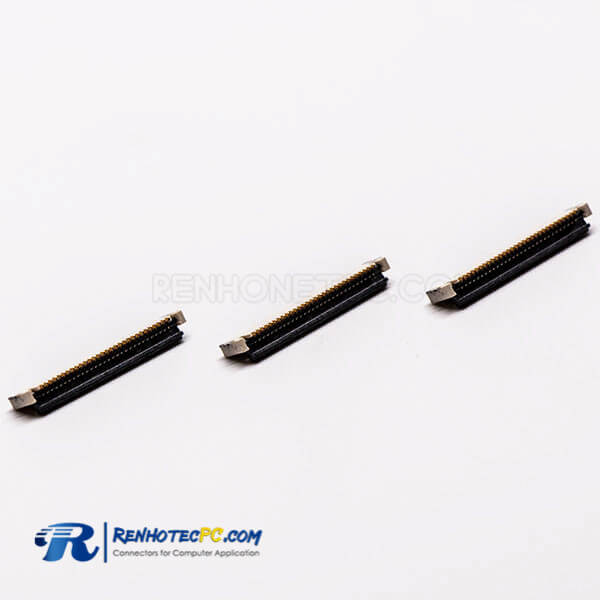

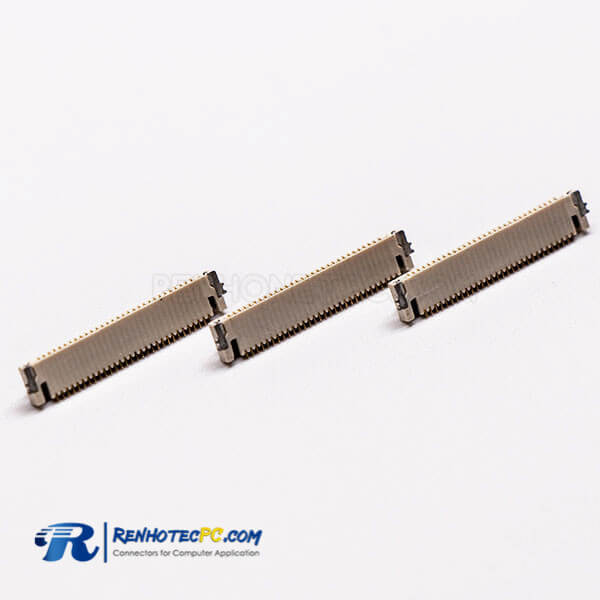

FPC Connector 0.5PH Top Contact Style Slider Type H1.2 For PCB Mount
Part NO.:RHT-616-0115
Tags: FFC/FPC Connector,PCB Mount,0.5 Pitch,30PIN,Top Contact,Slider Type,Solder Type,H1.2
Features:
- Offer the best combination of signal
- Superior contact reliability, compactness, wide circuit size range
- Narrower width and shorter length dimensions, provide additional space savings
- Supports high-speed Gigabit Ethernet applications
- 12 Months Quality Insurance
- Free sample available for quality test
- Can be Customized for unique material or performance requirement
Specification
Major Technical Characteristics |
|
Voltage (max.) | 50V |
Current (max.) | 0.5A |
Contact Resistance | 40 milliohms max. |
Insulation Resistance | 50 Megohm min. |
Durability (min.) | 25 cycles |
Operating Temperature | -40°C~ + 125°C |
