DVI Connector

Compare DVI PCB connectors by contact layout, gender and orientation. The range includes straight and right-angle designs, elevated connectors, and stacked combinations with DVI or high-density D-sub interfaces.

Filter & Product Results

38 productsPage 1 of 2

Filter products

Features

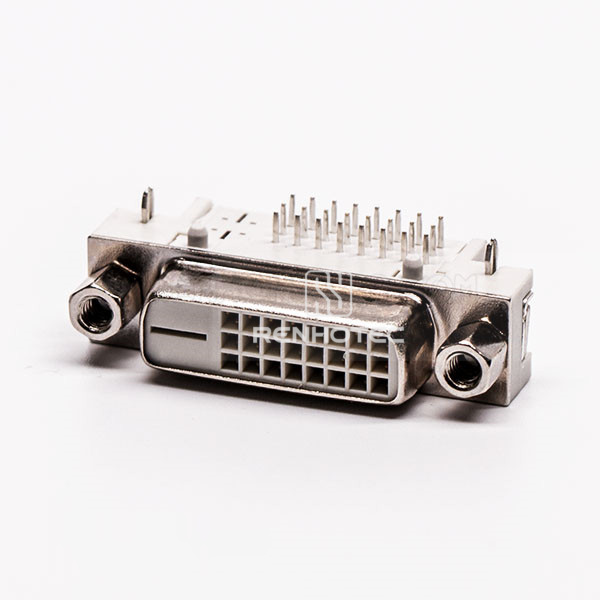

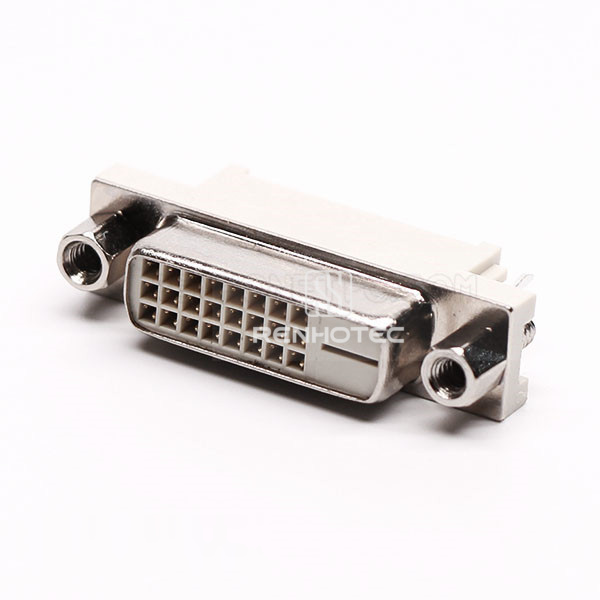

Compare 24+1 and 24+5 contact layouts before selecting straight or right-angle mounting. Selected connectors include nuts, panel mounting or harpoon construction; elevated and stacked designs require additional attention to mating-face height and port spacing.

Selection Guidance

Start with the mating interface and contact arrangement, then choose gender and orientation. For stacked connectors, check each port separately. Finally compare the PCB footprint, fixing positions and enclosure opening with the selected part drawing.

Frequently Asked Questions

Does the same contact layout mean two connectors share a footprint?

Contact layout alone does not establish a matching PCB footprint. Compare the hole pattern, fixing points and mating-face position on both drawings.

What needs checking on an elevated connector?

Check the mating-face height from the PCB and the location of the enclosure opening. An elevated design still needs a matching board footprint and fixing arrangement.

Does a stacked DVI and VGA connector convert signals?

A stacked connector description identifies its physical interfaces. It does not establish signal conversion; that requires separate confirmation of the circuit design.

Need a configuration not shown?

Include the part number, mating connector, key dimensions and required quantity in your inquiry.
