Electronic equipment interfaces and cable connections

Design around each
connection position.

Board spacing, enclosure geometry and cable routing shape the connector specification. Define the position first, then compare the required parameters.

Discuss your requirements

Define the interface before the part.

Board connections

Spacing and mating direction

Equipment interfaces

Panel opening and mating access

Cable connections

Routing space and end definitions

Connection position
Design questions
Information to prepare
01

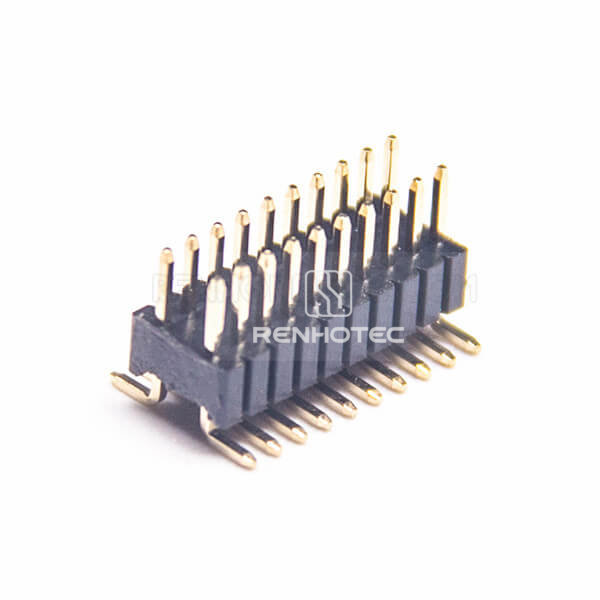

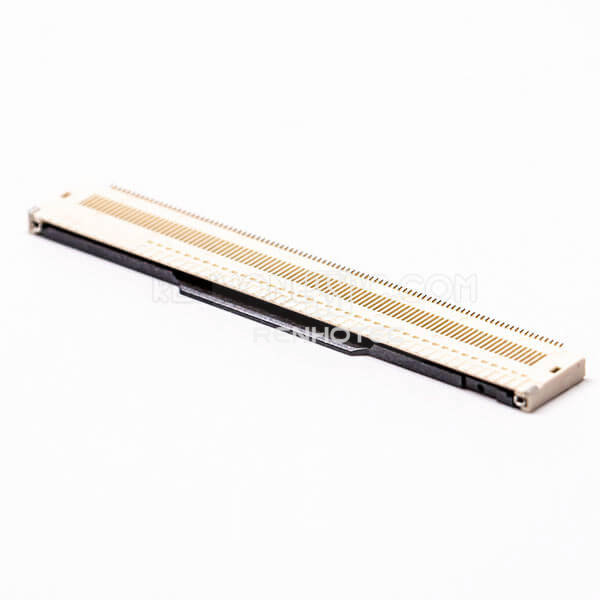

Board connections

Confirm contact pitch, board spacing and mounting direction. Allow clearance for assembly and mating.

Pitch and contact count · stack height · PCB footprint

Board layout and connector drawing

Explore board-connection products

Compare the pin arrangement, pitch and mounting geometry with your board layout.

02

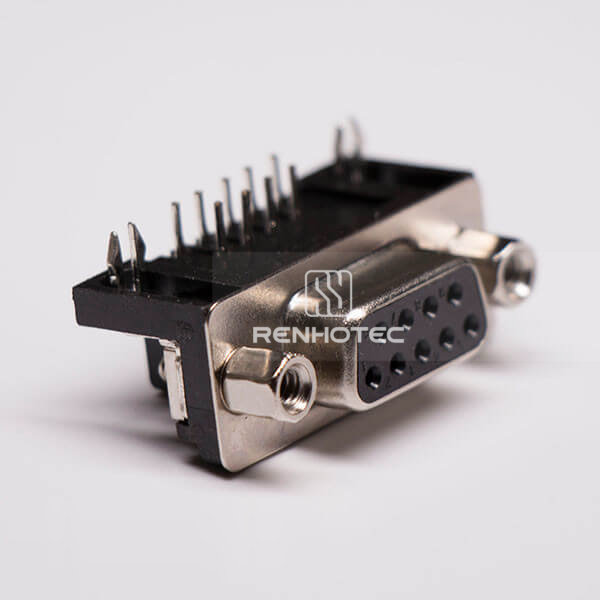

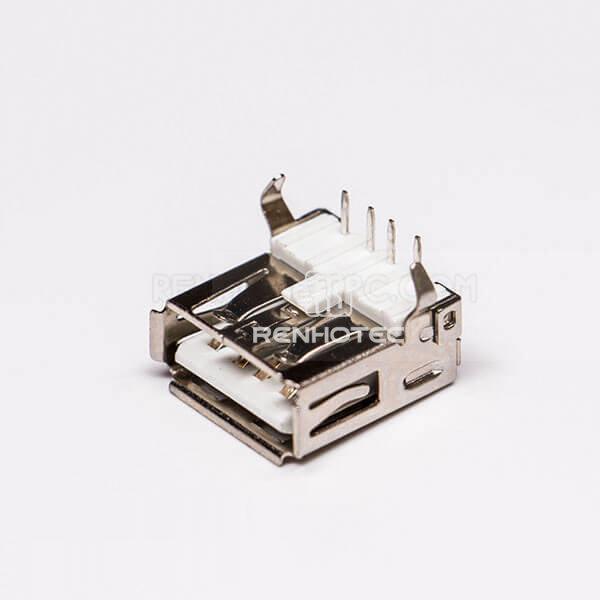

Equipment interfaces

Check the opening, retention and mating access at the enclosure. Define shielding requirements with the system design.

Panel opening · mounting hardware · orientation

Enclosure drawing and mating-part dimensions

Explore equipment-interface products

Compare the connector orientation, footprint and enclosure opening with your assembly drawing.

03

Cable connections

Define both ends of the assembly and the routing space. Specify pin assignments before discussing the connector pair.

Cable length · termination · pin assignment

Assembly drawing and wiring definition

Explore cable assemblies

Define both connector ends, the cable length and pin assignment for your assembly.

Start with
the right details.

A clear requirement helps us discuss the part, the fit and the quotation with you.

Download checklist
Connector Requirements Checklist · PDF
01

The connection

Public part number or mating reference. Contact count, pitch and mounting direction.

02

The operating requirements

Required voltage and current, signal functions and any environmental conditions.

03

The purchasing details

Quantity and unit, drawing or reference images, and the dimensions you need to confirm.

Discuss the requirements of your assembly.

Include the mating parts, available space, electrical requirements and required quantity.

Connector requirement

Tell us what connector you need

Share your connector requirements and the specifications you need.

    Inquiry details

    Attach one PDF, JPEG or PNG, up to 5 MB.

    Include the details needed to help with your connector inquiry. You can check them before sending.

    Complete verification before sending.
