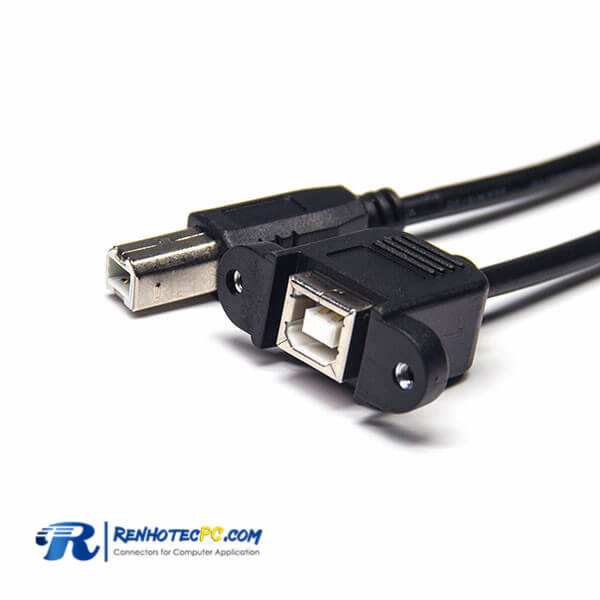

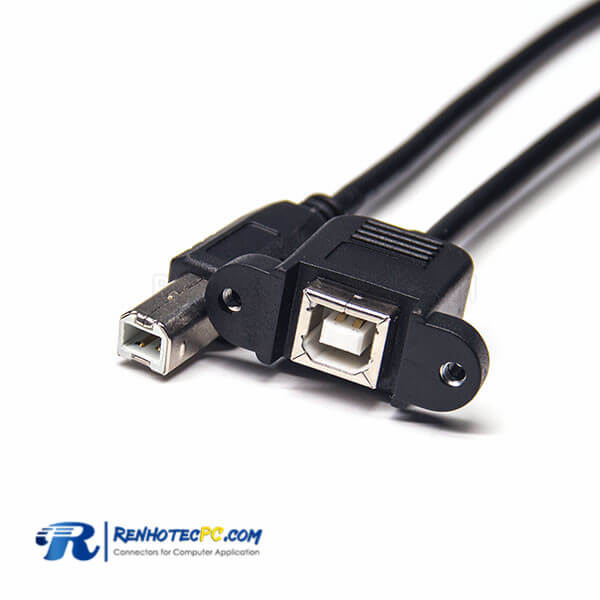

USB B to B Cable Female to Male 180 Degree OTG Cable

Part NO.:RHT-606-0129
Tags:USB2.0 Cable,Type B,Female,Straight,Type B,Male,Straight

Features:

  • Fast charging cable and data transfer line
  • 3A fast charging Android/iphone device data line
  • Cable length 1m(can be customized),pure copper wire core,PVC jacket,OD 3.5mm,Die-casting,support 3A current
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement

Major Technical Characteristics

Current rating 3A continuous
Insulation resistance 500MΩ min.
Dielectric withstanding voltage 1500V min.
Voltage rating 1000V rms
Mating force 5N to 20N
UNmating force 8N to 20N
Durability 10,000 mating cycles
Operating Temperature -40°C~ + 120°C
