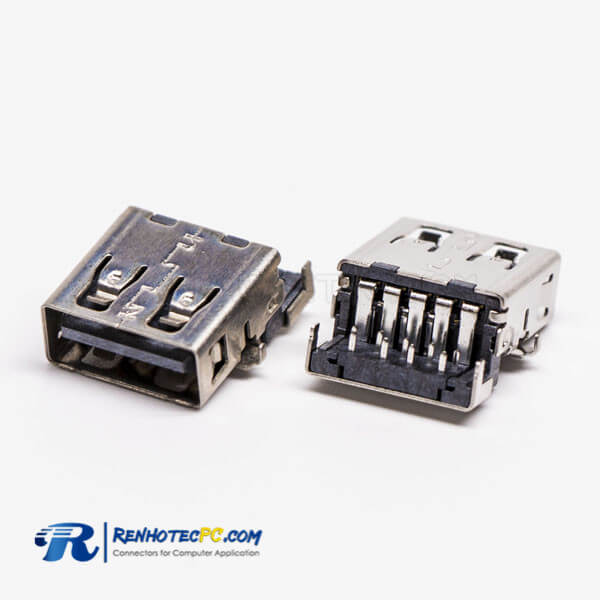

USB 3.0 Female 90 Degree Type A SMT Offset Type

Part NO.:RHT-692-1350
Tags: USB3.0,Type A,Right Angled/90°,Female/Jack,SMT,Offest Type,PCB Mount

Features:

  • Meets USB 3.0 specification
  • Capable of transferring data up to 5Gb/s
  • Full metal shielding
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement

Major Technical Characteristics

Contact Resistance 30Ω Maximum
 Contact Current Rating 1.50A
 Dielectric Withstanding Voltage 100V R.M.S
 Insulation Resistance 1000 Megohms Min
 Mating Force 3.57kg Max
 Unmating Force 1.02kg Min
Operating Temperature -45°C~ + 85°C
