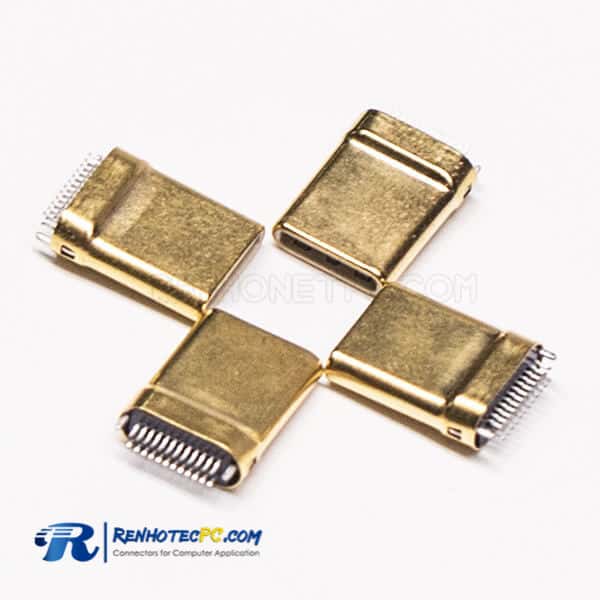

Type C 24 Pin Connector Straight Plug Through Hole Gold Plating

Part NO.: RHT-692-1315
Tags: USB Connector,Type C ,Male/Plug,24 Pin,Straight/180°,Through Hole,PCB Mount

Features:

  • Reversible plug and cable orientation for better user experience
  • Smaller connector size saves space
  • Easy and Quick usage
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement

Major Technical Characteristics

Volatage Rating 5V AC
Contact Rating 5.0A
Contact Resistance 40 milliohms max
Insulation Resistance 100 megohms
Withstanding Voltage 100V AC
Mating force  5N to 20N
UNmating force 8N to 20N
Durability 10,000 mating cycles
Operating Temperature -30°C~ + 85°C
