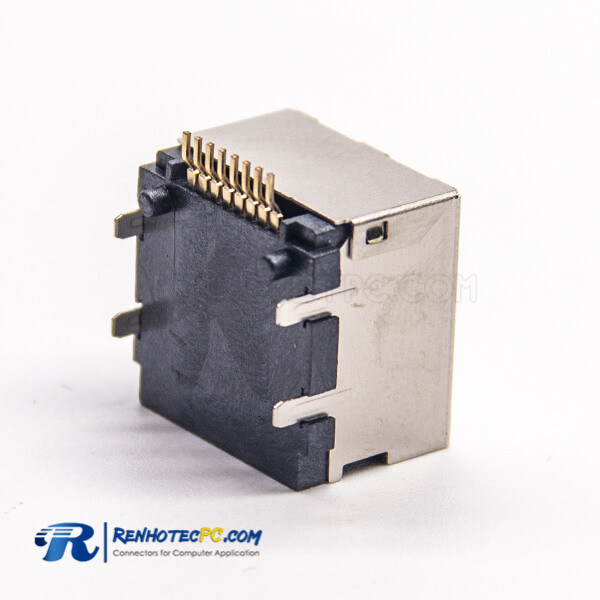

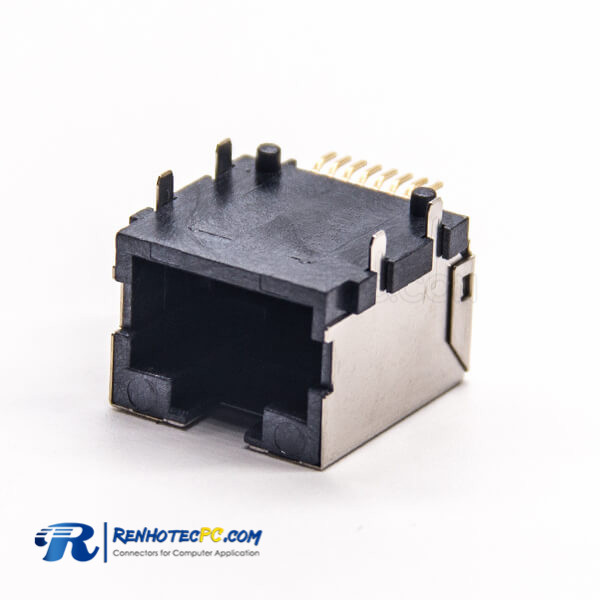

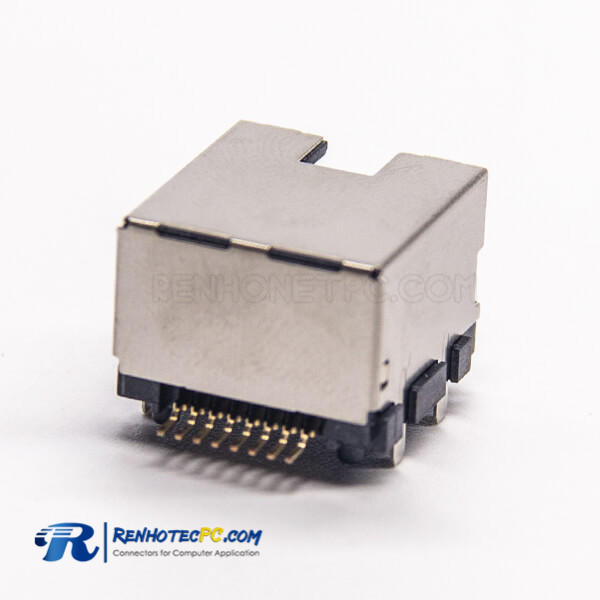

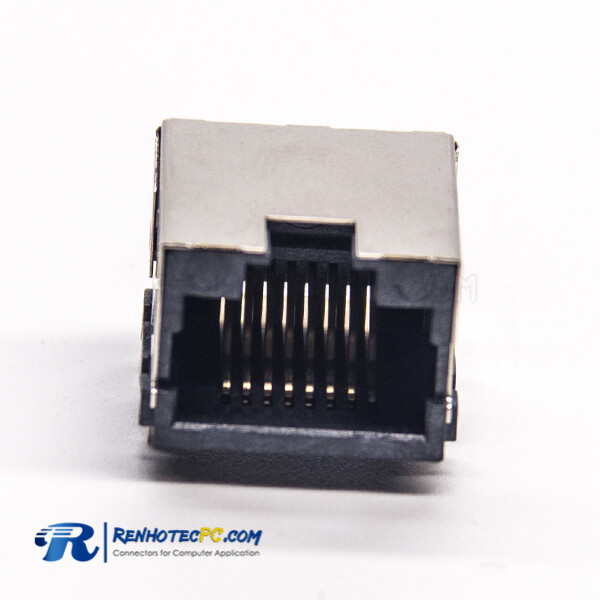

RJ45 PCB 90 Degree Female Connector Shielded without LED SMT

Part NO.:RHT-620-1216
Tags:RJ45 Jack,8P8C,Single Port,1*1,Angled,Gold,SMT,PCB Mount,Shielded,with LED,without Filtered

Features:

  • Comprehensive range for all application needs
  • Stackable side by side design
  • Supports wide variety of low-speed networking applications
  • Supports high-speed Gigabit Ethernet applications
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement

Please click ORDER NOW button for quantity under 100pcs and order from our online store.
For more quantity, please send us message to get FREE quote.

Major Technical Characteristics

Current rating 3A continuous
Insulation resistance 500MΩ min.
Dielectric withstanding voltage 1500V min.
Voltage rating 1000V rms
Mating force 5N to 20N
UNmating force 8N to 20N
Durability 10,000 mating cycles
Operating Temperature -40°C~ + 120°C
