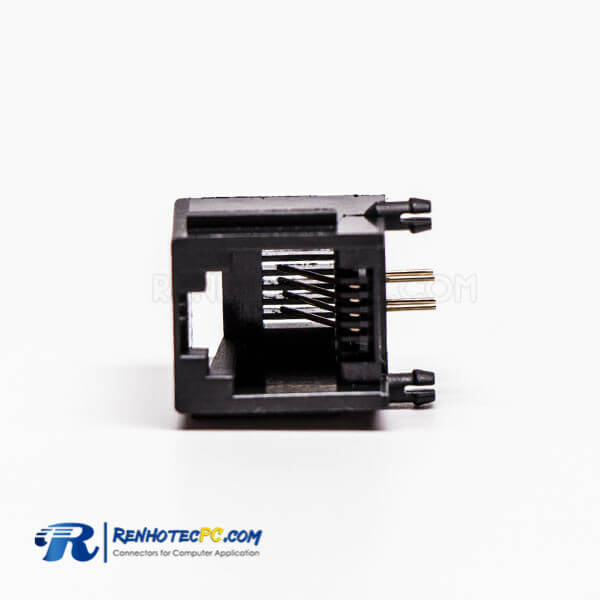

RJ45 90 Degree Connector Female 1 Port 4P Black Gold Plated Unshield Without LED

Part NO.:RHT-620-0728
Tags: RJ45,Female,PCB Mount,4P,1 Port,Right Angle/90°,Without Shield,Without LED,Black

Features:

  • Comprehensive range for all application needs
  • Stackable side by side design
  • Supports wide variety of low-speed networking applications
  • Supports high-speed Gigabit Ethernet applications
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement

Major Technical Characteristics

Current rating 3A continuous
Insulation resistance 500MΩ min.
Dielectric withstanding voltage 1500V min.
Voltage rating 1000V rms
Mating force 5N to 20N
UNmating force 8N to 20N
Durability 10,000 mating cycles
Operating Temperature -40°C~ + 120°C
