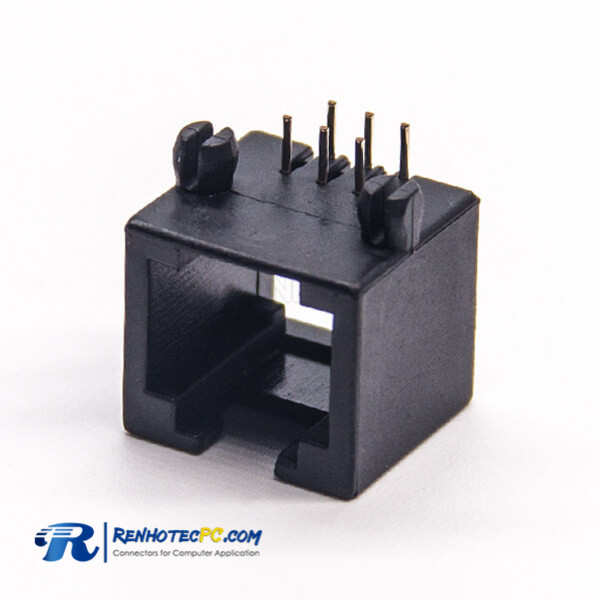

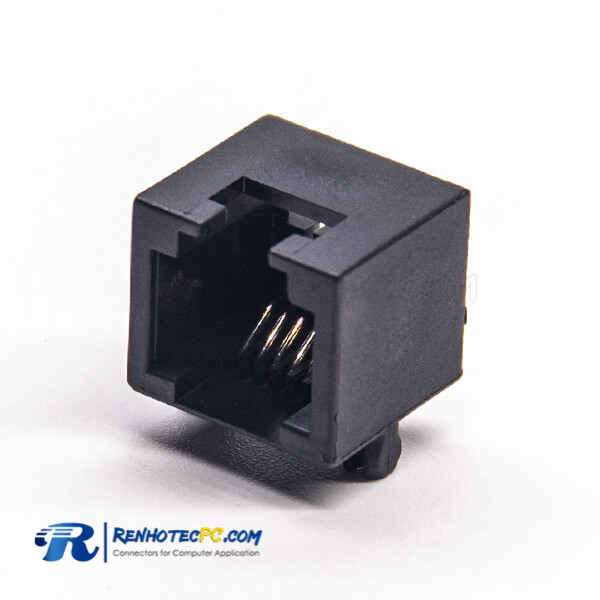

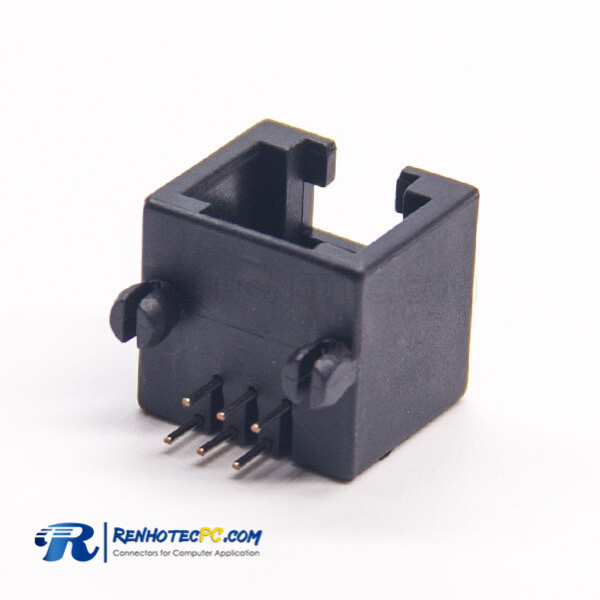

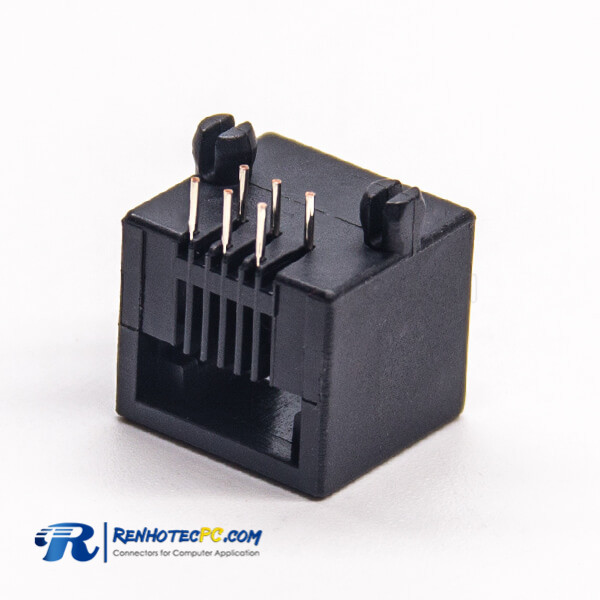

RJ12 Socket Connector Black Angled 6p6c Through Hole for PCB Mount

RJ12 Socket Connector Black Angled 6p6c Through Hole for PCB Mount
RJ12 Socket Connector Black Angled 6p6c Through Hole for PCB Mount RJ12 Socket Connector Black Angled 6p6c Through Hole for PCB Mount RJ12 Socket Connector Black Angled 6p6c Through Hole for PCB Mount RJ12 Socket Connector Black Angled 6p6c Through Hole for PCB Mount

Part NO.:RHT-620-1237
Tags:RJ12 Jack,6p6c ,Single Port,1*1,Angled,Gold,Through Hole,PCB Mount,Unshielded,without LED,without Filtered

Features:

  • Comprehensive range for all application needs
  • Stackable side by side design
  • Supports wide variety of low-speed networking applications
  • Supports high-speed Gigabit Ethernet applications
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement
Get A Free Quote

Major Technical Characteristics
Current rating 1.5 A
Insulation resistance 500MΩ min.
Dielectric withstanding voltage 1500V min.
Voltage rating 125VAC
Mating force 5N to 20N
UNmating force 8N to 20N
Durability 10,000 mating cycles
Operating Temperature -40 to 85°C
