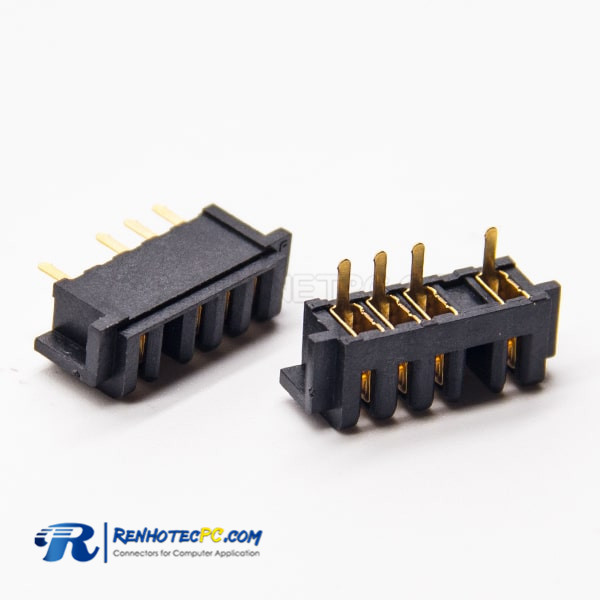

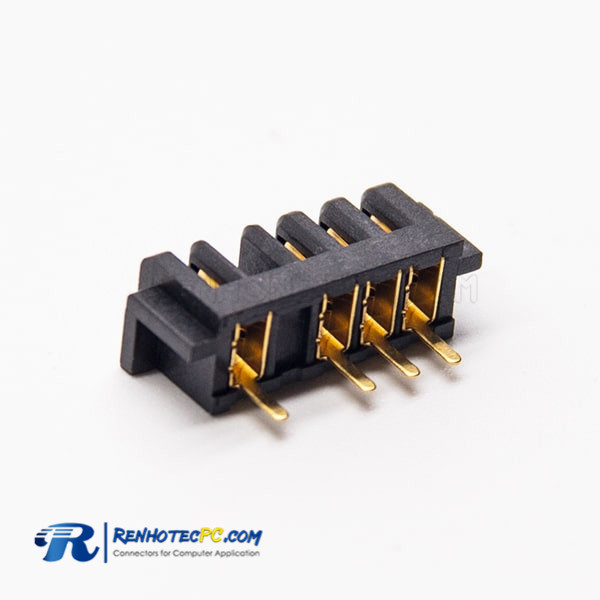

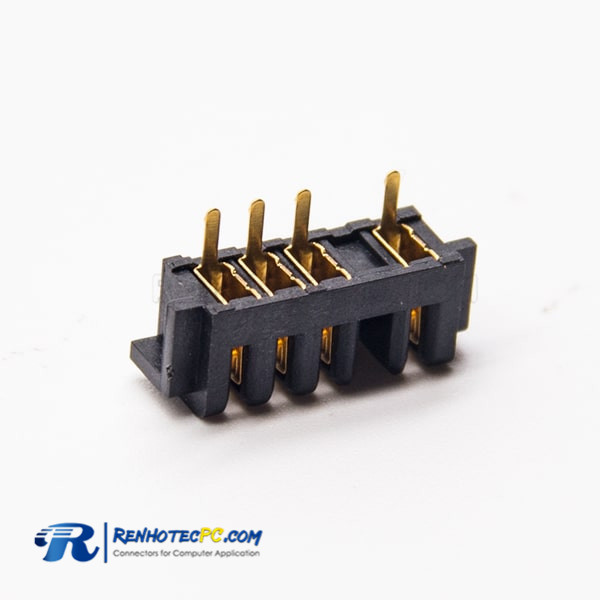

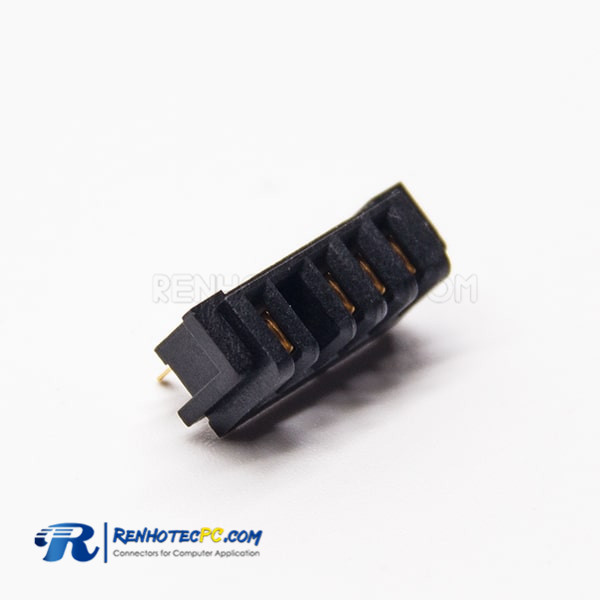

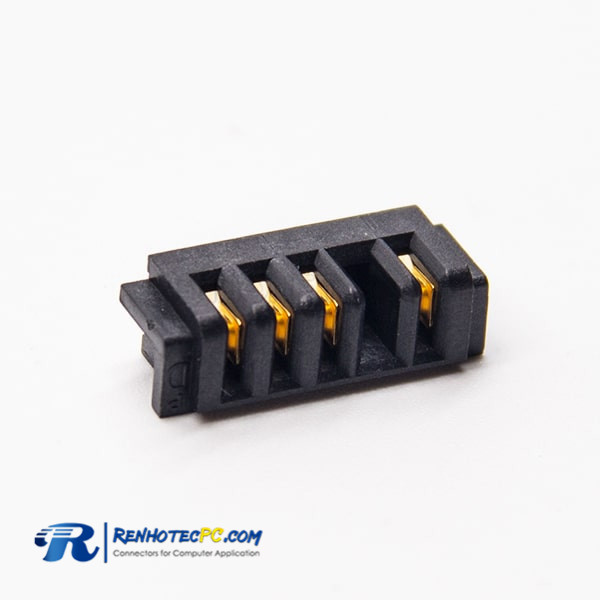

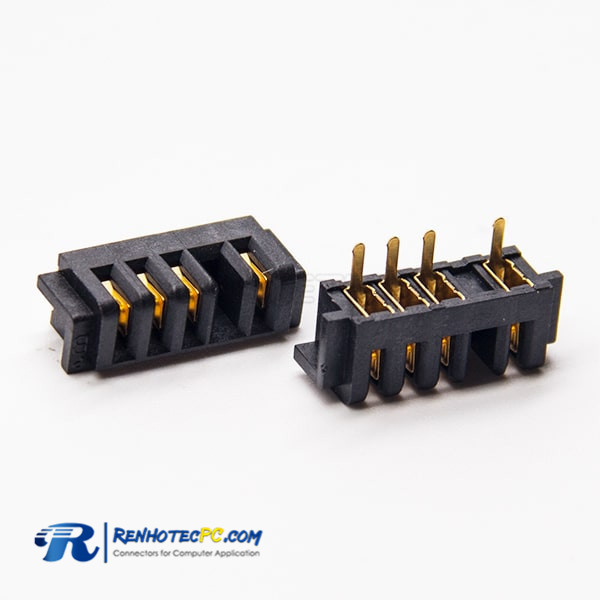

Female Battery Connector PH2.5 4 Pin Male Straight Left Fool-Proof Laptop Battery Connector

Part NO.:RHT-648-1017
Tags: Laptop Battery Connector ,Socket,4Pin,Female,Straight,PCB Mout,PH2.5,Golden

Features:

  • Headers available for 7.2, 10.8, and 12.0 volt rechargeable batteries
  • Receptacle connectors with solder tails or weld tabs
  • Consumer-friendly mating/unmating of battery
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement

Major Technical Characteristics

Rated current 7A
Rated voltage 30VDC
Mechanical characteristics PCB mounting fixed (without accessories)
Installation angle right angle
Connector Mounting Type Board Mount
Ambient temperature ≥ -30°C ~ + 70°C
Material UL 94V-0 rated thermoplastic
