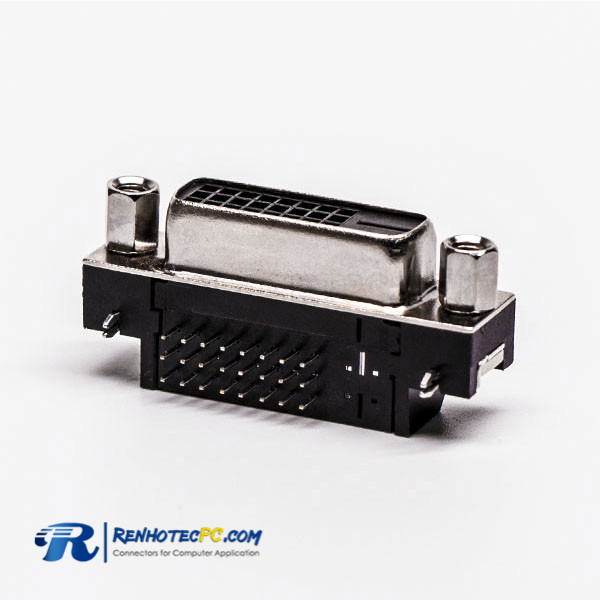

Black female DVI Right Angled Connector for PCB Mount

Part NO.:RHT-621-2106
Tags: DVI-D Connector,Female/Jack,24+1,Angled/90°,Black,Through Hole,PCB Mount,Nut

Features:

  • reliable and high-performance digital visual interface (DVI)
  • providing plug and play connectivity for ease of use
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement

Major Technical Characteristics

Contact Resistance 20 Millohms Max
Insulation Resistance 1000Megohms Min
Dielectric Withstanding 1000V DC
Dielectric Withstanding Voltage 500V DC RMS ±50V 60HZ
Current Rating 1.5AMP min
Extraction force 1KGf Min. 4KGf Max
Insertion force 4.5KGf Max
Operating Temperature -20°C~ + 85°C
