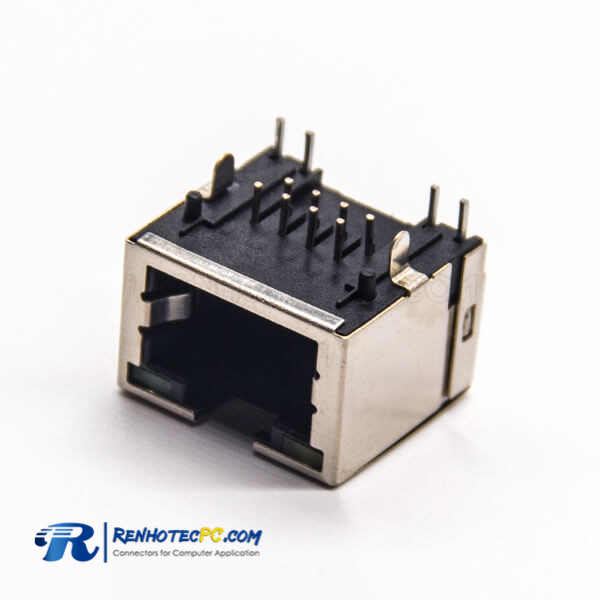

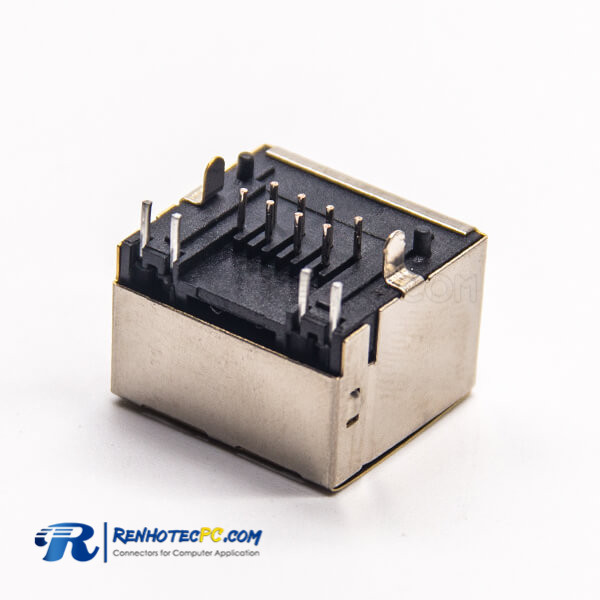

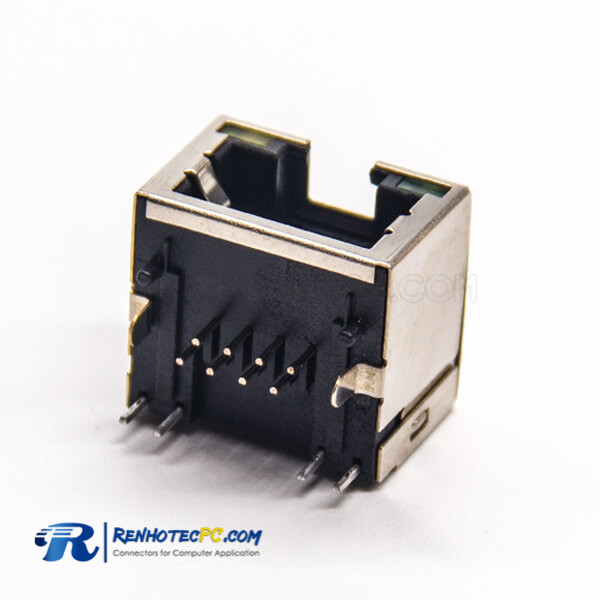

8p8c Socket RJ45 Modualr Connector Right Angled PCB Mount Shielded Through Hole

Part NO.:RHT-620-1229
Tags:RJ45 Jack,8P8C,Single Port,1*1,Angled,Gold,Through Hole,PCB Mount,Shielded,with LED,without Filtered

Features:

  • Comprehensive range for all application needs
  • Stackable side by side design
  • Supports wide variety of low-speed networking applications
  • Supports high-speed Gigabit Ethernet applications
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement

Major Technical Characteristics

Current rating 3A continuous
Insulation resistance 500MΩ min.
Dielectric withstanding voltage 1500V min.
Voltage rating 1000V rms
Mating force 5N to 20N
UNmating force 8N to 20N
Durability 10,000 mating cycles
Operating Temperature -40°C~ + 120°C
