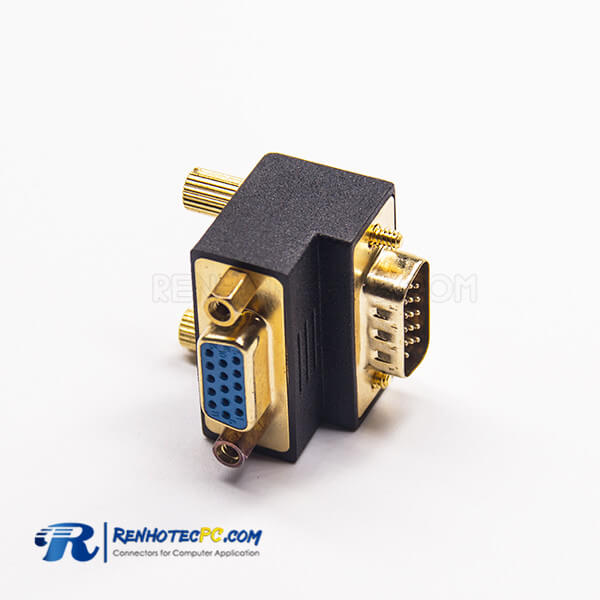

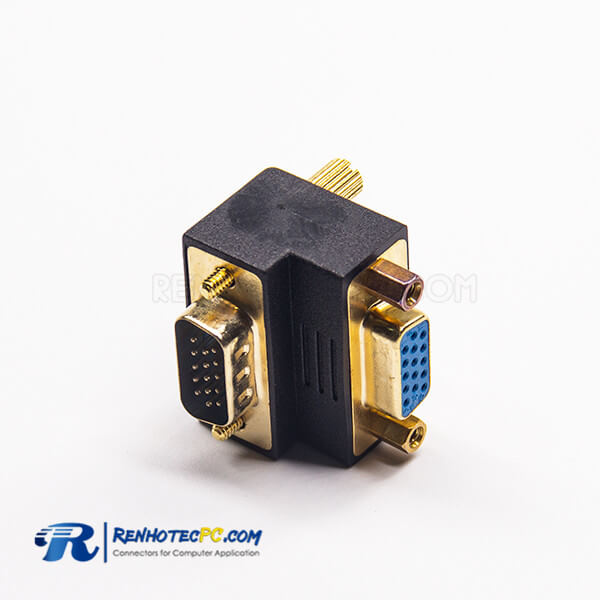

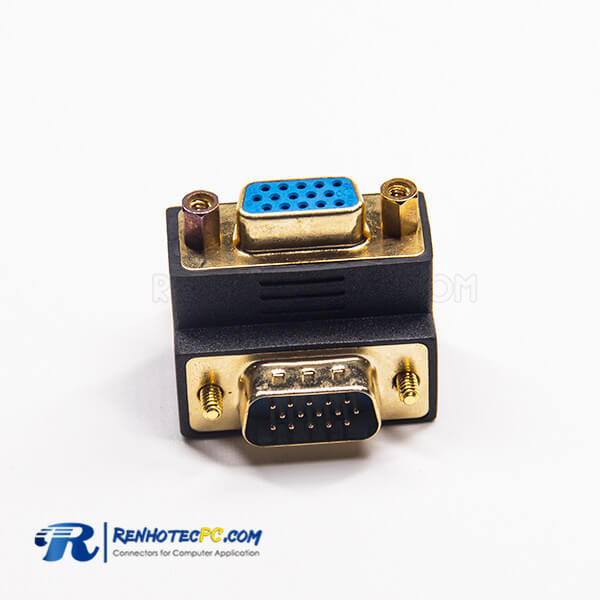

15 Pin VGA Gender Changer Male To Female Gold Right Angle High Density D-Sub

Part NO.:RHT-681-1278
Tags:D-Sub Adapter&Gender Changers,High Density D-Sub,male,15pin,High Density D-Sub,female,15pin,right angle,Gold

Features:

  • Inserts are flame-retardant thermoplastic
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement

Major Technical Characteristics

Voltage Rating 250V AC/ rms 50Hz
Withstanding Voltage 1000V AC/ rms 50Hz for one minute
Insulation Resistance 1000MΩ at 500V DC
Contact Resistance 20 mΩ max.
Single Contact Insertion Force 1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force 0.13 lb. (0.06 kg.) min.
Operating Temperature -67°F (-55°C) to +257°F (125°C)
