SCSI Connector

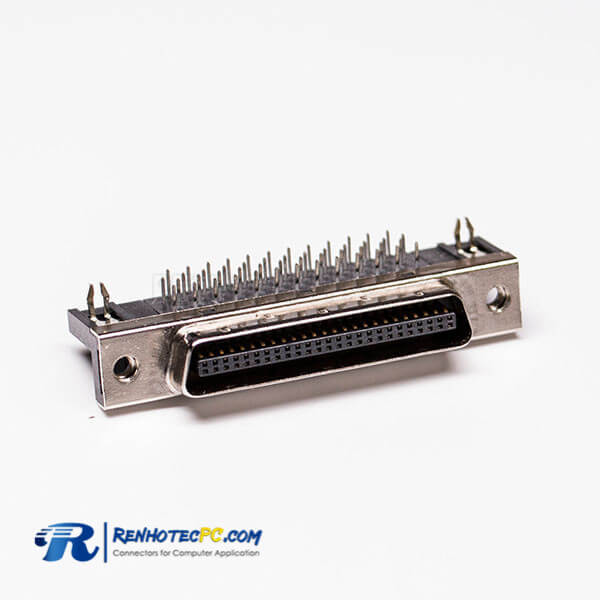

Compare 20-, 26- and 50-pin female SCSI connectors with right-angle, through-hole PCB mounting. Start with the required pin count, then check the mating geometry and board footprint.

Filter & Product Results

3 productsPage 1 of 1

Filter products

Features

These connectors share a right-angle orientation and harpoon retaining features, while pin count differs. The 20- and 26-pin models list a 1 A current rating and an operating temperature range of −55 to +105 °C; these ratings are not confirmed for the 50-pin model.

Selection Guidance

Identify the mating connector and pin count first. Compare contact layout, mating-face position, mounting-hole pattern and retention details against the board design. Check the selected model’s electrical ratings and temperature range separately; matching pin count alone does not establish interchangeability.

Frequently Asked Questions

Does the SCSI label confirm compatibility with my equipment?

No. Confirm the mating interface and pin assignment for the specific equipment. The category name does not establish equipment compatibility or a supported data rate.

Are dimensioned footprints available in these product details?

The available details identify the mounting style but do not include a dimensioned footprint. A connector drawing is needed to confirm contact spacing and mounting-hole dimensions before board layout.

What if I cannot identify the existing part?

Clear views of the mating face and PCB side can help identify a candidate. Confirm the candidate against a dimensioned connector drawing before selecting a replacement.

Need a configuration not shown?

Include the part number, mating connector, key dimensions and required quantity in your inquiry.
