D-SUB Connector

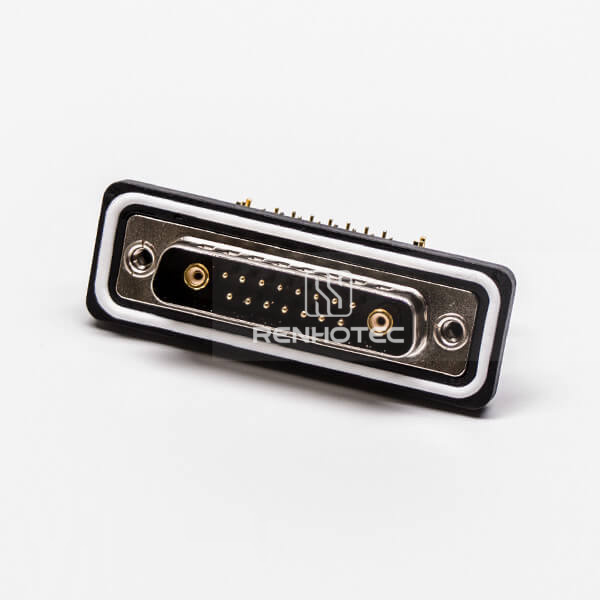

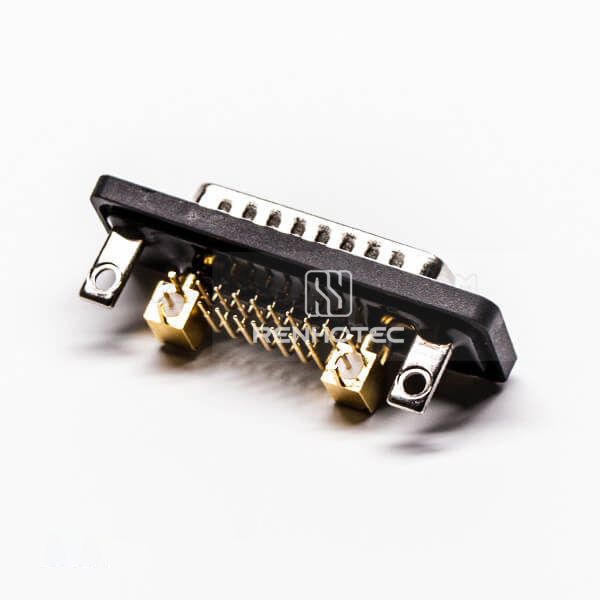

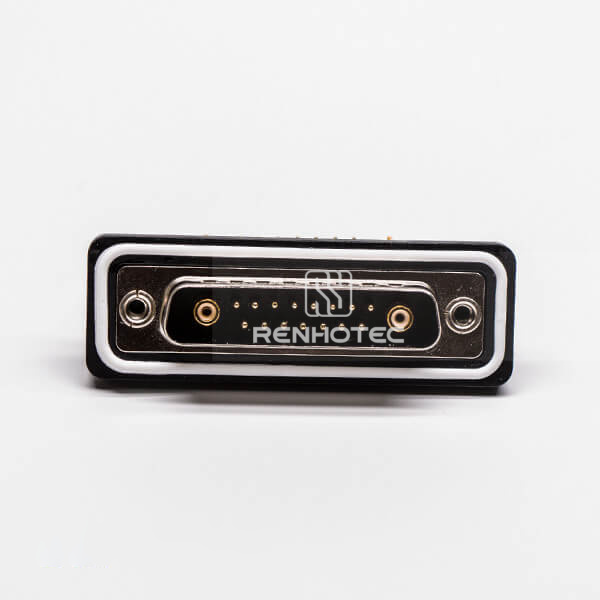

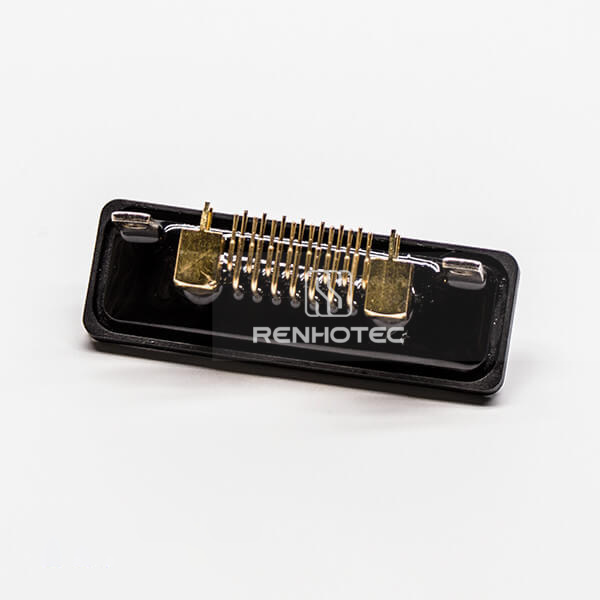

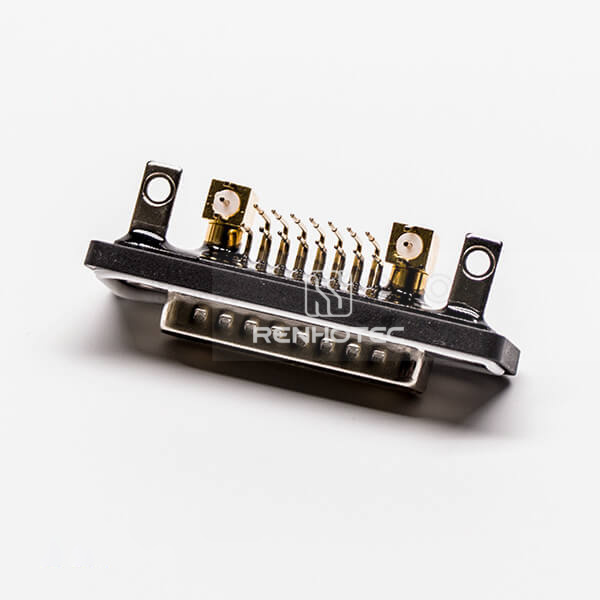

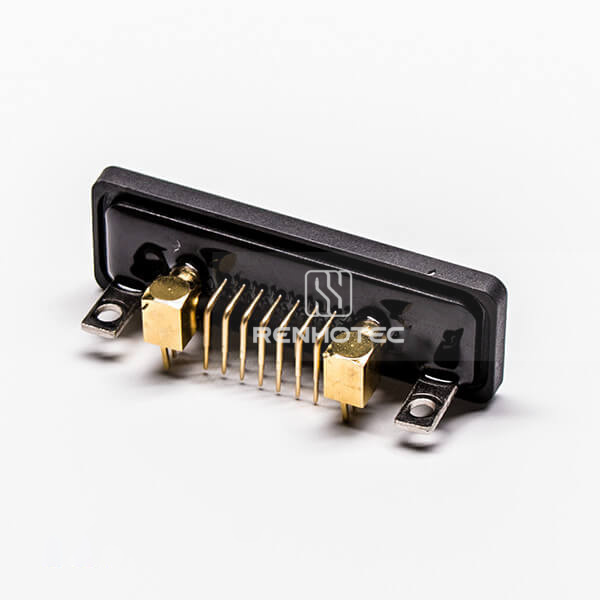

Waterproof D-SUB Coaxial for PCB Mount 17w2 Male Right Angle Connector

Public Part No. RHT-681-1171

Waterproof D-SUB Coaxial for PCB Mount 17w2 Male Right Angle Connector
Enlarge image
Waterproof D-SUB Coaxial for PCB Mount 17w2 Male Right Angle ConnectorWaterproof D-SUB Coaxial for PCB Mount 17w2 Male Right Angle ConnectorWaterproof D-SUB Coaxial for PCB Mount 17w2 Male Right Angle ConnectorWaterproof D-SUB Coaxial for PCB Mount 17w2 Male Right Angle ConnectorWaterproof D-SUB Coaxial for PCB Mount 17w2 Male Right Angle ConnectorWaterproof D-SUB Coaxial for PCB Mount 17w2 Male Right Angle Connector

Key specifications

Connector Type
D-SUB
Gender
Male
Orientation
Right Angle
Mounting Type
PCB Mount
Request QuoteFull specifications

Overview

17W2 male D-SUB connector with right-angle orientation and PCB mounting. It uses machined contacts. An interfacial seal is included.

Full Specifications

Electrical

Current Rating
7.5A
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V
Working voltage signal
125 V
Working Voltage
1000V

Mechanical

Connector Type
D-SUB
Gender
Male
Orientation
Right Angle
Mounting Type
PCB Mount
Contact configuration
17w2
Contact construction
Machined contacts
Seal construction
Interfacial seal
Extraction force
30N
Insertion force
30N

Environmental

Operating Temperature
-25 to 125 °C
