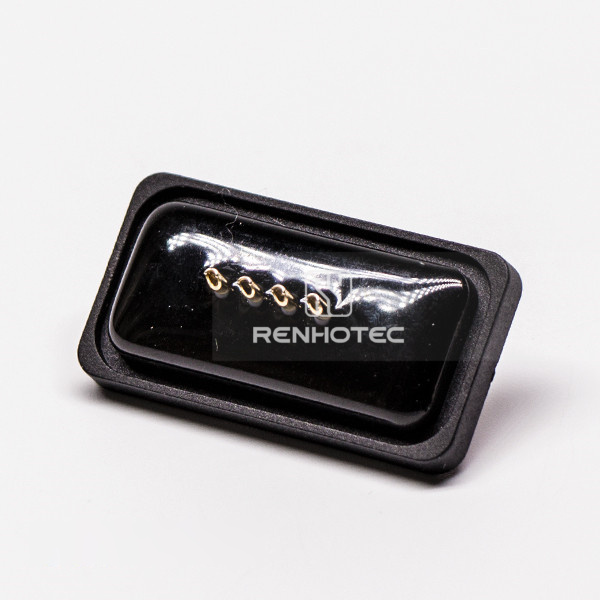

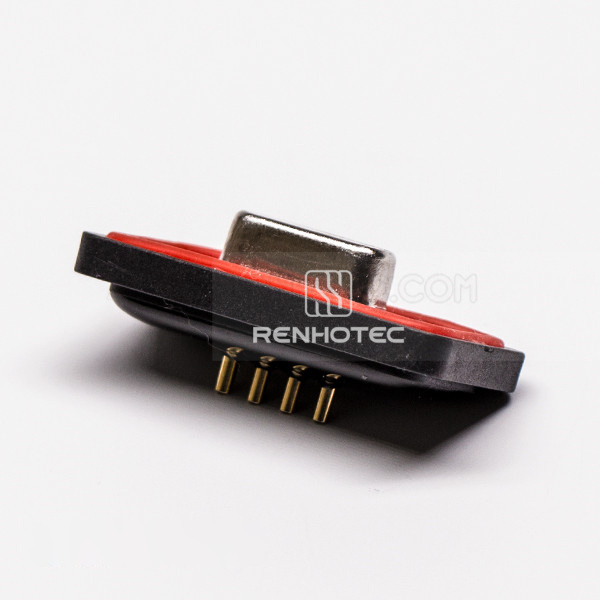

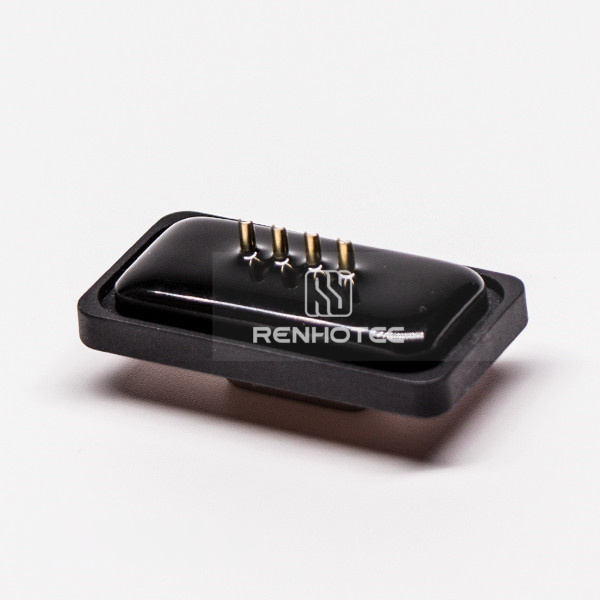

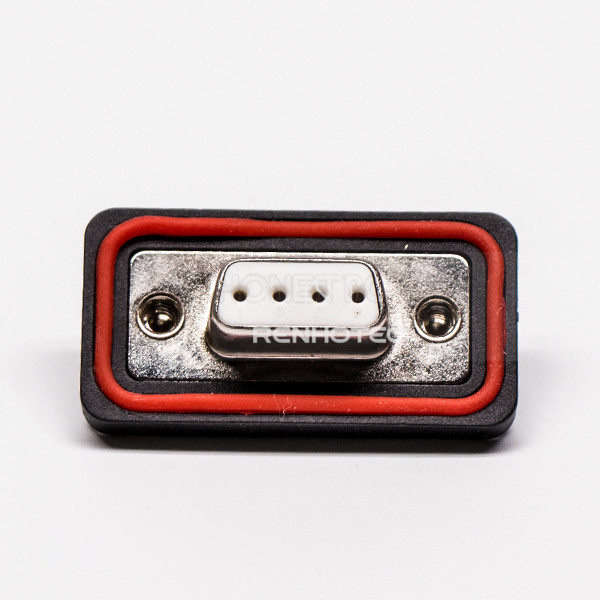

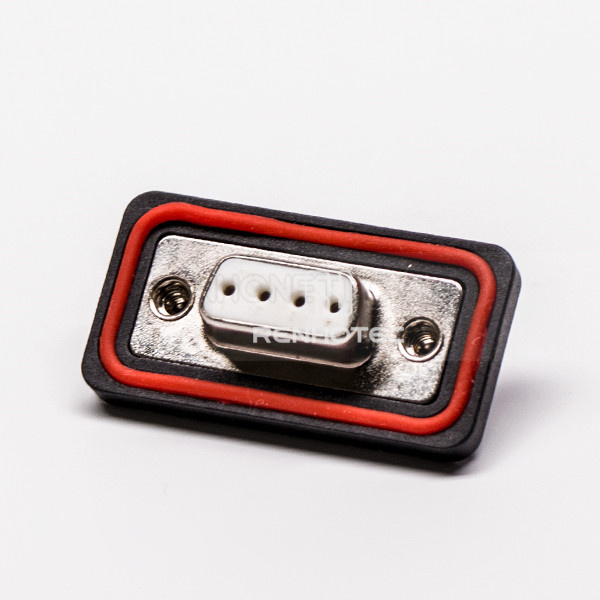

Waterproof D-SUB 4 Pin Female Straight Machined Connector for Cable

Public Part No. RHT-681-1185

Waterproof D-SUB 4 Pin Female Straight Machined Connector for Cable
Enlarge image
Waterproof D-SUB 4 Pin Female Straight Machined Connector for CableWaterproof D-SUB 4 Pin Female Straight Machined Connector for CableWaterproof D-SUB 4 Pin Female Straight Machined Connector for CableWaterproof D-SUB 4 Pin Female Straight Machined Connector for CableWaterproof D-SUB 4 Pin Female Straight Machined Connector for Cable

Key specifications

Connector Type
Cable Connector / D-SUB
Pin Count
4 Pin
Gender
Female
Orientation
Straight
Termination Type
Solder Type
Request QuoteFull specifications

Overview

4-pin female D-SUB connector with straight orientation and solder termination. It uses machined contacts. An interfacial seal is included.

Full Specifications

Electrical

Current Rating
7.5A
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V
Working voltage signal
125 V
Working Voltage
1000V

Mechanical

Connector Type
Cable Connector / D-SUB
Pin Count
4 Pin
Gender
Female
Orientation
Straight
Termination Type
Solder Type
Contact construction
Machined contacts
Seal construction
Interfacial seal
Extraction force
30N
Insertion force
30N

Environmental

Waterproof Rating
IP67
Operating Temperature
-25 to 125 °C
