D-SUB Connector

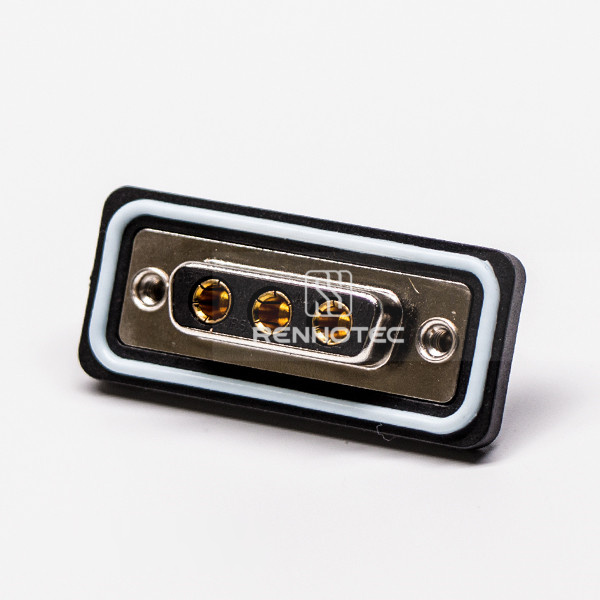

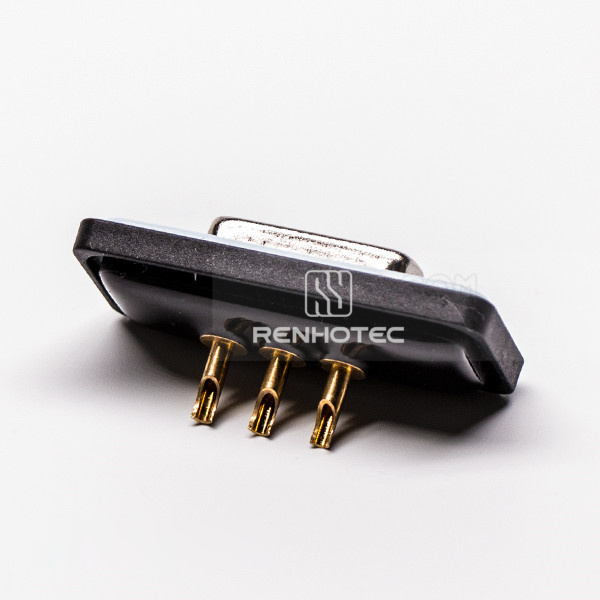

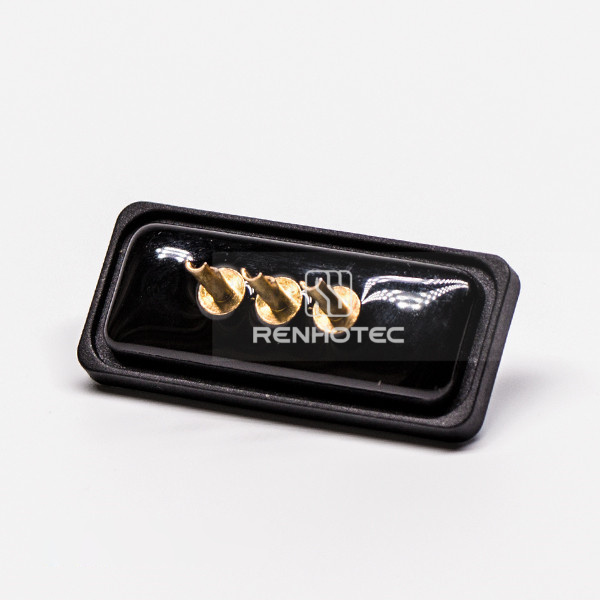

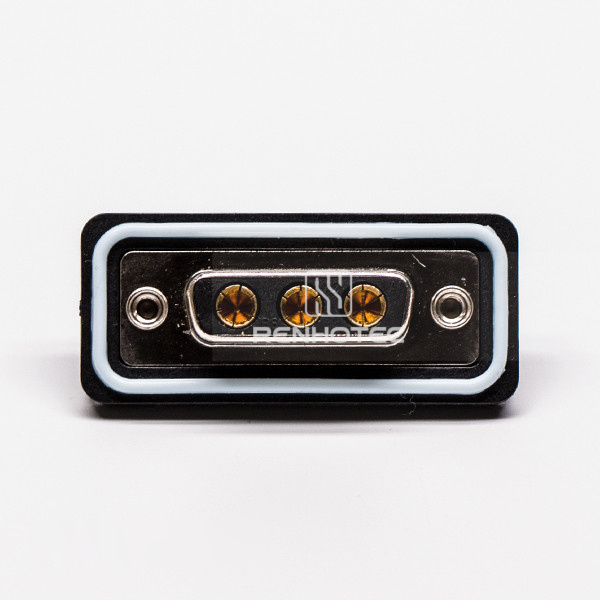

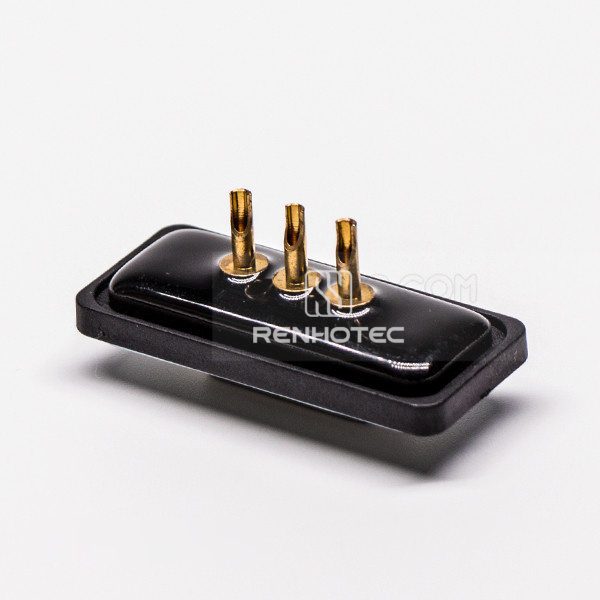

Waterproof D-SUB 3w3 Straight Female Machined Solder Type

Part No.RHT-681-1183
3W3 female D-SUB connector with straight orientation and solder termination.
  • Connector TypeCable Connector / D-SUB
  • GenderFemale
  • OrientationStraight

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
7.5A
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V
Working voltage signal
125 V
Working Voltage
1000V

Connection

Connector Type
Cable Connector / D-SUB

Mechanical

Gender
Female
Orientation
Straight
Termination Type
Solder Type
Contact configuration
3w3
Contact construction
Machined contacts
Seal construction
Interfacial seal
Extraction force
30N
Insertion force
30N

Environmental

Waterproof Rating
IP67
Operating Temperature
-25 to 125 °C

Before you specify

Selection guide

3W3 female D-SUB connector with straight orientation and solder termination. It uses machined contacts. An interfacial seal is included.

RHT-681-1183
