D-SUB Connector

Waterproof D-SUB 13w3 Connector Female Power 90° hough Hole

Public Part No. RHT-681-1189

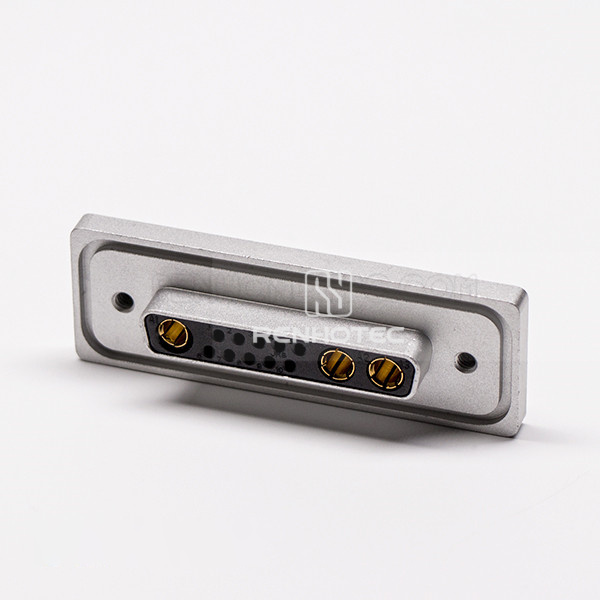

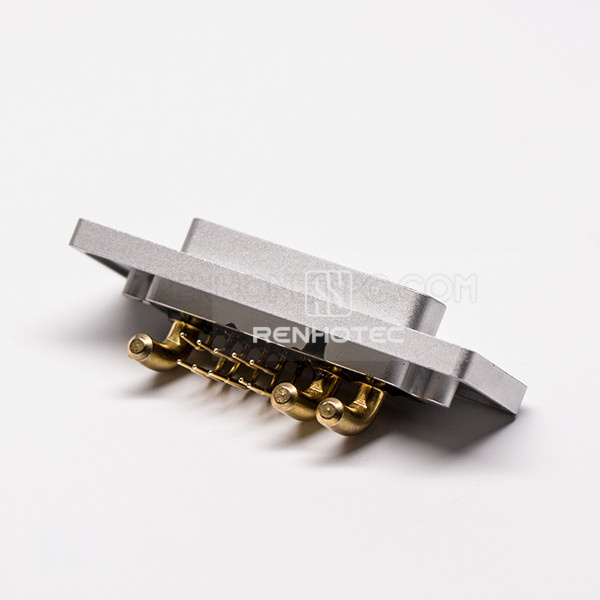

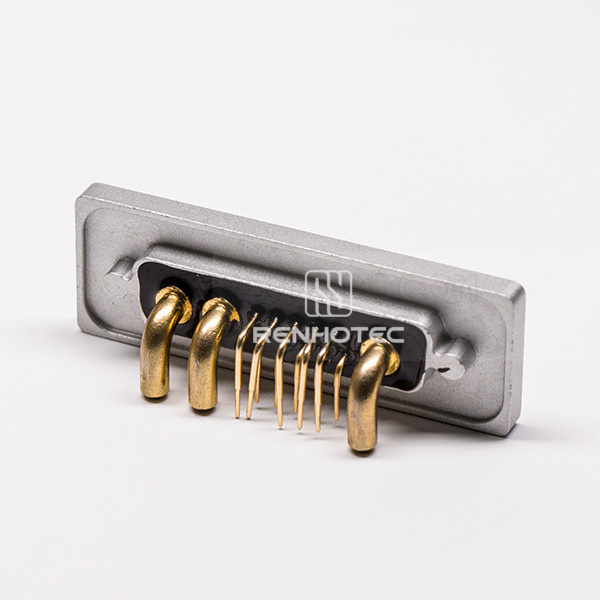

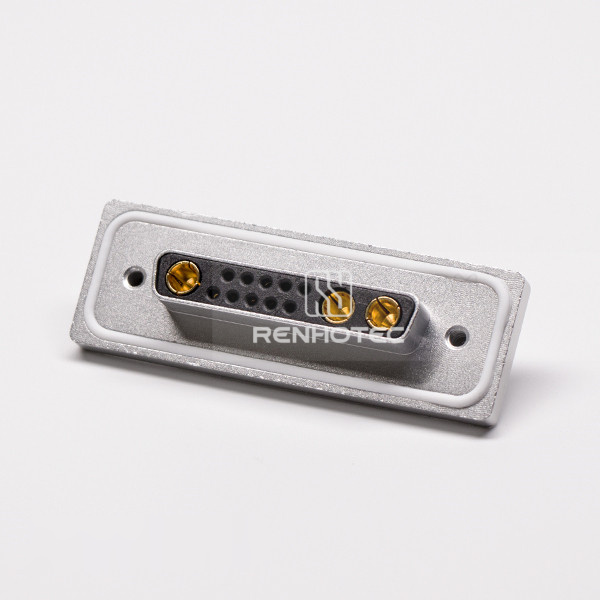

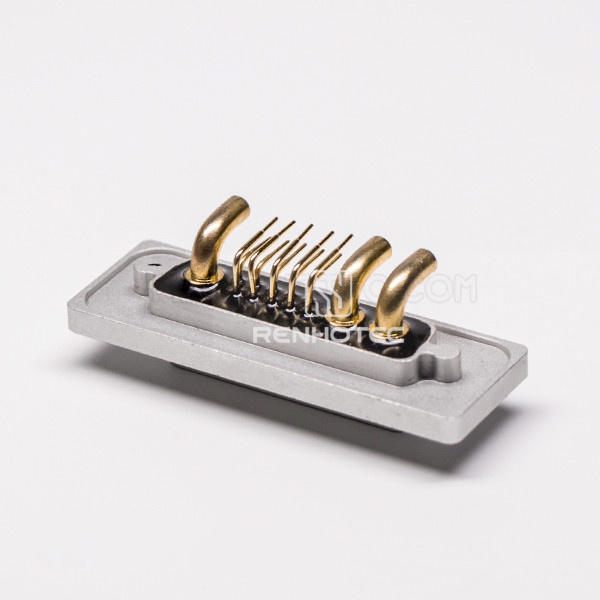

Waterproof D-SUB 13w3 Connector Female Power 90° hough Hole
Enlarge image
Waterproof D-SUB 13w3 Connector Female Power 90° hough HoleWaterproof D-SUB 13w3 Connector Female Power 90° hough HoleWaterproof D-SUB 13w3 Connector Female Power 90° hough HoleWaterproof D-SUB 13w3 Connector Female Power 90° hough HoleWaterproof D-SUB 13w3 Connector Female Power 90° hough Hole

Key specifications

Connector Type
Power D-SUB
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Request QuoteFull specifications

Overview

13W3 female D-SUB connector with right-angle orientation and through-hole PCB mounting. It uses machined contacts. An interfacial seal is included.

Full Specifications

Electrical

Current Rating
7.5A
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V
Working voltage signal
125 V
Working Voltage
1000V

Mechanical

Connector Type
Power D-SUB
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Contact configuration
13w3
Contact construction
Machined contacts
Seal construction
Interfacial seal
Extraction force
30N
Insertion force
30N

Environmental

Operating Temperature
-25 to 125 °C
