Cable Assembly

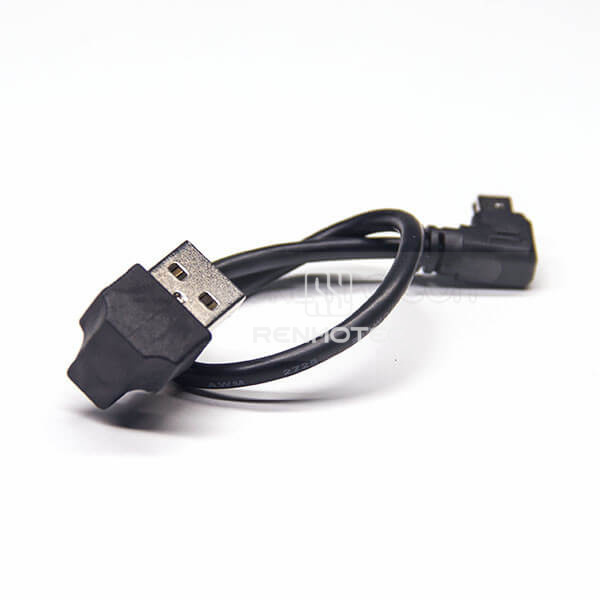

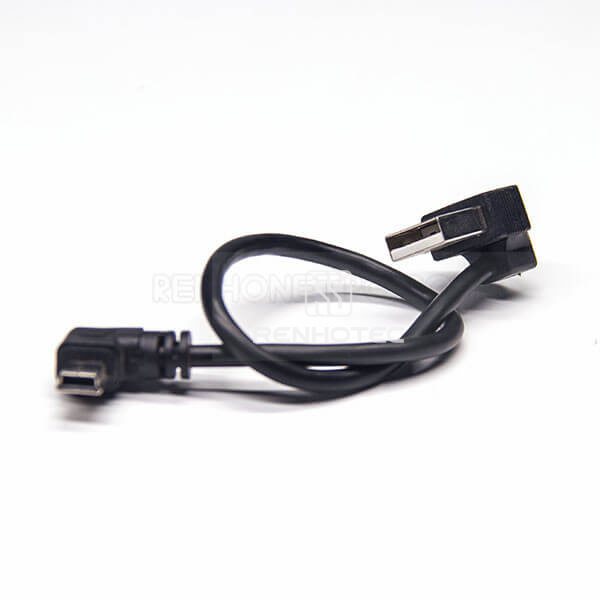

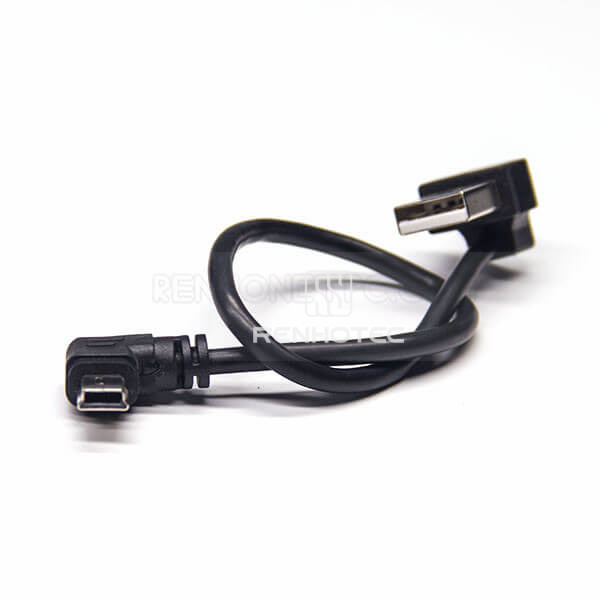

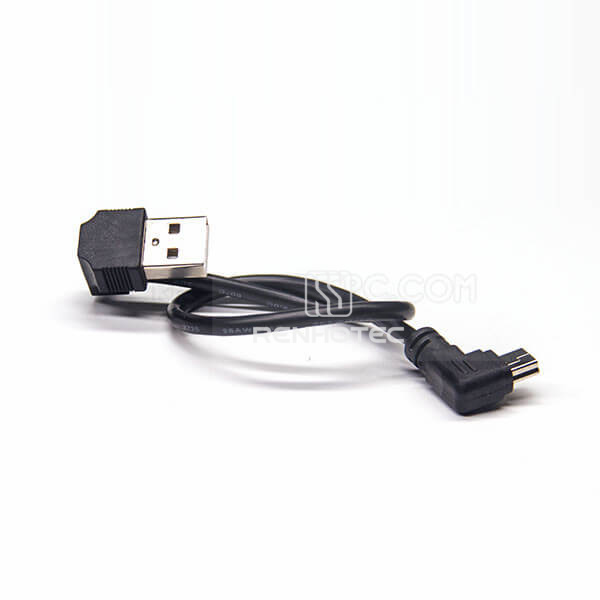

USB Type-A Male to Mini USB Male Angled Cable

USB cable with a down-angle Type-A male connector and a left-angle Mini USB male connector. Both ends are male.
  • Connector TypeMini USB / Type A / USB2.0
  • Current Rating3A continuous
  • Insulation resistance500MΩ min.

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
3A continuous
Insulation resistance
500MΩ min.
Dielectric withstanding voltage
1500V min.

Connection

Connector Type
Mini USB / Type A / USB2.0

Mechanical

Orientation detail
Down Angle / Left Angle
Cable length
1 m
Cable outside diameter
3.5 mm
Mating force
5N to 20N
Unmating Force
8N to 20N
Durability
10,000 mating cycles
Connector ends
USB Type A Male / Mini USB Male

Material

Conductor material
Copper
Cable jacket material
PVC

Environmental

Operating Temperature
-40 to 120 °C

Before you specify

Selection guide

USB cable with a down-angle Type-A male connector and a left-angle Mini USB male connector. Both ends are male.
