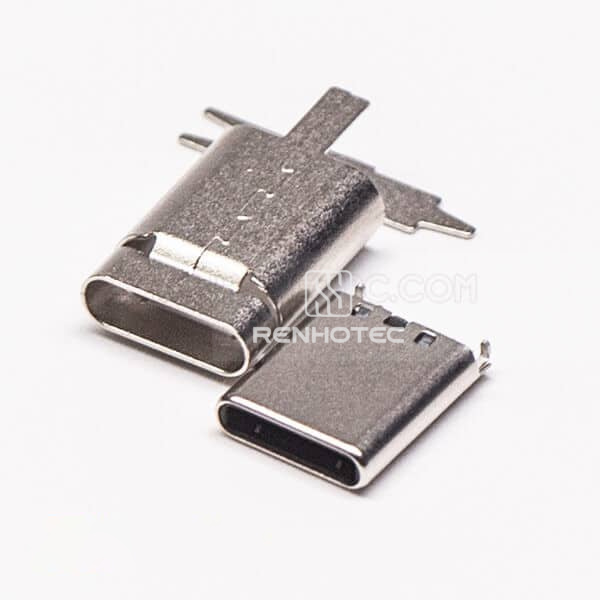

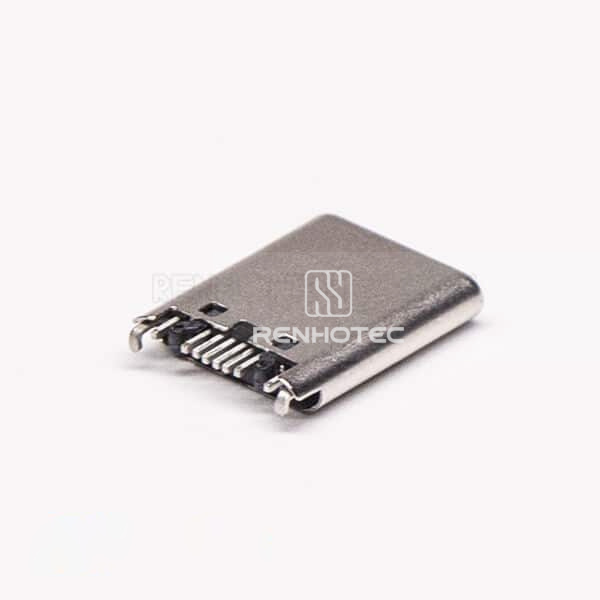

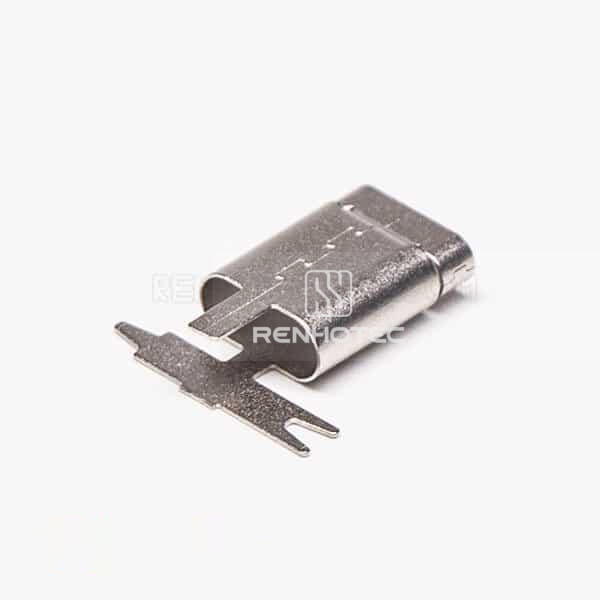

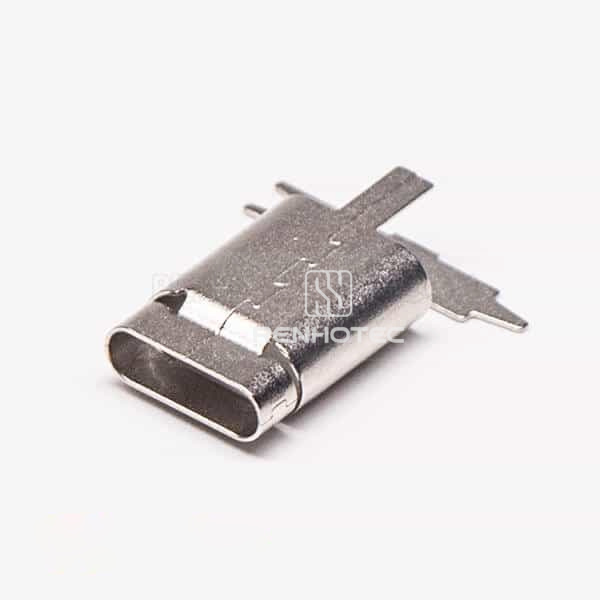

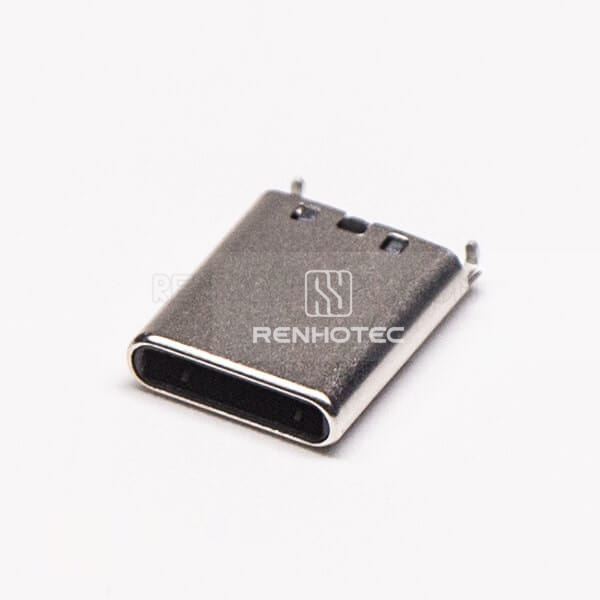

USB Shell Connectors Type C 180 Degree

Public Part No. RHT-692-1306

USB Shell Connectors Type C 180 Degree
Enlarge image
USB Shell Connectors Type C 180 DegreeUSB Shell Connectors Type C 180 DegreeUSB Shell Connectors Type C 180 DegreeUSB Shell Connectors Type C 180 DegreeUSB Shell Connectors Type C 180 Degree

Key specifications

Connector Type
Type C Shell / Type C
Orientation
Straight
Request QuoteFull specifications

Overview

Straight USB Type-C connector shell. Match the shell geometry and retention details to the intended connector assembly.

Full Specifications

Electrical

Current Rating
5A
Voltage Rating
5V AC
Contact Resistance
40 milliohms max
Insulation Resistance
100 megohms
Withstanding Voltage
100V AC

Mechanical

Connector Type
Type C Shell / Type C
Orientation
Straight
Connection feature
Reversible plug and cable orientation
Mating force
5N to 20N
Unmating Force
8N to 20N
Durability
10,000 mating cycles

Environmental

Operating Temperature
-30 to 85 °C
