Cable Assembly

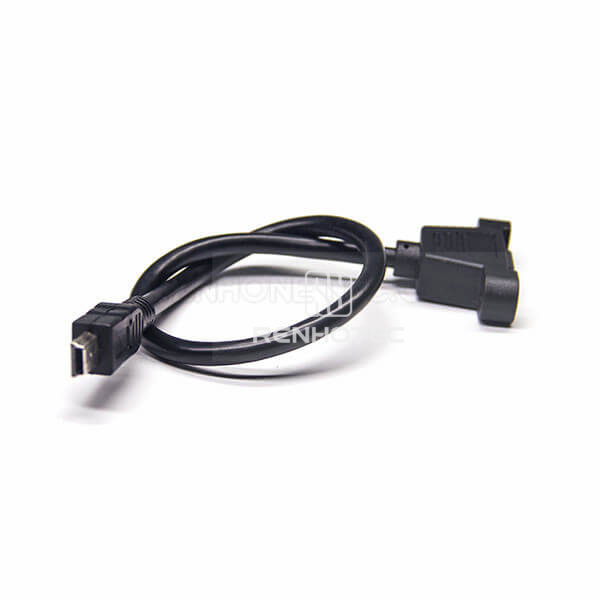

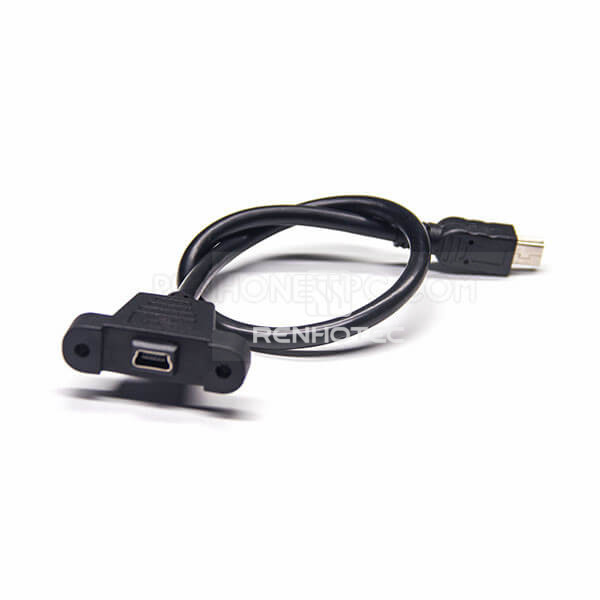

Mini USB Male to Mini USB Female Straight Cable

Public Part No. RHT-606-0140

Mini USB Male to Mini USB Female Straight Cable
Enlarge image
Mini USB Male to Mini USB Female Straight CableMini USB Male to Mini USB Female Straight Cable

Key specifications

Connector Type
Mini USB / USB2.0
Orientation
Straight
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
3A continuous
Insulation resistance
500MΩ min.
Dielectric withstanding voltage
1500V min.

Mechanical

Connector Type
Mini USB / USB2.0
Orientation
Straight
Cable length
1 m
Cable outside diameter
3.5 mm
Mating force
5N to 20N
Unmating Force
8N to 20N
Durability
10,000 mating cycles
Gender at connector ends
Mini USB: Male / Female

Material

Conductor material
Copper
Cable jacket material
PVC

Environmental

Operating Temperature
-40 to 120 °C

Connector requirement
