USB Connector

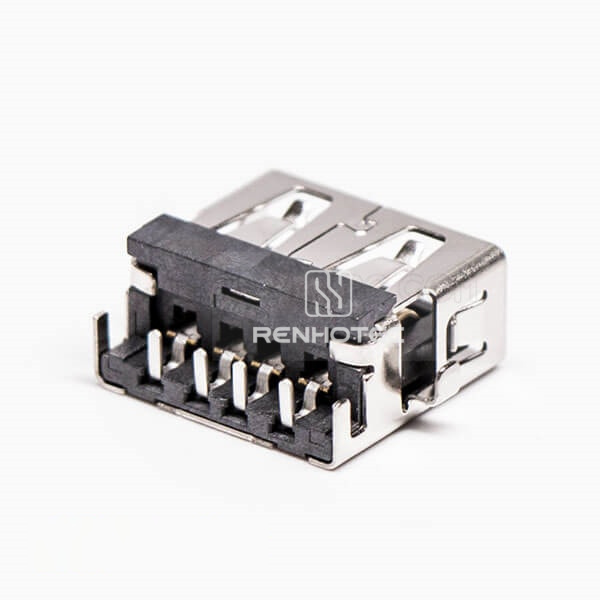

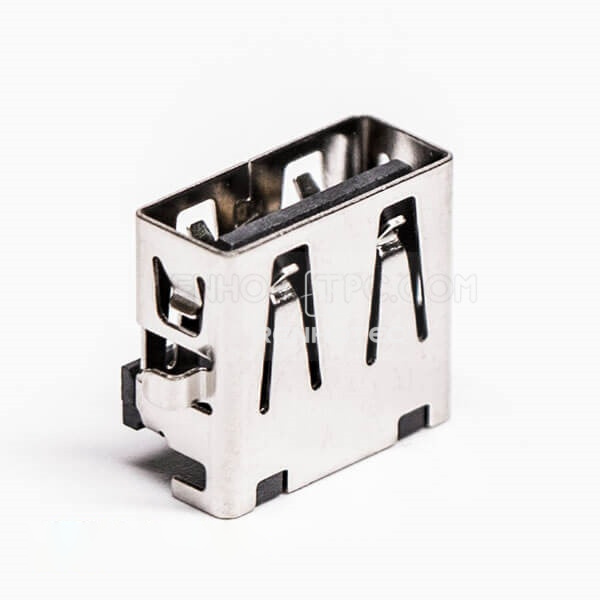

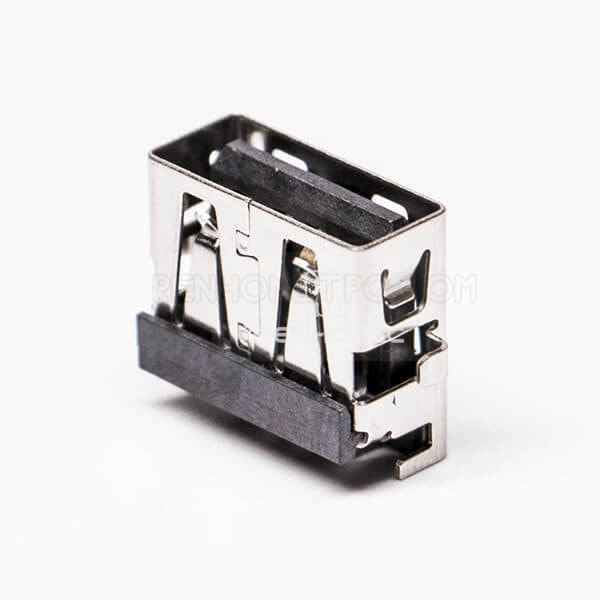

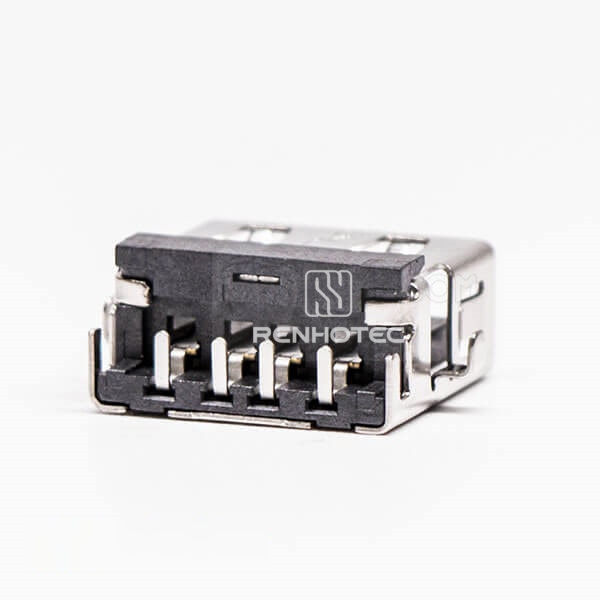

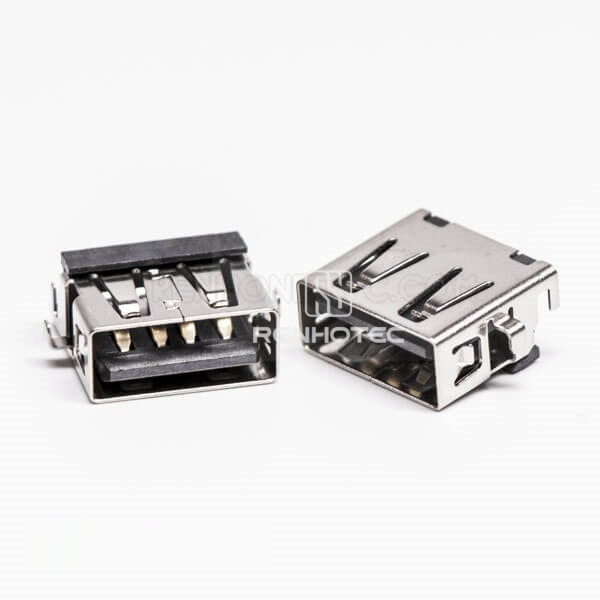

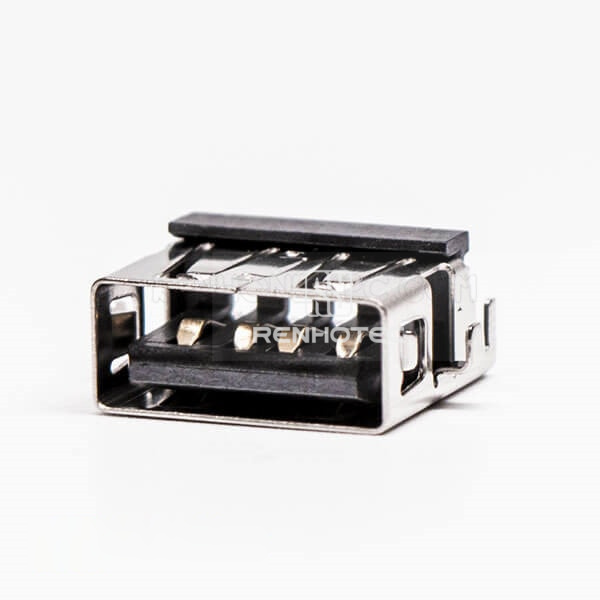

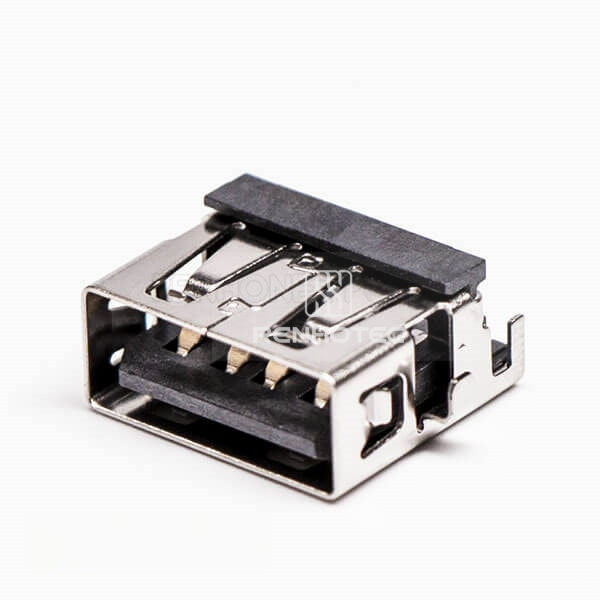

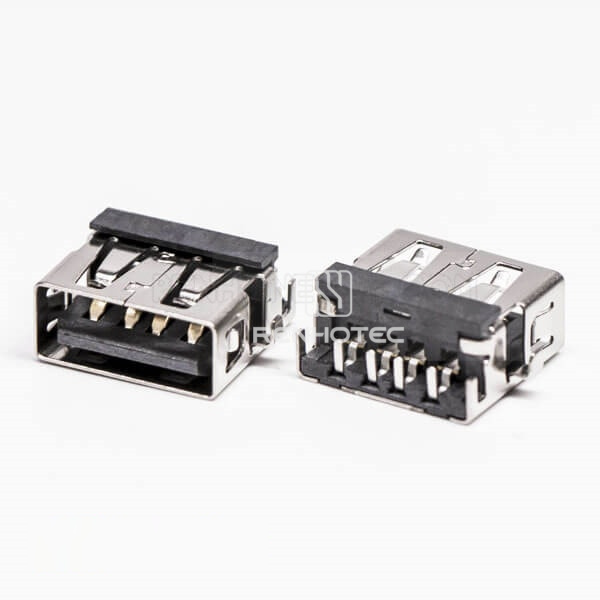

USB Female Right Angle Type A Offset Type

Public Part No. RHT-692-1337

USB Female Right Angle Type A Offset Type
Enlarge image
USB Female Right Angle Type A Offset TypeUSB Female Right Angle Type A Offset TypeUSB Female Right Angle Type A Offset TypeUSB Female Right Angle Type A Offset TypeUSB Female Right Angle Type A Offset TypeUSB Female Right Angle Type A Offset TypeUSB Female Right Angle Type A Offset TypeUSB Female Right Angle Type A Offset Type

Key specifications

Connector Type
Type A / USB2.0
Gender
Female
Orientation
Right Angle
Mounting Type
DIP / PCB Mount / SMT
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
1A max.
Voltage Rating
30V AC RMS
Data rate
480 Mbps
Contact Resistance
30 milliohms max
Insulation Resistance
1000 megohms min
Dielectric Withstanding Voltage
500 V DC/1min

Mechanical

Connector Type
Type A / USB2.0
Gender
Female
Orientation
Right Angle
Mounting Type
DIP / PCB Mount / SMT
Connection feature
Hot plugging
Mating force
3.57 kgf max
Unmating Force
1.0 kgf min

Material

Color
Black

Environmental

Operating Temperature
-40 to 85 °C
