Cable Assembly

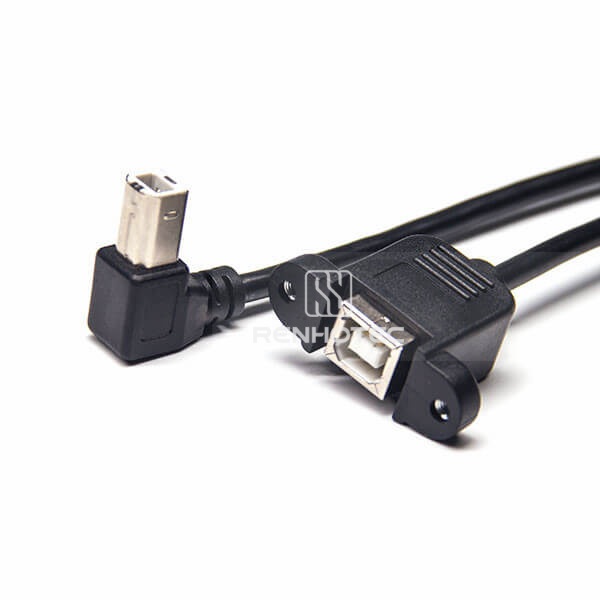

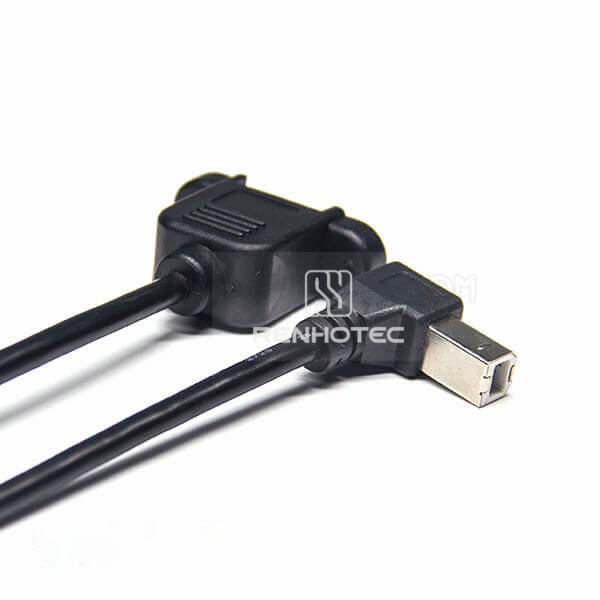

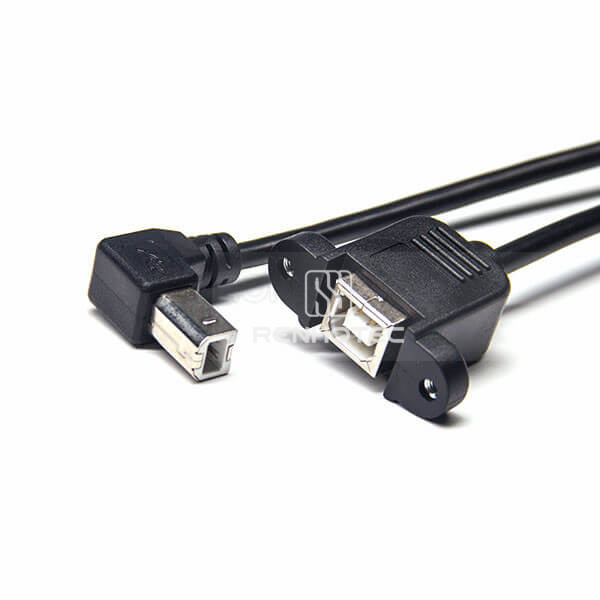

USB Connector Type B Male to Female Panel Mount OTG Cable

Public Part No. RHT-606-0125

USB Connector Type B Male to Female Panel Mount OTG Cable
Enlarge image
USB Connector Type B Male to Female Panel Mount OTG CableUSB Connector Type B Male to Female Panel Mount OTG CableUSB Connector Type B Male to Female Panel Mount OTG CableUSB Connector Type B Male to Female Panel Mount OTG Cable

Key specifications

Connector Type
Type B / USB2.0
Mounting Type
Panel Mount
Request QuoteFull specifications

Overview

USB 2.0 Type-B male-to-female panel-mount cable. The cable is 1 m long with a 3.5 mm outside diameter.

Full Specifications

Electrical

Current Rating
3A continuous
Insulation resistance
500MΩ min.
Dielectric withstanding voltage
1500V min.

Mechanical

Connector Type
Type B / USB2.0
Mounting Type
Panel Mount
Cable length
1 m
Cable outside diameter
3.5 mm
Mating force
5N to 20N
Unmating Force
8N to 20N
Durability
10,000 mating cycles
Gender at connector ends
Female / Male
Orientation at connector ends
Straight / Right Angle

Material

Conductor material
Copper
Cable jacket material
PVC

Environmental

Operating Temperature
-40 to 120 °C
