Cable Assembly

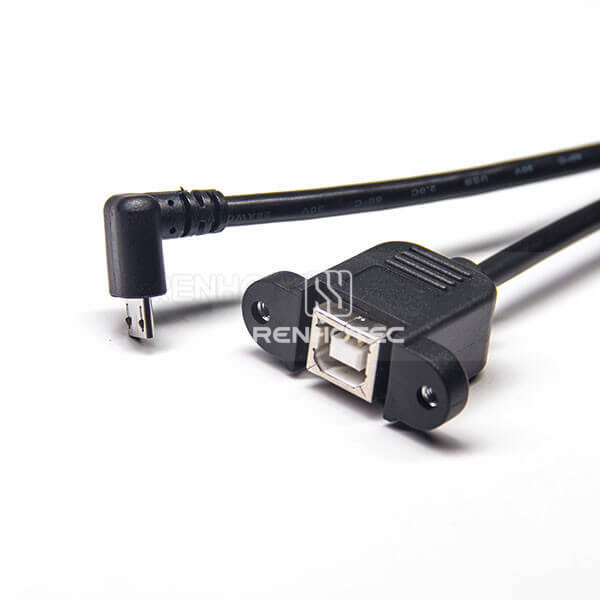

USB Cable with Screw Hole Type B Female to Micro USB Angled Male
USB-B female connector with screw holes to Micro USB angled male cable.
- Connector TypeType B / Micro USB / USB2.0
- Current Rating3A continuous
- Insulation resistance500MΩ min.
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Current Rating
- 3A continuous
- Insulation resistance
- 500MΩ min.
- Dielectric withstanding voltage
- 1500V min.
Connection
- Connector Type
- Type B / Micro USB / USB2.0
Mechanical
- Micro USB orientation
- Angled
- Cable length
- 1 m
- Cable outside diameter
- 3.5 mm
- Mating force
- 5N to 20N
- Unmating Force
- 8N to 20N
- Durability
- 10,000 mating cycles
- Gender at connector ends
- Female / Male
Material
- Conductor material
- Copper
- Cable jacket material
- PVC
Environmental
- Operating Temperature
- -40 to 120 °C
Before you specify
Selection guide
USB-B female connector with screw holes to Micro USB angled male cable.
RHT-606-0146
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
USB Cable with Screw Hole Type B Female to Micro USB Angled Male- Product family
- Cable Assembly
- Public Part No.
- RHT-606-0146
