Cable Assembly

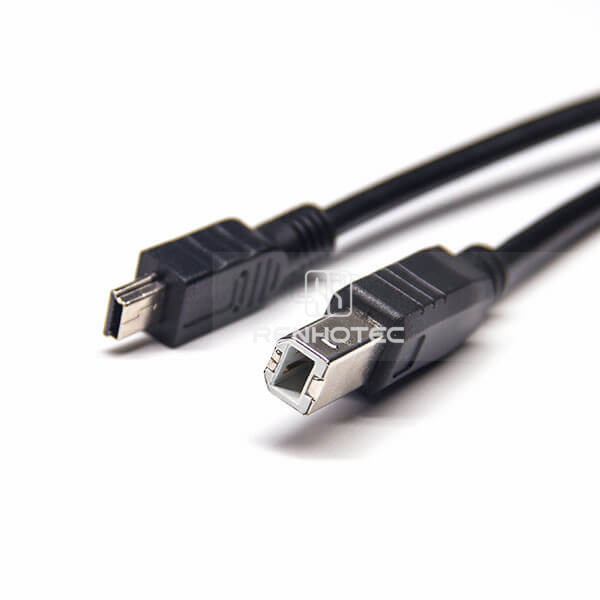

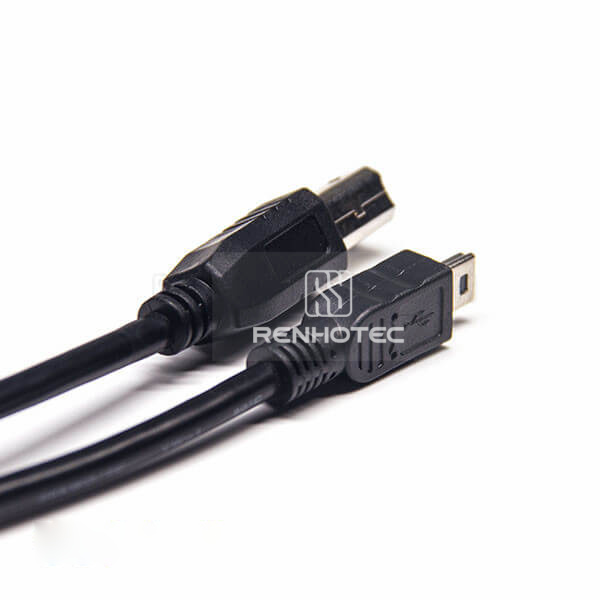

USB B Male 180 Degree to Mini USB Straight USB 2.0 Cable
- Connector TypeMini USB / Type B / USB2.0
- GenderMale
- OrientationStraight
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Current Rating
- 3A continuous
- Insulation resistance
- 500MΩ min.
- Dielectric withstanding voltage
- 1500V min.
Connection
- Connector Type
- Mini USB / Type B / USB2.0
Mechanical
- Gender
- Male
- Orientation
- Straight
- Cable length
- 1 m
- Cable outside diameter
- 3.5 mm
- Mating force
- 5N to 20N
- Unmating Force
- 8N to 20N
- Durability
- 10,000 mating cycles
Material
- Conductor material
- Copper
- Cable jacket material
- PVC
Environmental
- Operating Temperature
- -40 to 120 °C
Before you specify
Selection guide
USB 2.0 Type-B male to Mini USB male cable with straight connectors. The cable is 1 m long with a 3.5 mm outside diameter.
RHT-606-0138
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
USB B Male 180 Degree to Mini USB Straight USB 2.0 Cable- Product family
- Cable Assembly
- Public Part No.
- RHT-606-0138
