Cable Assembly

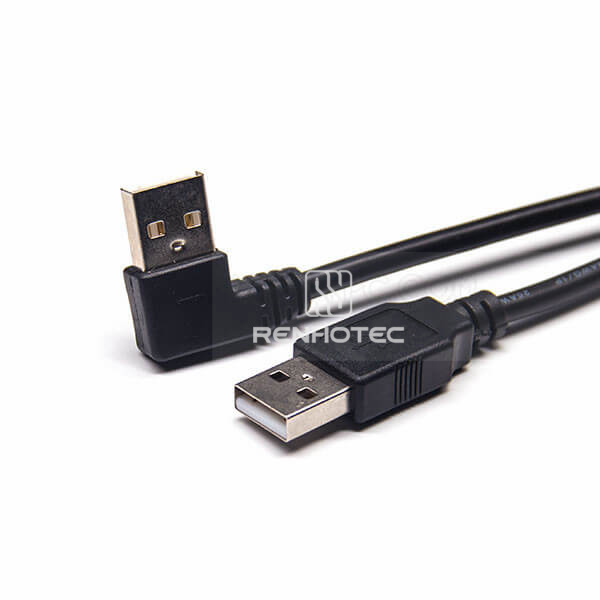

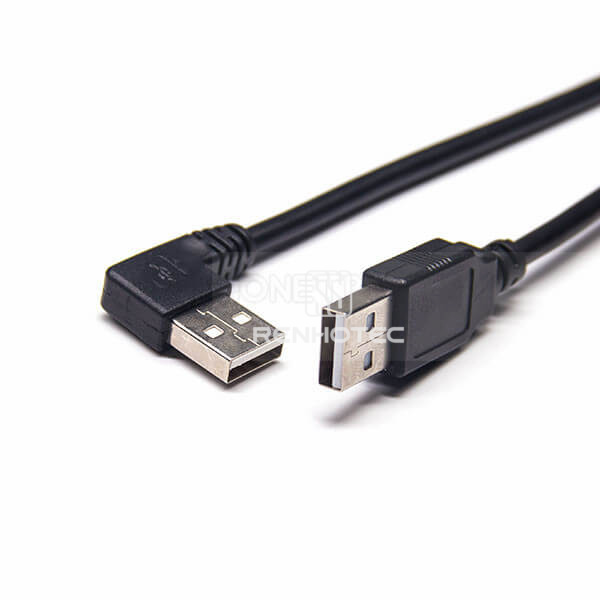

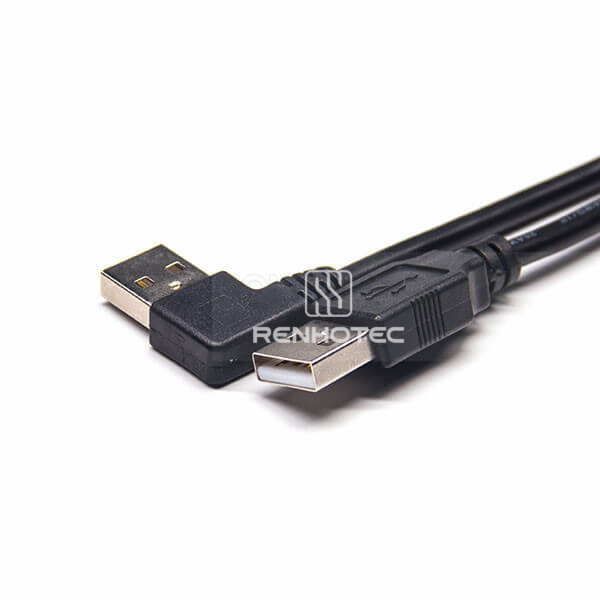

USB A Male Right Angle to Straight Male 2.0 USB Black Extension Cable

Part No.RHT-606-0108
Black USB 2.0 Type-A right-angle male to straight male cable.
  • Connector TypeType A / USB2.0
  • GenderMale
  • Current Rating3A continuous

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
3A continuous
Insulation resistance
500MΩ min.
Dielectric withstanding voltage
1500V min.

Connection

Connector Type
Type A / USB2.0

Mechanical

Gender
Male
Cable length
1 m
Cable outside diameter
3.5 mm
Mating force
5N to 20N
Unmating Force
8N to 20N
Durability
10,000 mating cycles
Orientation at connector ends
Right Angle / Straight

Material

Color
Black
Conductor material
Copper
Cable jacket material
PVC

Environmental

Operating Temperature
-40 to 120 °C

Before you specify

Selection guide

Black USB 2.0 Type-A right-angle male to straight male cable. The cable is 1 m long with a 3.5 mm outside diameter.

RHT-606-0108
