USB Connector

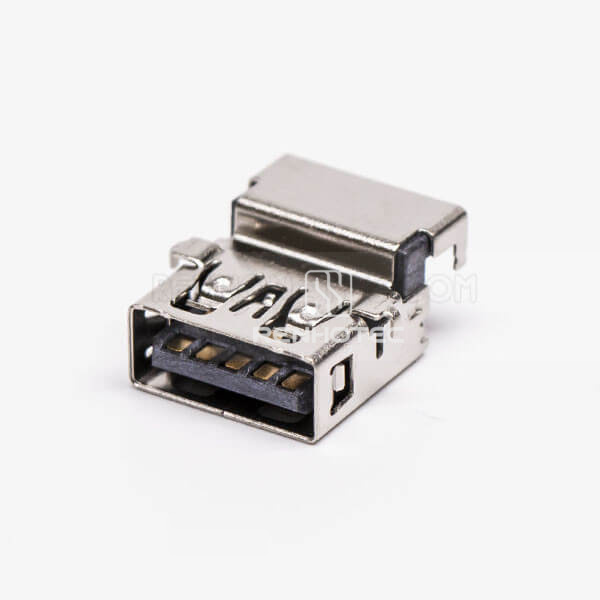

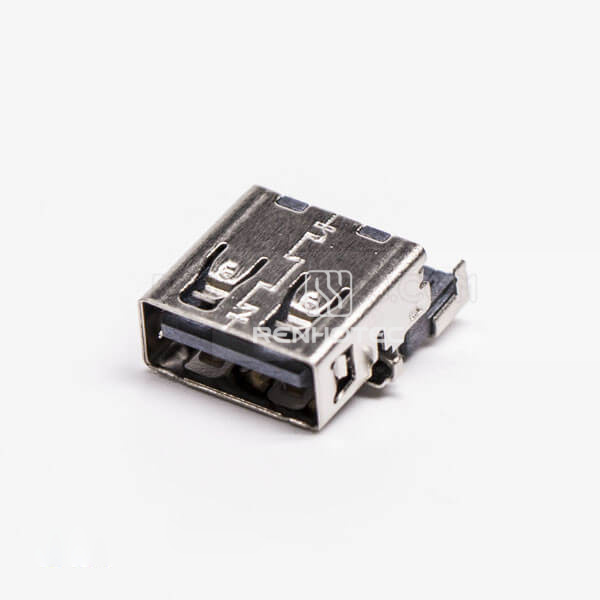

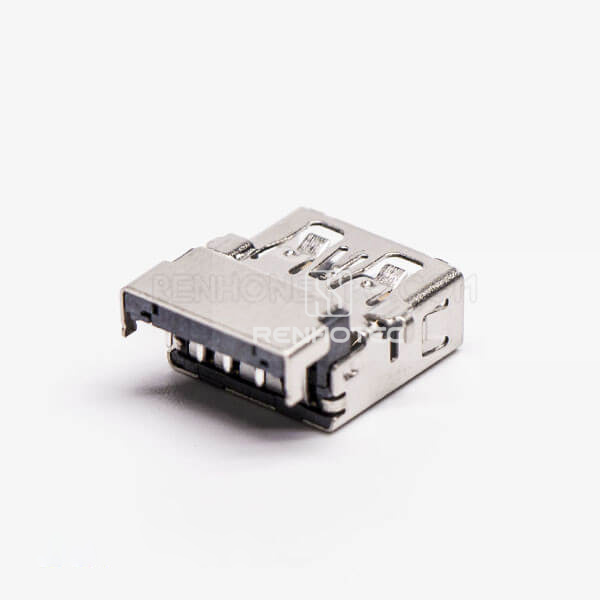

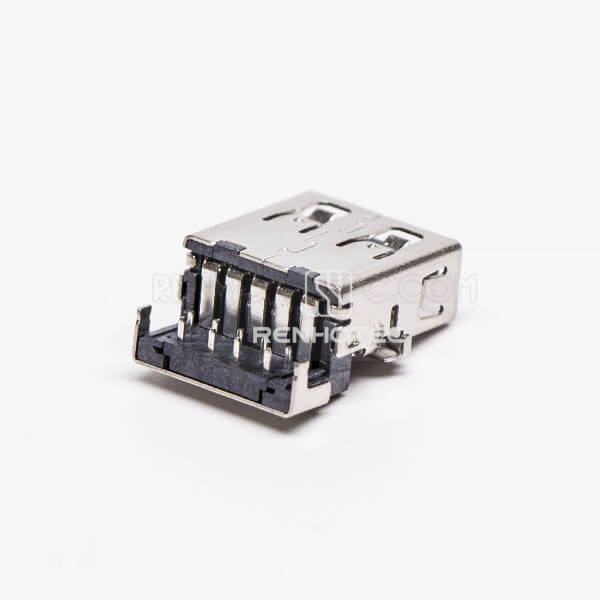

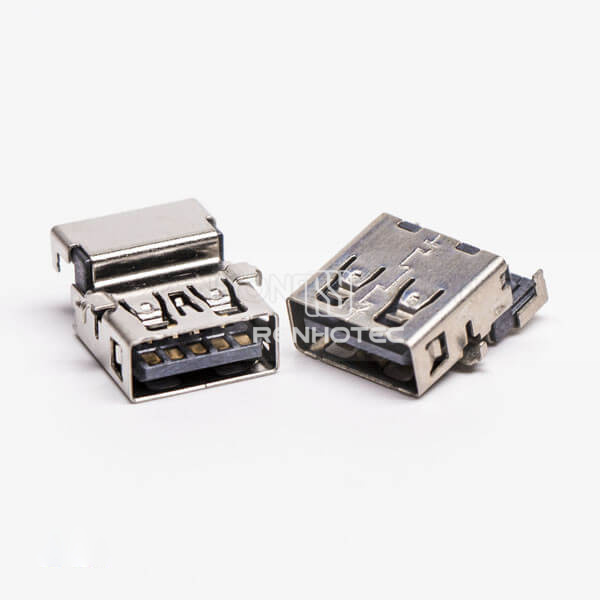

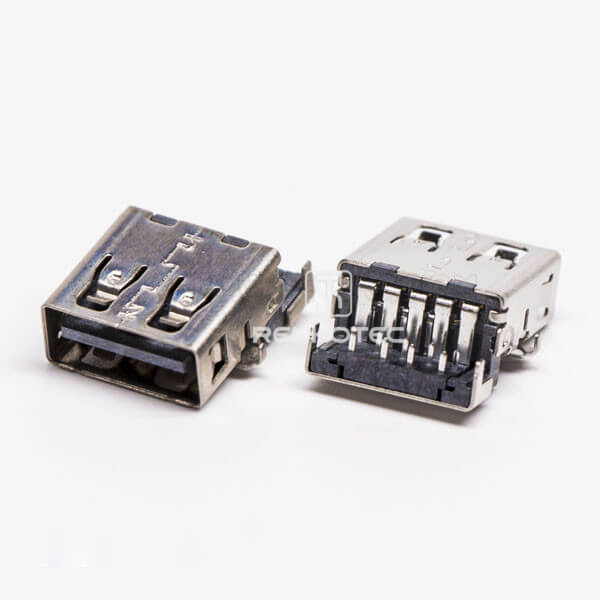

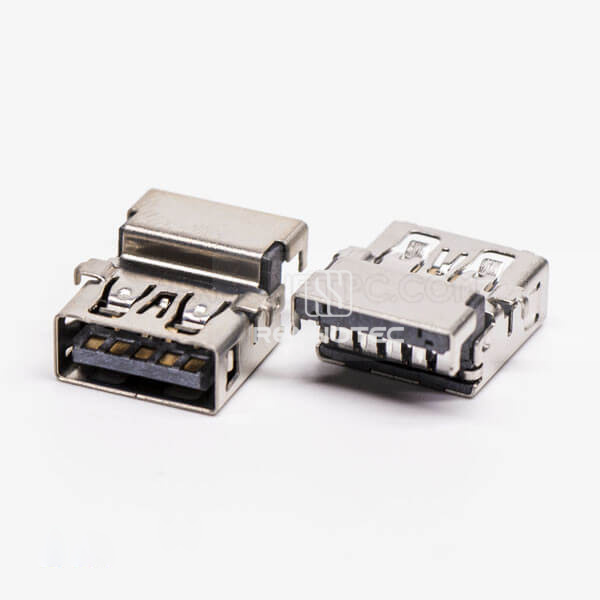

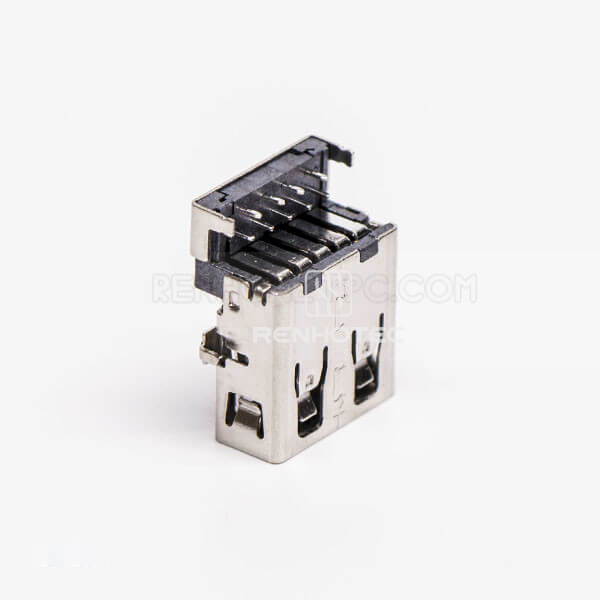

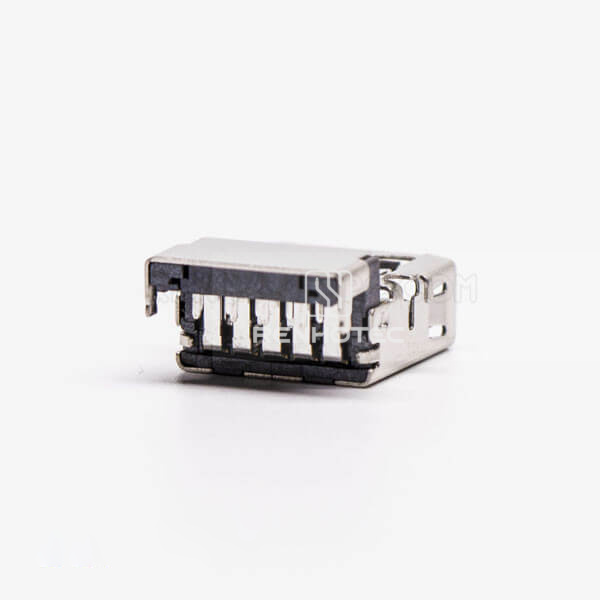

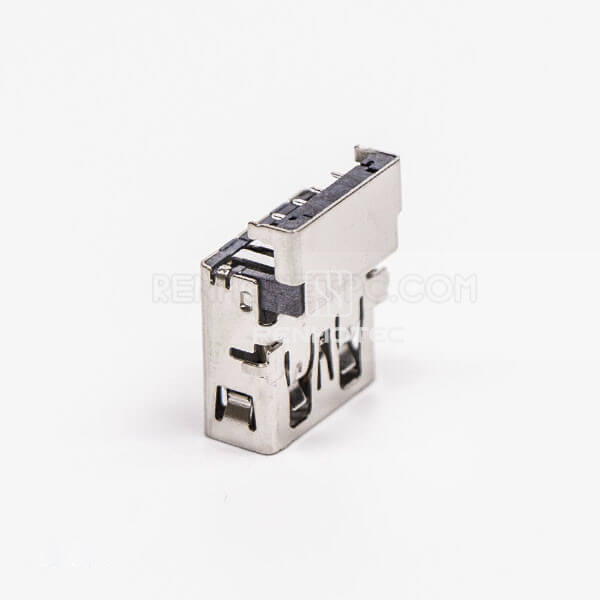

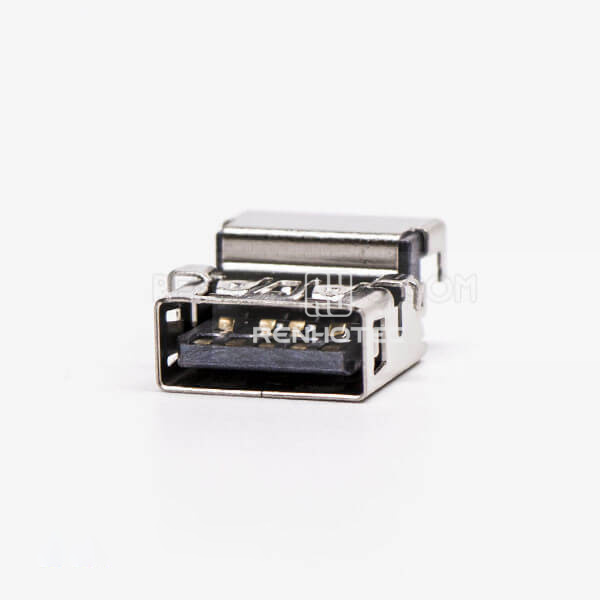

USB 3.0 Female 90 Degree Type A SMT Offset Type

Public Part No. RHT-692-1350

USB 3.0 Female 90 Degree Type A SMT Offset Type
Enlarge image
USB 3.0 Female 90 Degree Type A SMT Offset TypeUSB 3.0 Female 90 Degree Type A SMT Offset TypeUSB 3.0 Female 90 Degree Type A SMT Offset TypeUSB 3.0 Female 90 Degree Type A SMT Offset TypeUSB 3.0 Female 90 Degree Type A SMT Offset TypeUSB 3.0 Female 90 Degree Type A SMT Offset TypeUSB 3.0 Female 90 Degree Type A SMT Offset TypeUSB 3.0 Female 90 Degree Type A SMT Offset TypeUSB 3.0 Female 90 Degree Type A SMT Offset TypeUSB 3.0 Female 90 Degree Type A SMT Offset TypeUSB 3.0 Female 90 Degree Type A SMT Offset Type

Key specifications

Connector Type
USB3.0 / Type A
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / SMT
Request QuoteFull specifications

Overview

USB Connector with Female, Right Angle, Type A / USB3.0. Mounting: PCB Mount, SMT.

Shielding: Shielded.

Offset construction. Compare the offset position with the mechanical drawing and available assembly space.

Full Specifications

Electrical

Current Rating
1.5A
Data rate
Up to 5 Gb/s
Dielectric Withstanding Voltage
100V R.M.S
Insulation Resistance
1000 Megohms Min

Mechanical

Connector Type
USB3.0 / Type A
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / SMT
Shielding
Shielded
Construction detail
Offset Type
Mating Force
3.57kg Max
Unmating Force
1.02kg Min

Environmental

Operating Temperature
-45 to 85 °C
