Cable Assembly

USB 2.0 USB-B Angled Male to Panel-Mount USB-A Female Cable

Public Part No. RHT-606-0122

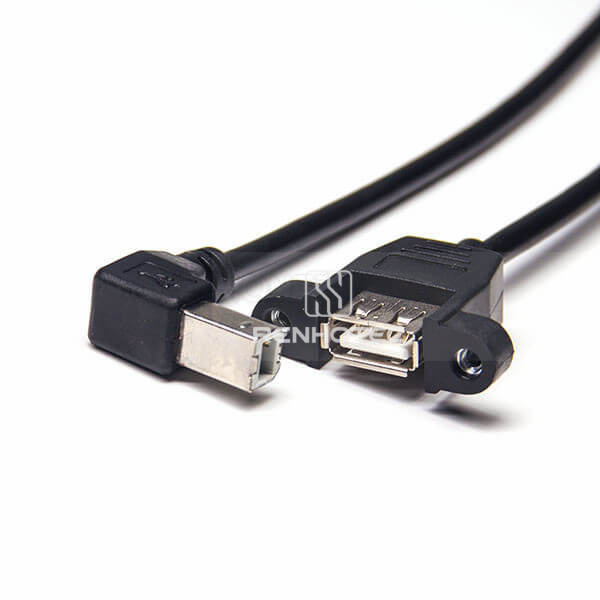

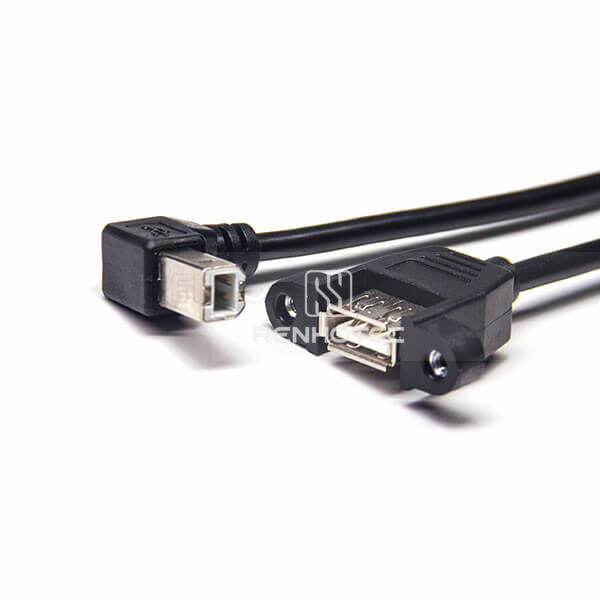

USB 2.0 USB-B Angled Male to Panel-Mount USB-A Female Cable
Enlarge image
USB 2.0 USB-B Angled Male to Panel-Mount USB-A Female CableUSB 2.0 USB-B Angled Male to Panel-Mount USB-A Female CableUSB 2.0 USB-B Angled Male to Panel-Mount USB-A Female Cable

Key specifications

Connector Type
Type B / Type A / USB2.0
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
3A continuous
Insulation resistance
500MΩ min.
Dielectric withstanding voltage
1500V min.

Mechanical

Connector Type
Type B / Type A / USB2.0
Cable length
1 m
Cable outside diameter
3.5 mm
Mating force
5N to 20N
Unmating Force
8N to 20N
Durability
10,000 mating cycles
Gender at connector ends
USB-B: Male; USB-A: Female
Orientation at connector ends
USB-B: Angled; USB-A: Straight

Material

Conductor material
Copper
Cable jacket material
PVC

Environmental

Operating Temperature
-40 to 120 °C
