USB Connector

USB 2.0 High Speed Port Dual Port Type A 90° for PCB Mount

Public Part No. RHT-692-1319

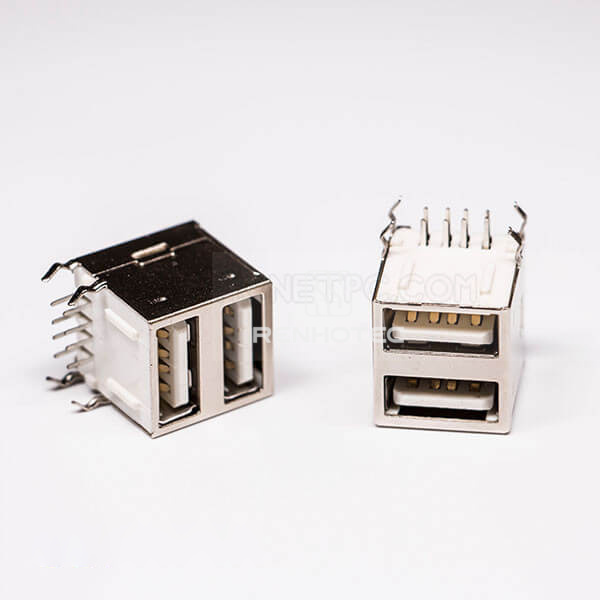

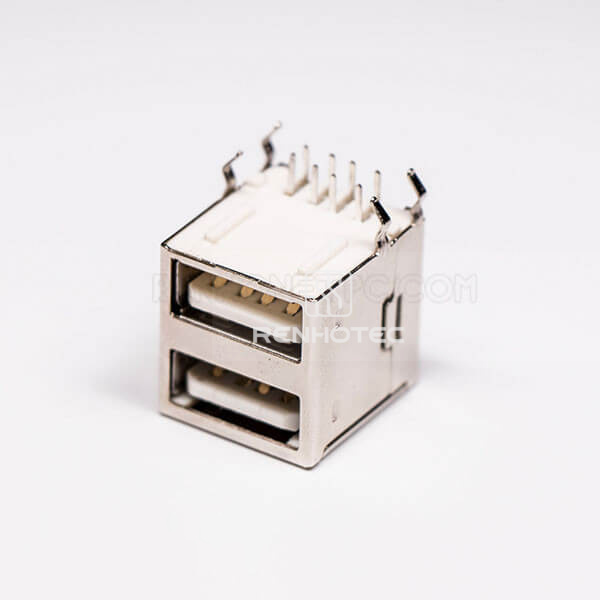

USB 2.0 High Speed Port Dual Port Type A 90° for PCB Mount
Enlarge image
USB 2.0 High Speed Port Dual Port Type A 90° for PCB MountUSB 2.0 High Speed Port Dual Port Type A 90° for PCB Mount

Key specifications

Connector Type
Type A / USB2.0
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Request QuoteFull specifications

Overview

USB Connector with Female, Right Angle, USB2.0 / Type A. Mounting: PCB Mount, Through Hole.

Number of Ports: 2 Port.

Full Specifications

Electrical

Current Rating
1A max.
Voltage Rating
30V AC RMS
Data rate
480 Mbps
Contact Resistance
30 milliohms max
Insulation Resistance
1000 megohms min
Dielectric Withstanding Voltage
500 V DC/1min

Mechanical

Connector Type
Type A / USB2.0
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Number of Ports
2 Port
Connection feature
Hot plugging
Mating force
3.57 kgf max
Unmating Force
1.0 kgf min

Material

Color
White

Environmental

Operating Temperature
-40 to 85 °C
