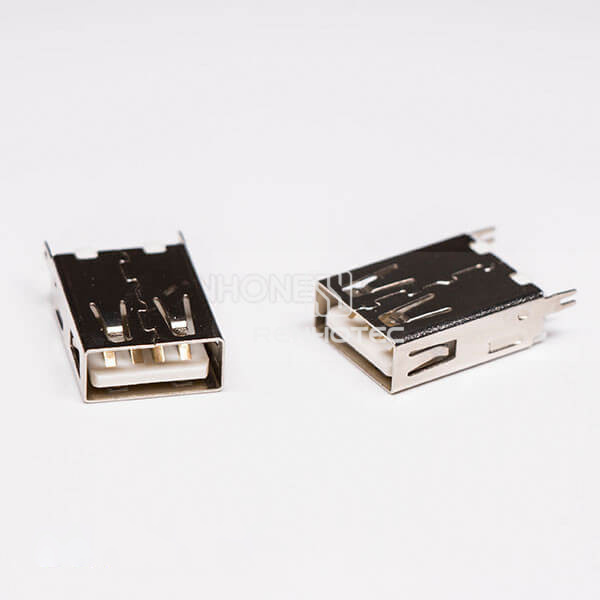

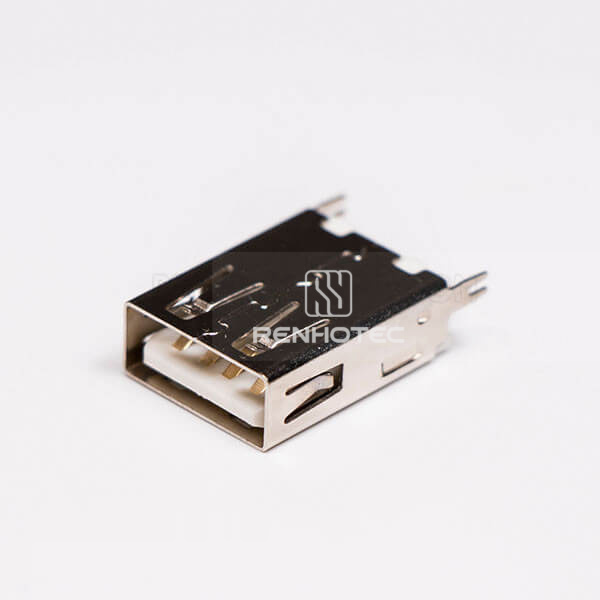

USB 2.0 Connector Female Straight Edge Mount for PCB Mount

Public Part No. RHT-692-1318

USB 2.0 Connector Female Straight Edge Mount for PCB Mount
Enlarge image
USB 2.0 Connector Female Straight Edge Mount for PCB MountUSB 2.0 Connector Female Straight Edge Mount for PCB Mount

Key specifications

Connector Type
USB2.0
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount / SMT
Request QuoteFull specifications

Overview

USB Connector with Female, Straight, USB2.0. Mounting: PCB Mount, SMT.

The edge-mount configuration places the board edge among the dimensions to check against the connector drawing.

Full Specifications

Electrical

Current Rating
1A max.
Voltage Rating
30V AC RMS
Data rate
480 Mbps
Contact Resistance
30 milliohms max
Insulation Resistance
1000 megohms min
Dielectric Withstanding Voltage
500 V DC/1min

Mechanical

Connector Type
USB2.0
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount / SMT
Connection feature
Hot plugging
Mating force
3.57 kgf max
Unmating Force
1.0 kgf min

Material

Color
White

Environmental

Operating Temperature
-40 to 85 °C

Connector requirement
