USB Connector

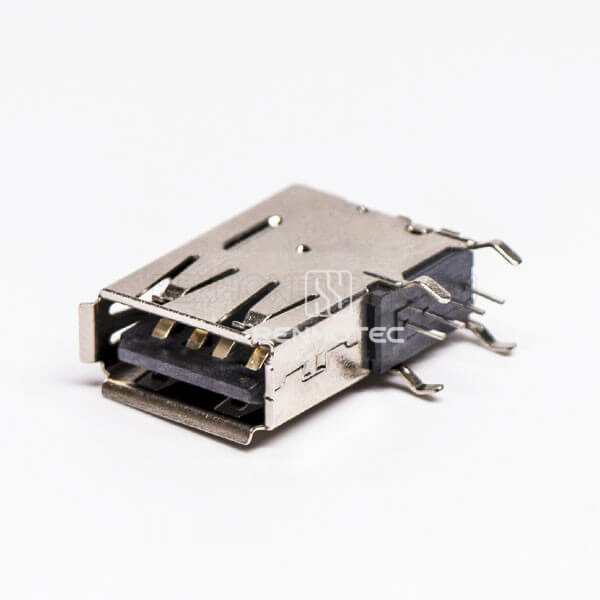

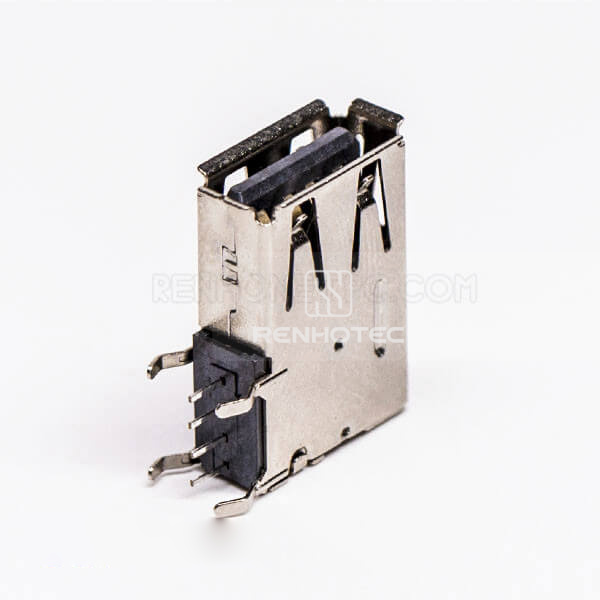

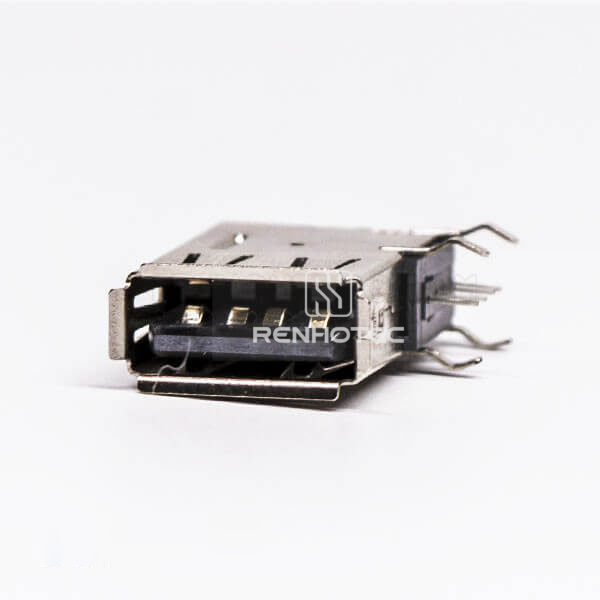

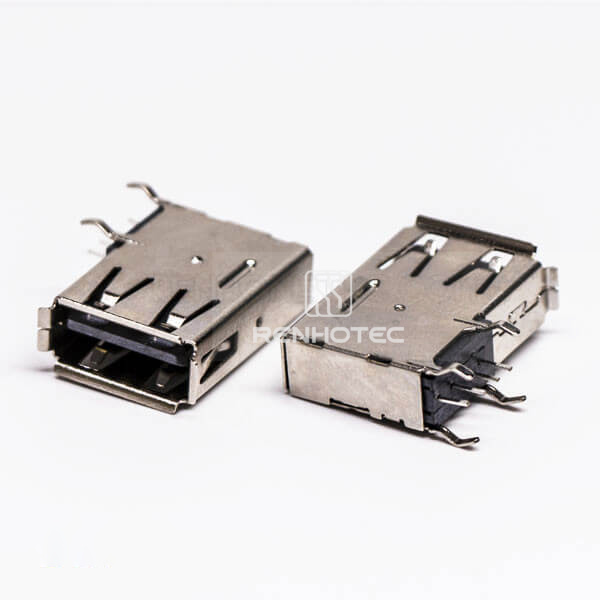

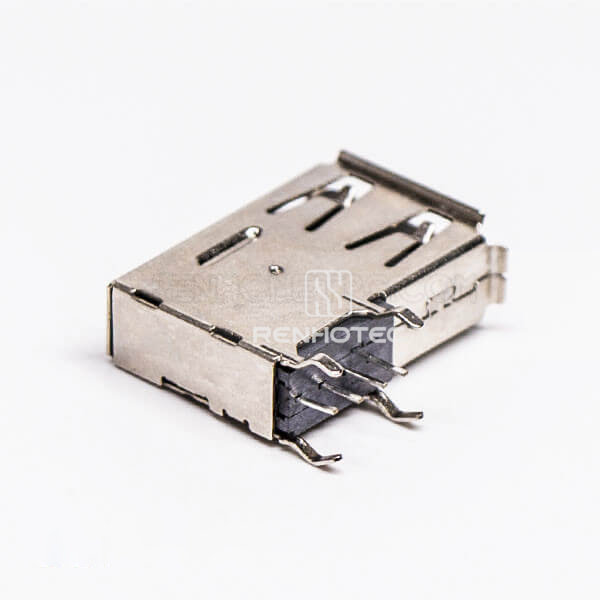

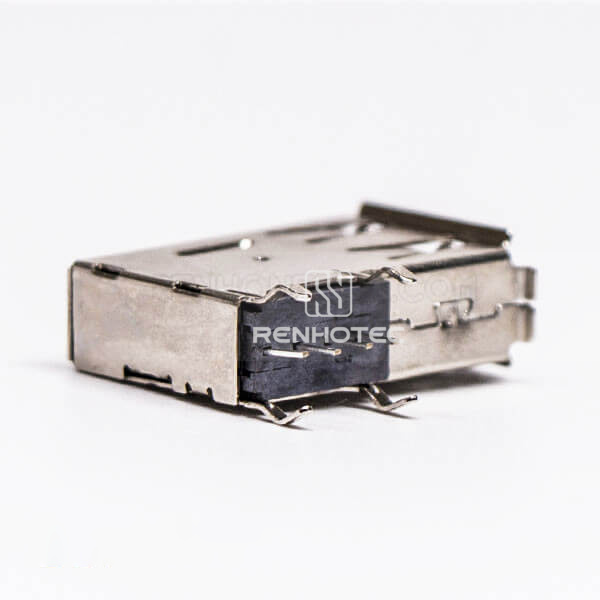

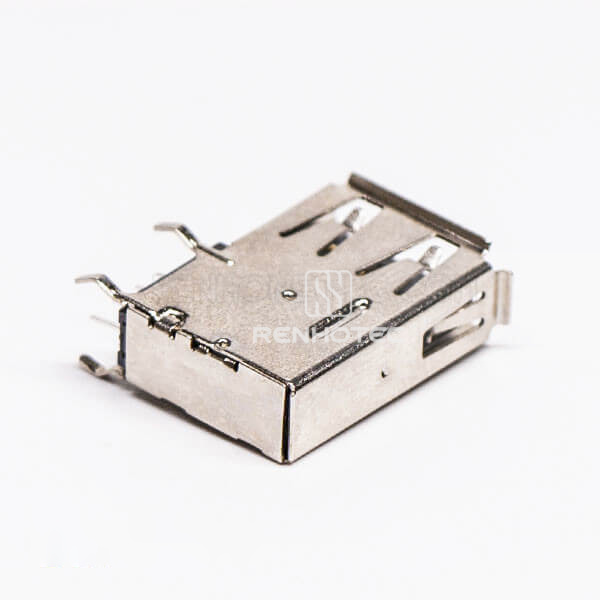

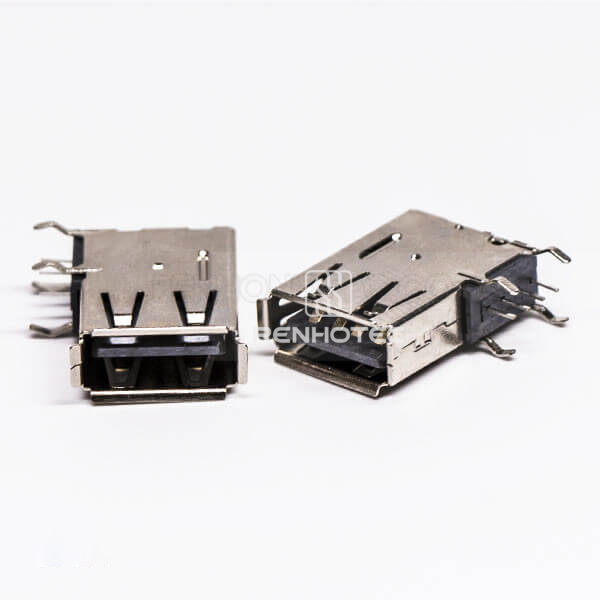

USB 2.0 A Female Flag Type Through Hole for PCB Mount

Part No.RHT-692-1322

USB Connector with Female, Type A / USB2.0. Mounting: PCB Mount, Through Hole.

  • Connector TypeType A / USB2.0
  • GenderFemale
  • Mounting TypePCB Mount / Through Hole

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
1A max.
Voltage Rating
30V AC RMS
Data rate
480 Mbps
Contact Resistance
30 milliohms max
Insulation Resistance
1000 megohms min
Dielectric Withstanding Voltage
500 V DC/1min

Connection

Connector Type
Type A / USB2.0

Mechanical

Gender
Female
Mounting Type
PCB Mount / Through Hole
Construction detail
Flag Type
Connection feature
Hot plugging
Mating force
3.57 kgf max
Unmating Force
1.0 kgf min

Material

Color
Black

Environmental

Operating Temperature
-40 to 85 °C

Before you specify

Selection guide

USB Connector with Female, Type A / USB2.0. Mounting: PCB Mount, Through Hole.

Flag-type construction. Compare its outline and mounting position with the available board space.

RHT-692-1322
