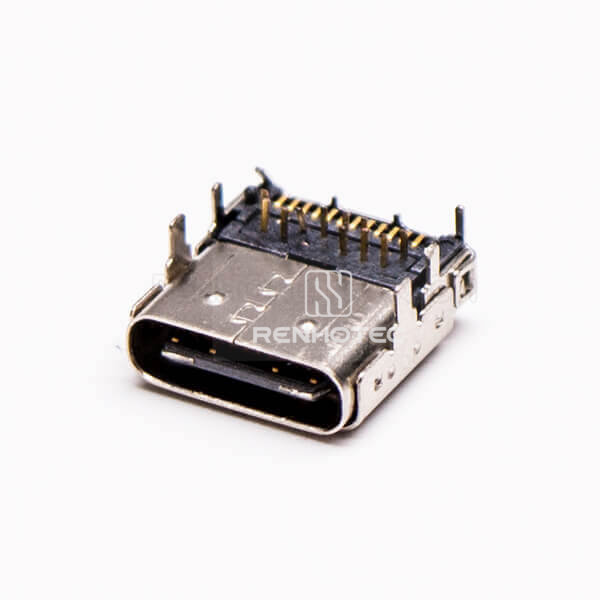

Type C Connector USB Female Right Angled DIP SMT for PCB Mount

Public Part No. RHT-692-1263

Type C Connector USB Female Right Angled DIP SMT for PCB Mount
Enlarge image

Key specifications

Connector Type
Type C
Gender
Female
Orientation
Right Angle
Mounting Type
DIP / PCB Mount / SMT / Through Hole
Request QuoteFull specifications

Overview

RHT-692-1263 is a female USB Type-C connector with a right-angle orientation for PCB mounting. Compare both the pad and hole arrangement: this part lists DIP and SMT connections.

Full Specifications

Mechanical

Connector Type
Type C
Gender
Female
Orientation
Right Angle
Mounting Type
DIP / PCB Mount / SMT / Through Hole
