USB Connector

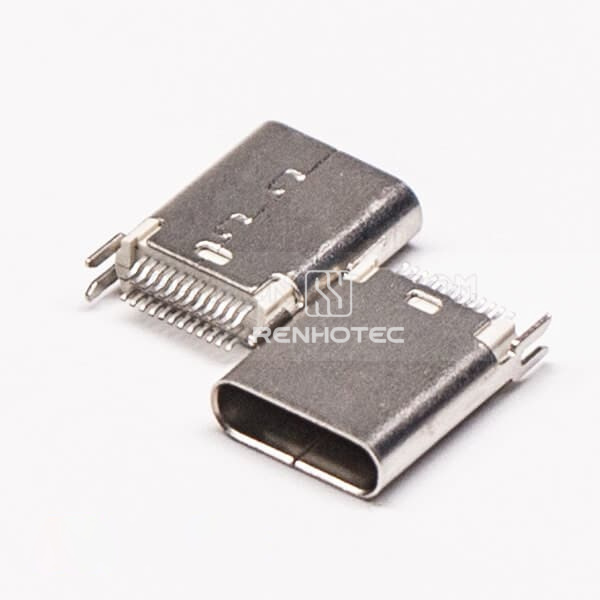

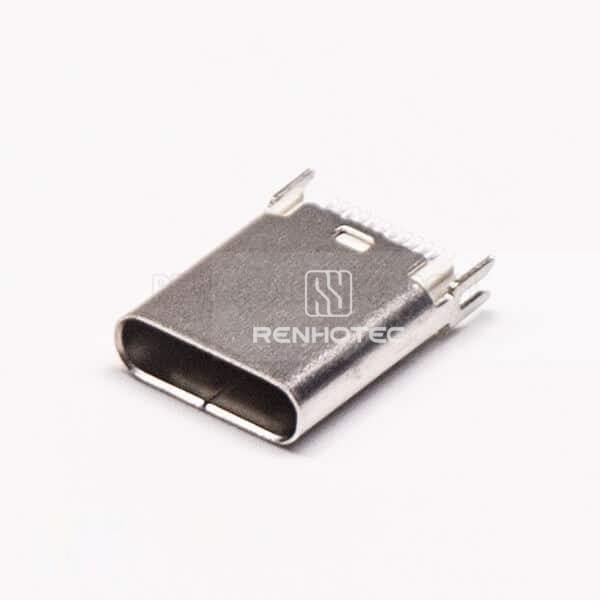

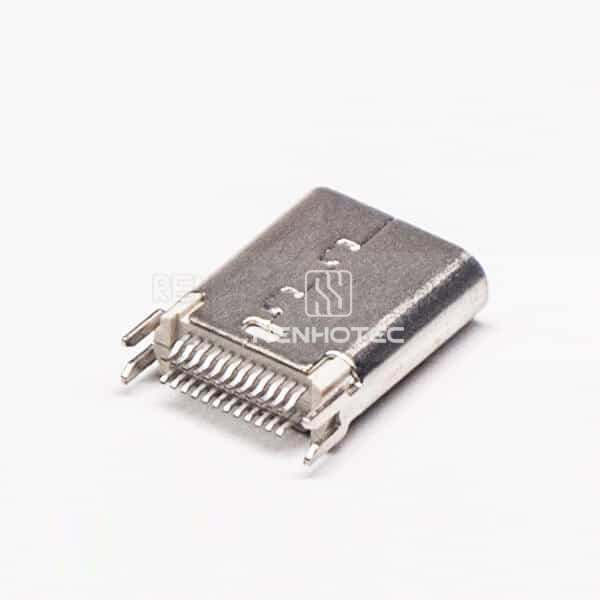

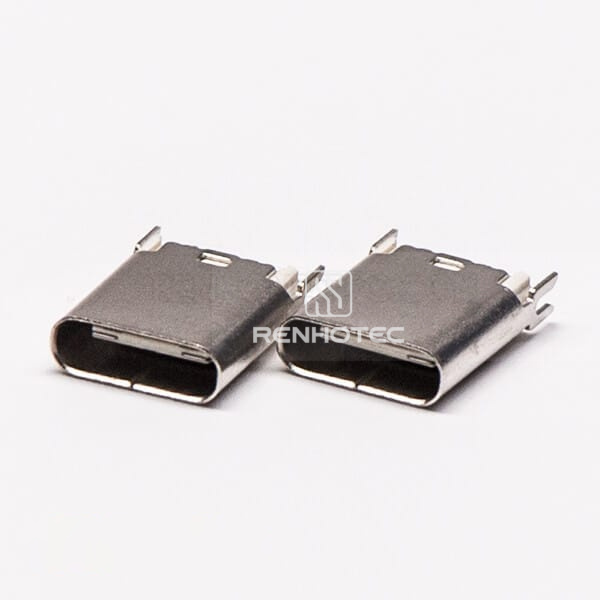

Type C 24 Pin Socket Straight 180 Degree Through Hole for PCB Mount

Public Part No. RHT-692-1314

Type C 24 Pin Socket Straight 180 Degree Through Hole for PCB Mount
Enlarge image
Type C 24 Pin Socket Straight 180 Degree Through Hole for PCB MountType C 24 Pin Socket Straight 180 Degree Through Hole for PCB MountType C 24 Pin Socket Straight 180 Degree Through Hole for PCB MountType C 24 Pin Socket Straight 180 Degree Through Hole for PCB Mount

Key specifications

Connector Type
Type C
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount / Through Hole
Pin Count
24 Pin
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
5A
Voltage Rating
5V AC
Contact Resistance
40 milliohms max
Insulation Resistance
100 megohms
Withstanding Voltage
100V AC

Mechanical

Connector Type
Type C
Pin Count
24 Pin
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount / Through Hole
Connection feature
Reversible plug and cable orientation
Mating force
5N to 20N
Unmating Force
8N to 20N
Durability
10,000 mating cycles

Environmental

Operating Temperature
-30 to 85 °C
