USB Connector

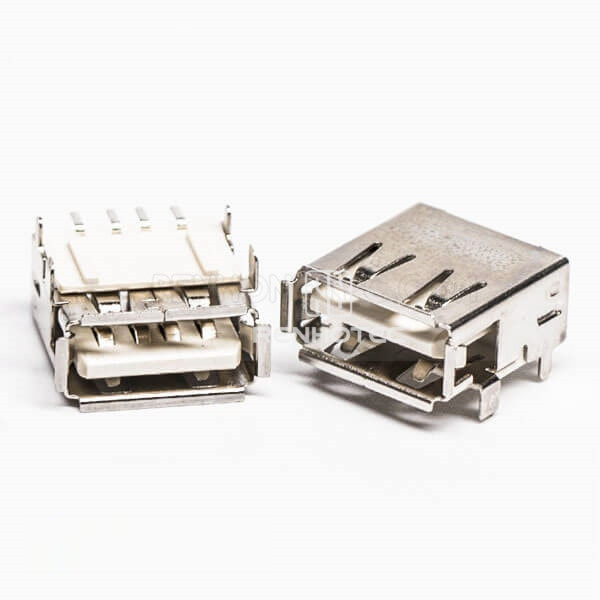

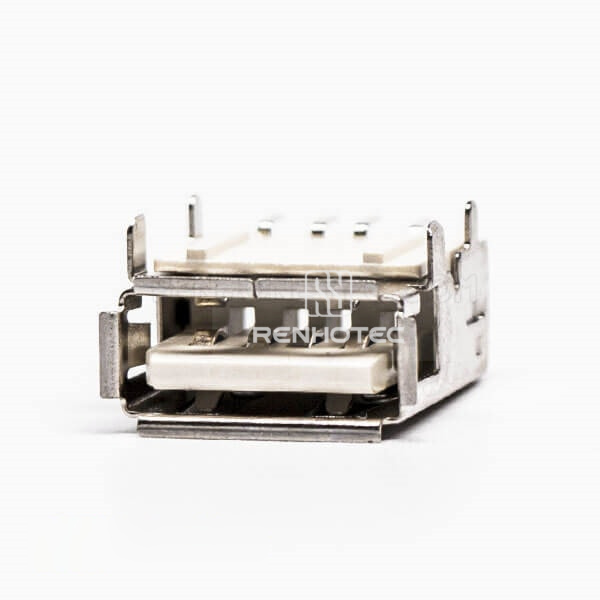

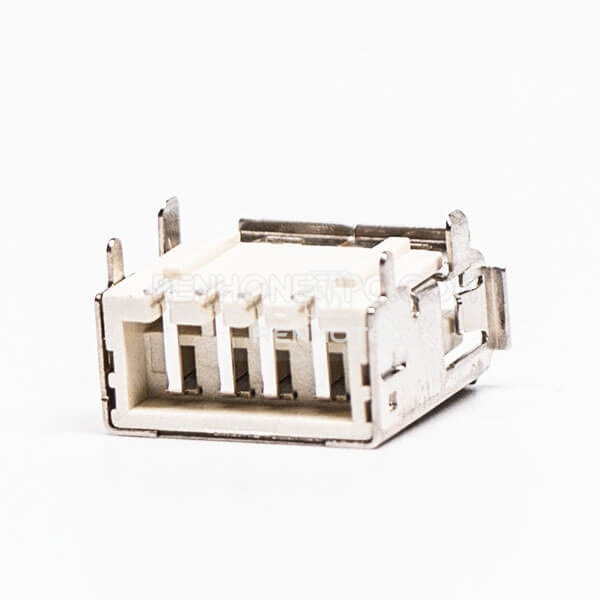

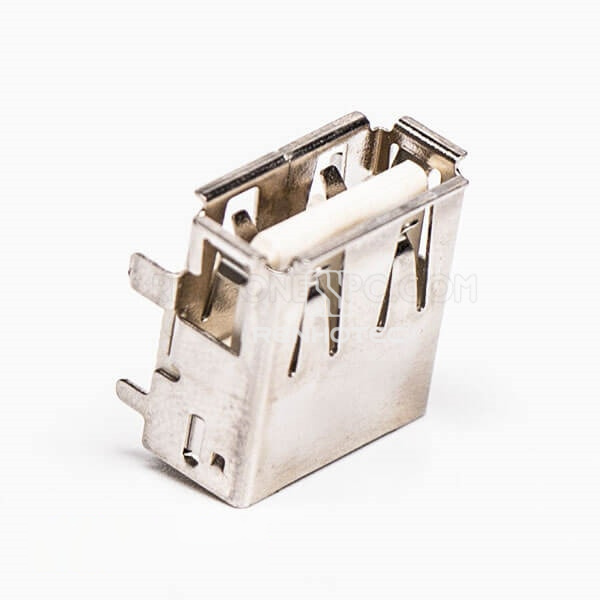

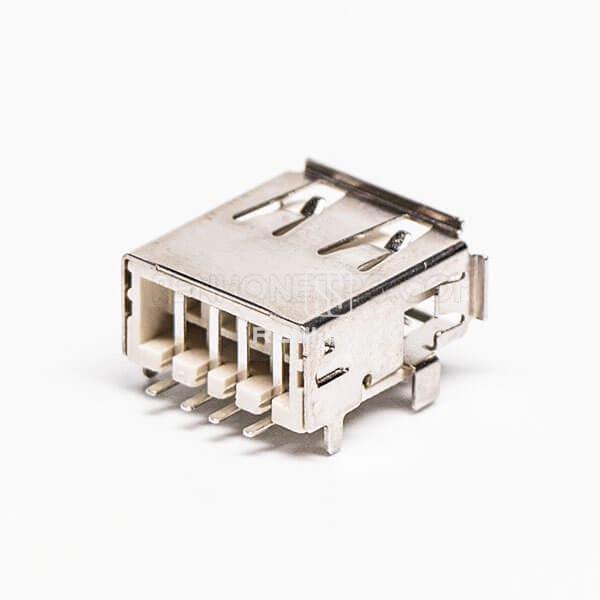

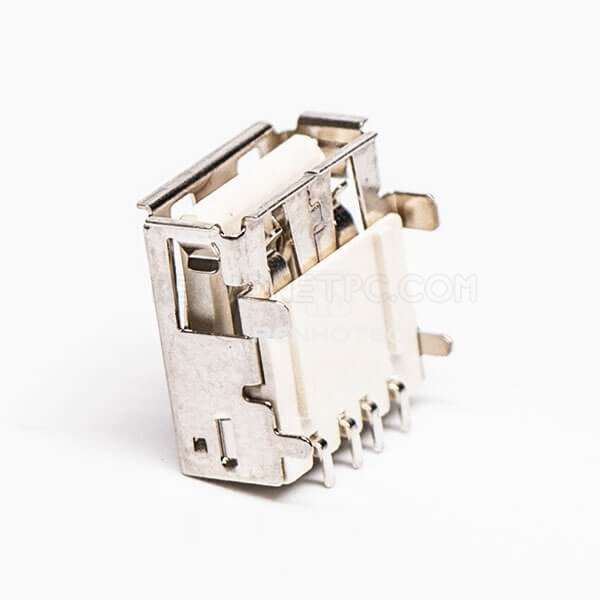

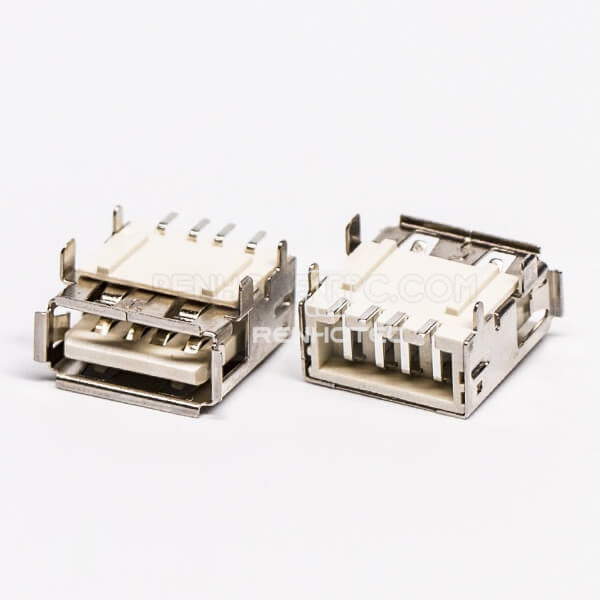

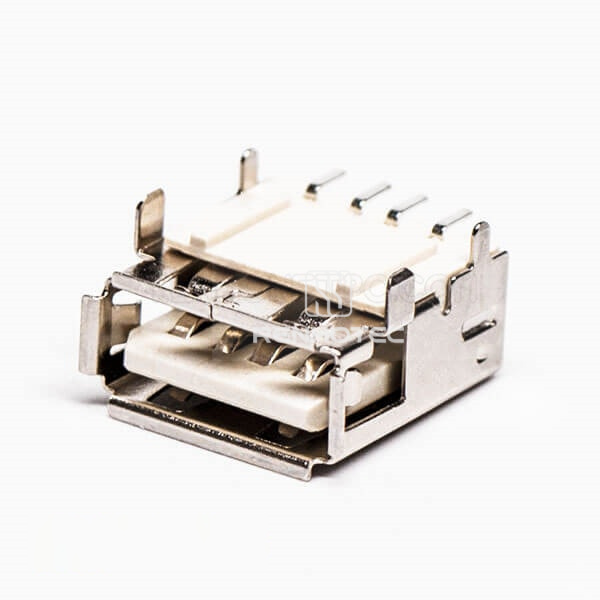

Type A USB 2.0 Female Port Through Hole

Public Part No. RHT-692-1330

Type A USB 2.0 Female Port Through Hole
Enlarge image
Type A USB 2.0 Female Port Through HoleType A USB 2.0 Female Port Through HoleType A USB 2.0 Female Port Through HoleType A USB 2.0 Female Port Through HoleType A USB 2.0 Female Port Through HoleType A USB 2.0 Female Port Through HoleType A USB 2.0 Female Port Through HoleType A USB 2.0 Female Port Through Hole

Key specifications

Connector Type
Type A / USB2.0
Gender
Female
Orientation
Right Angle
Mounting Type
DIP / PCB Mount / Through Hole
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
1A max.
Voltage Rating
30V AC RMS
Data rate
480 Mbps
Contact Resistance
30 milliohms max
Insulation Resistance
1000 megohms min
Dielectric Withstanding Voltage
500 V DC/1min

Mechanical

Connector Type
Type A / USB2.0
Gender
Female
Orientation
Right Angle
Mounting Type
DIP / PCB Mount / Through Hole
Connection feature
Hot plugging
Mating force
3.57 kgf max
Unmating Force
1.0 kgf min

Material

Color
White

Environmental

Operating Temperature
-40 to 85 °C
