D-SUB Connector

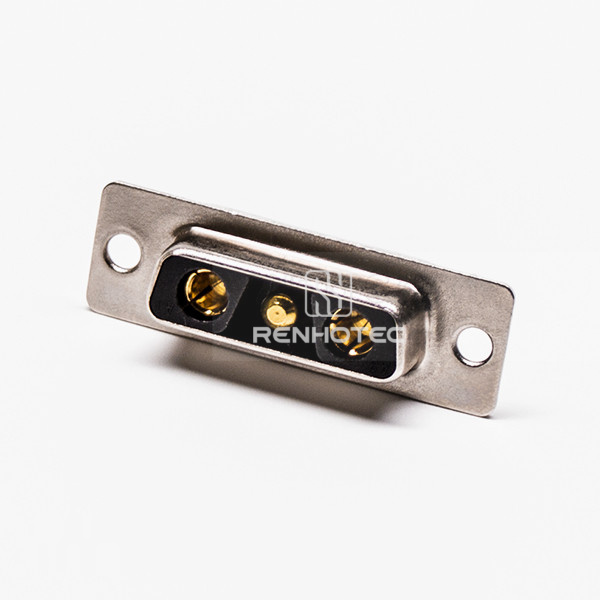

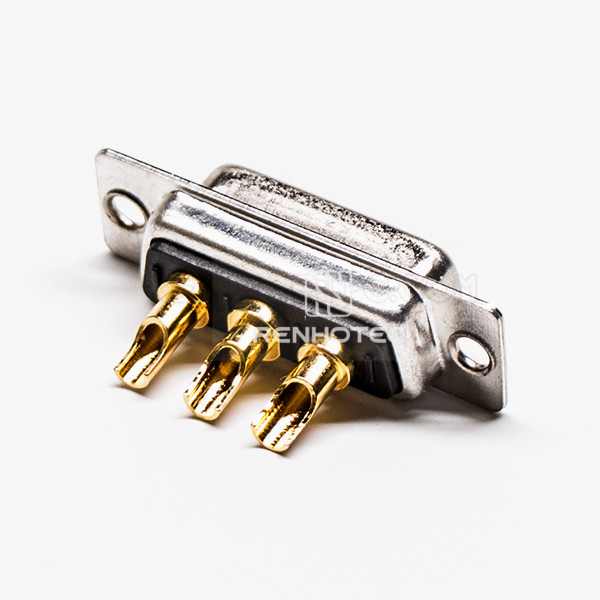

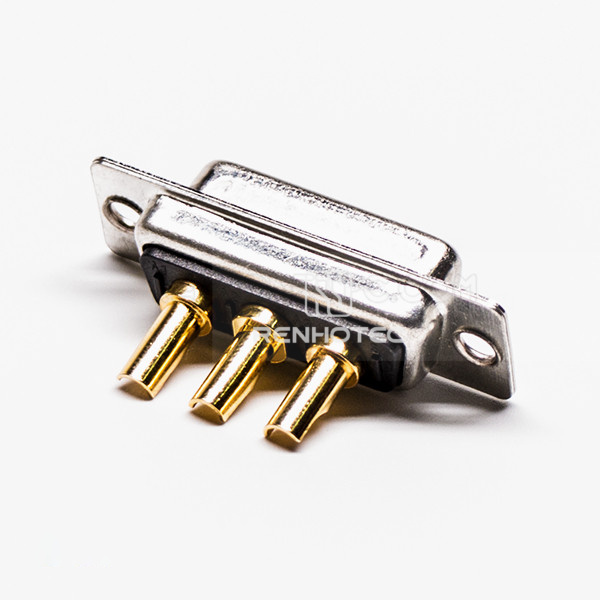

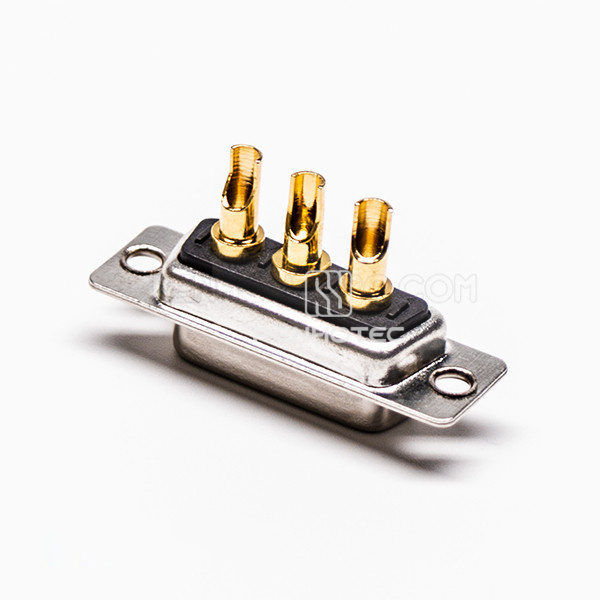

3W3 Female D-SUB Connector, Straight Solder Termination
- Connector TypeCable Connector / Power D-SUB
- GenderFemale
- OrientationStraight
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Frequency range
- 0 -1 GHz
- VSWR
- 1.4 (+0.04/GHz)
- Characteristic Impedance
- 50 Ohms
- Dielectric Withstanding Voltage
- ≥ 1000V R.M.S. at 50Hz
- Insulation Resistance
- ≥ 5000 megaohms at 500 V D.C.
- Contact Resistance
- ≤5 milliohms
Connection
- Connector Type
- Cable Connector / Power D-SUB
Mechanical
- Gender
- Female
- Orientation
- Straight
- Termination Type
- Solder Type
- Contact configuration
- 3W3
- Mechanical operations
- up to 500
Environmental
- Operating Temperature
- -55 to 155 °C
Before you specify
Selection guide
3W3 female D-SUB connector with a straight orientation and solder termination for cable connections.
RHT-681-1218
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
3W3 Female D-SUB Connector, Straight Solder Termination- Product family
- D-SUB Connector
- Public Part No.
- RHT-681-1218
