D-SUB Connector

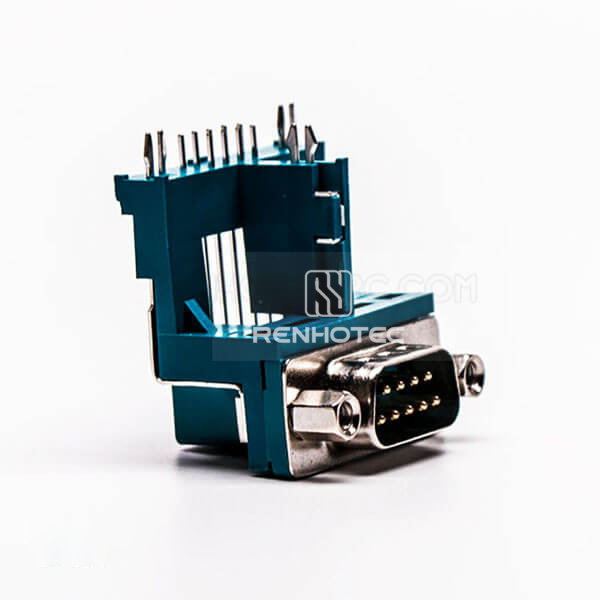

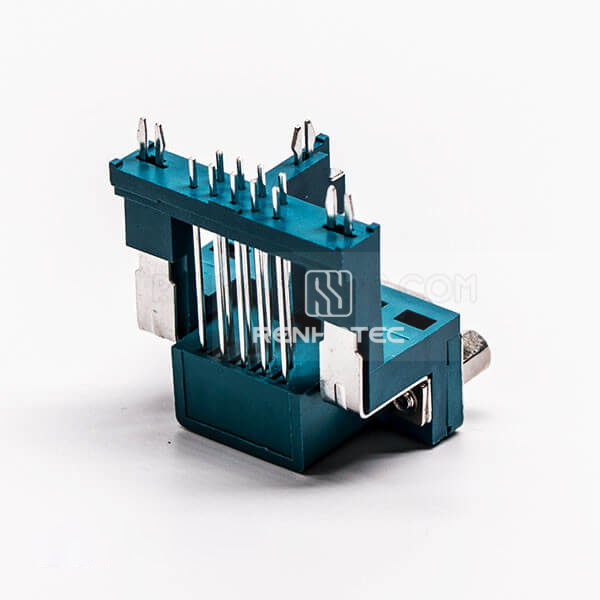

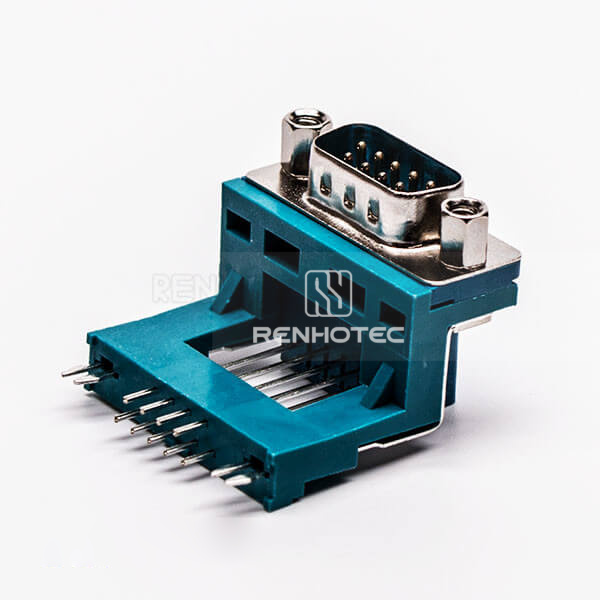

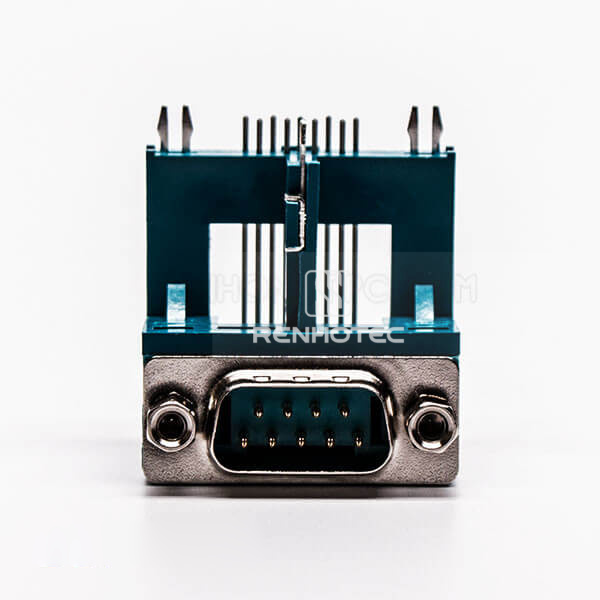

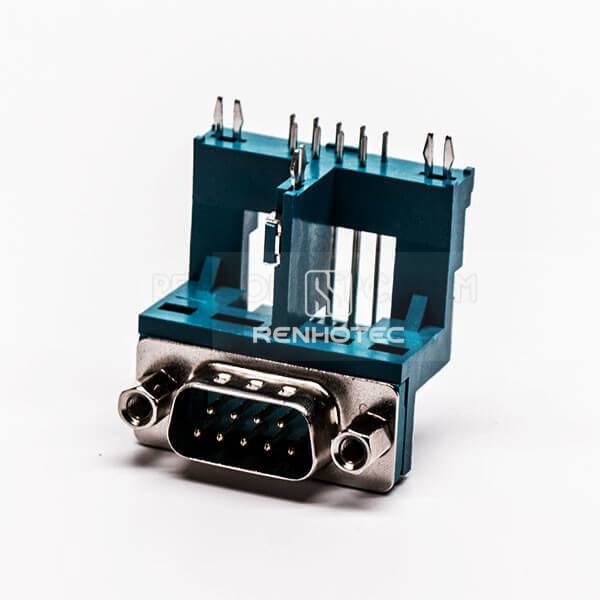

Top 9 Pin D-SUB 90 Deg Clamp Male Elevated Type Green for PCB Connector

Part No.RHT-681-1156
9-pin male D-SUB connector with right-angle orientation and through-hole PCB mounting.
  • Connector TypeD-SUB
  • Pin Count9 Pin
  • GenderMale

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Connection

Connector Type
D-SUB

Mechanical

Pin Count
9 Pin
Gender
Male
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Construction detail
Elevated
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.

Material

Color
Green
Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C

Before you specify

Selection guide

9-pin male D-SUB connector with right-angle orientation and through-hole PCB mounting. The connector has an elevated construction. Colour: green.
