Terminal Blocks

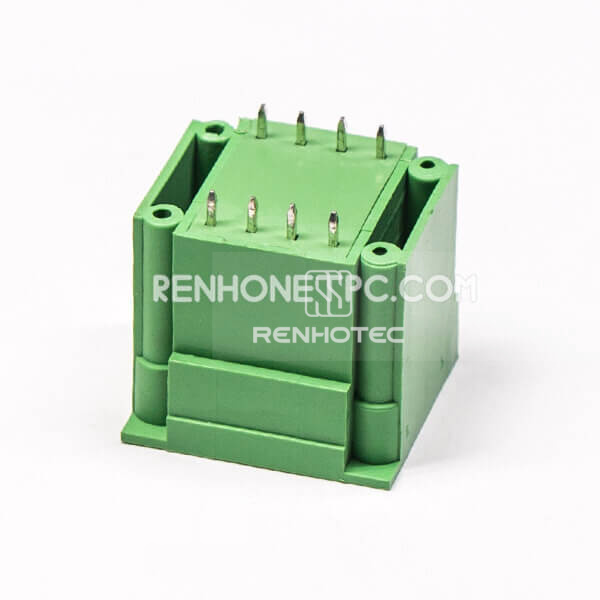

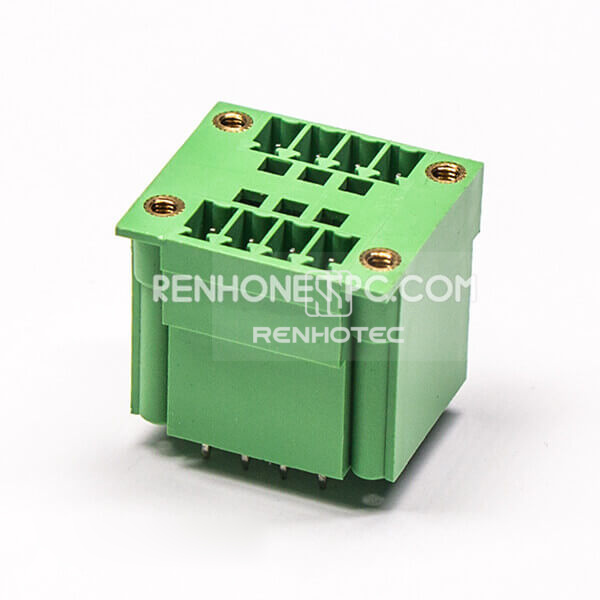

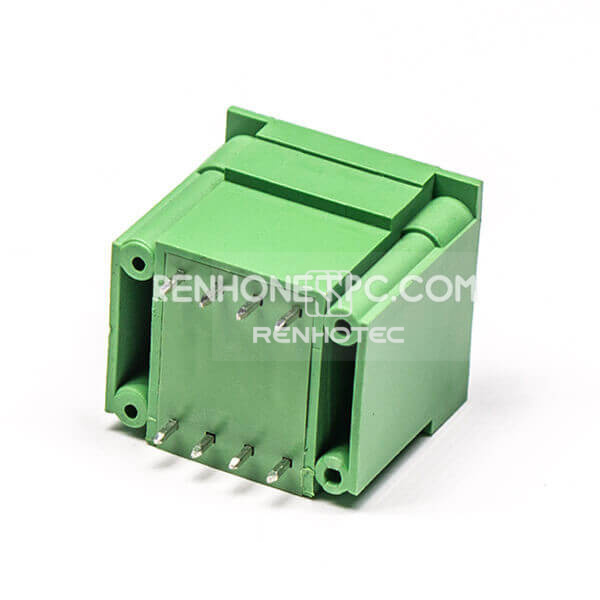

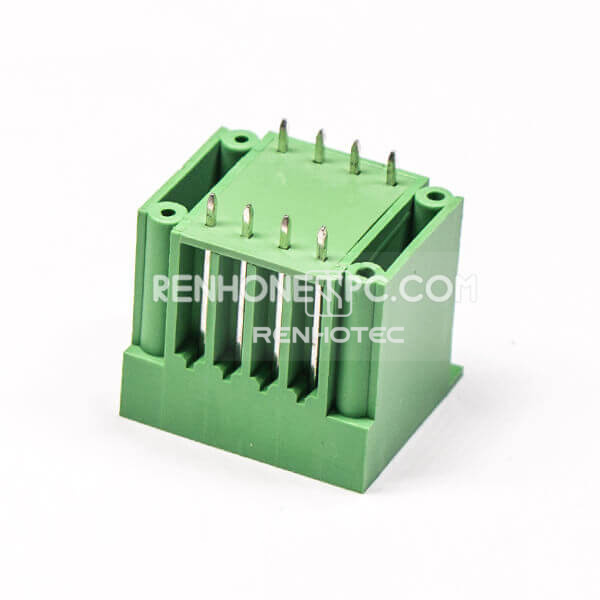

Terminal Blocks 8pin Green Plug with 4 Screw Holes Connector

Public Part No. RHT-665-2506

Terminal Blocks 8pin Green Plug with 4 Screw Holes Connector
Enlarge image
Terminal Blocks 8pin Green Plug with 4 Screw Holes ConnectorTerminal Blocks 8pin Green Plug with 4 Screw Holes ConnectorTerminal Blocks 8pin Green Plug with 4 Screw Holes ConnectorTerminal Blocks 8pin Green Plug with 4 Screw Holes ConnectorTerminal Blocks 8pin Green Plug with 4 Screw Holes Connector

Key specifications

Pin Count
8 Pin
Orientation
Straight
Mounting Type
Through Hole
Request QuoteFull specifications

Overview

8-pin green pluggable terminal block with straight orientation, through-hole mounting. Pitch options listed: 3.50mm/3.81mm. Confirm the required option before matching the footprint or mating part. 4 screw holes. Rated current 10 A; rated voltage 300 V.

Full Specifications

Electrical

Current Rating
10A
Voltage Rating
300V

Mechanical

Pin Count
8 Pin
Orientation
Straight
Mounting Type
Through Hole
Pitch options
3.50mm/3.81mm

Material

Color
Green
