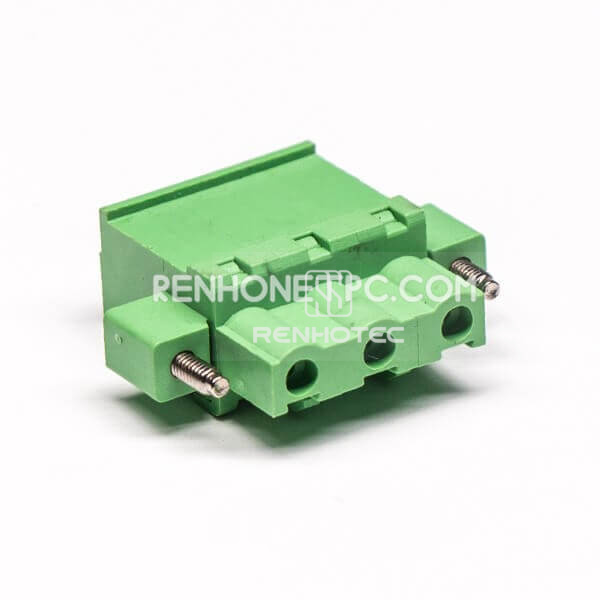

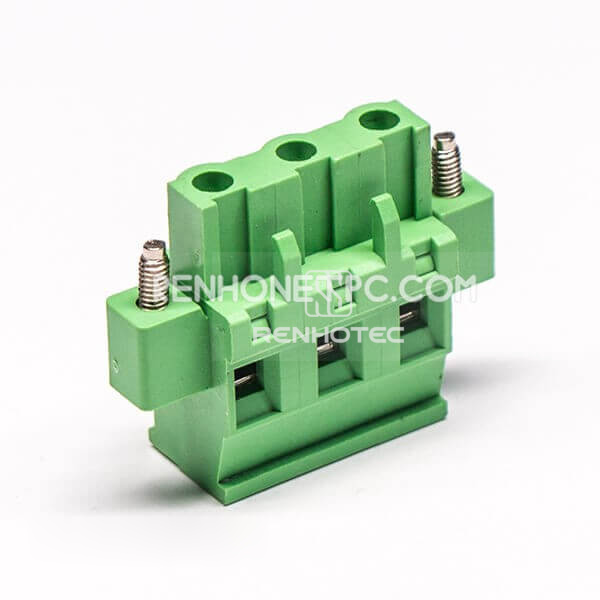

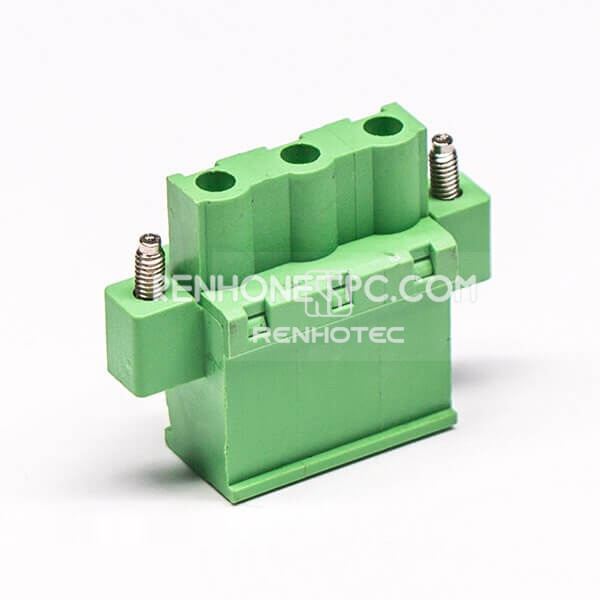

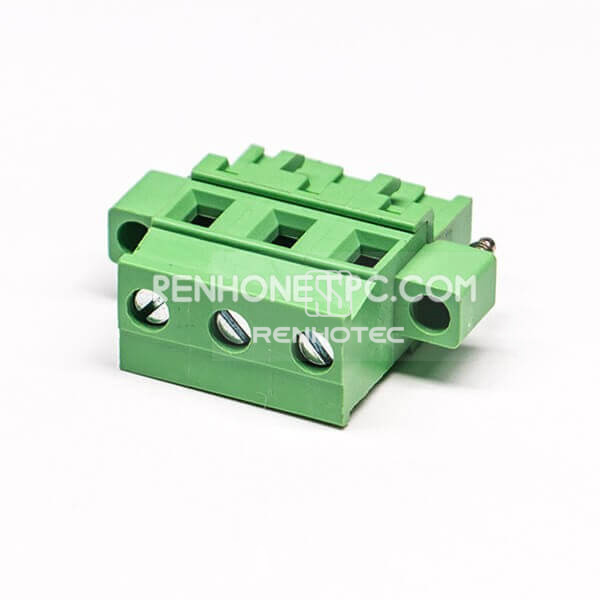

Terminal Block Connector Clamp Type Flange Mounting Green Pluggable

Public Part No. RHT-665-2546

Terminal Block Connector Clamp Type Flange Mounting Green Pluggable
Enlarge image
Terminal Block Connector Clamp Type Flange Mounting Green PluggableTerminal Block Connector Clamp Type Flange Mounting Green PluggableTerminal Block Connector Clamp Type Flange Mounting Green PluggableTerminal Block Connector Clamp Type Flange Mounting Green Pluggable

Key specifications

Orientation
Straight
Mounting Type
Through Hole
Request QuoteFull specifications

Overview

Green pluggable terminal block with straight orientation, through-hole mounting. Pitch options listed: 5.00/5.08mm. Confirm the required option before matching the footprint or mating part. Rated current 20 A; rated voltage 300 V.

Full Specifications

Electrical

Current Rating
20A
Voltage Rating
300V

Mechanical

Orientation
Straight
Mounting Type
Through Hole
Pitch options
5.00/5.08mm

Material

Color
Green
