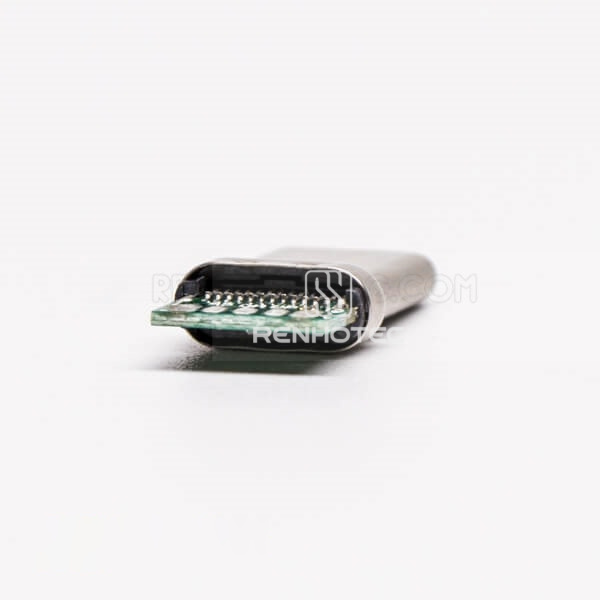

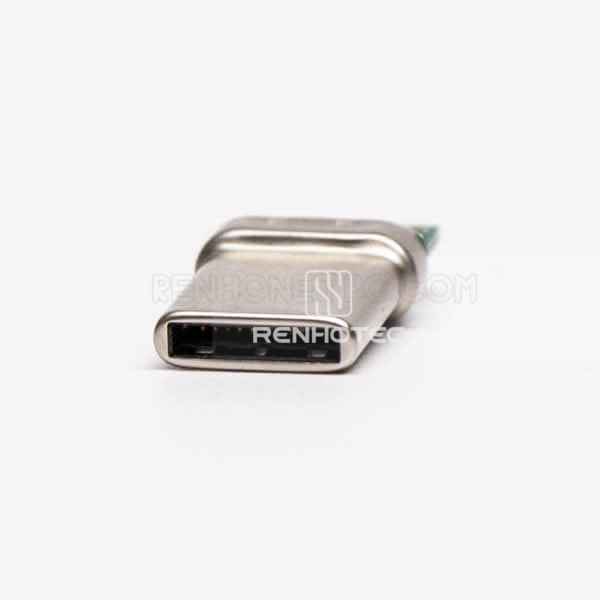

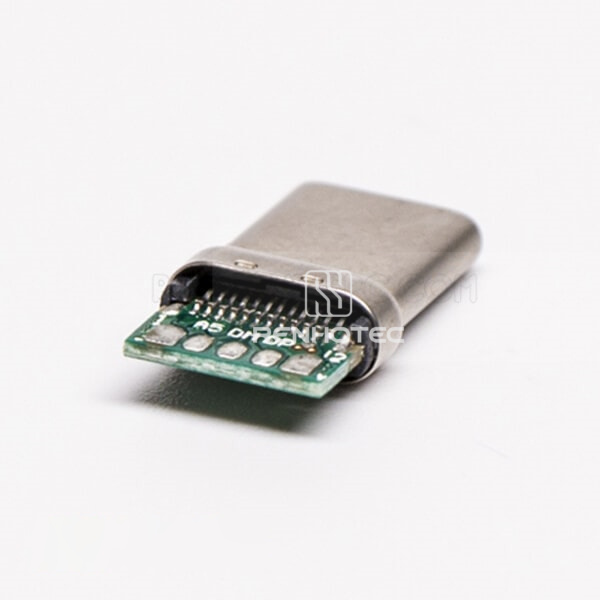

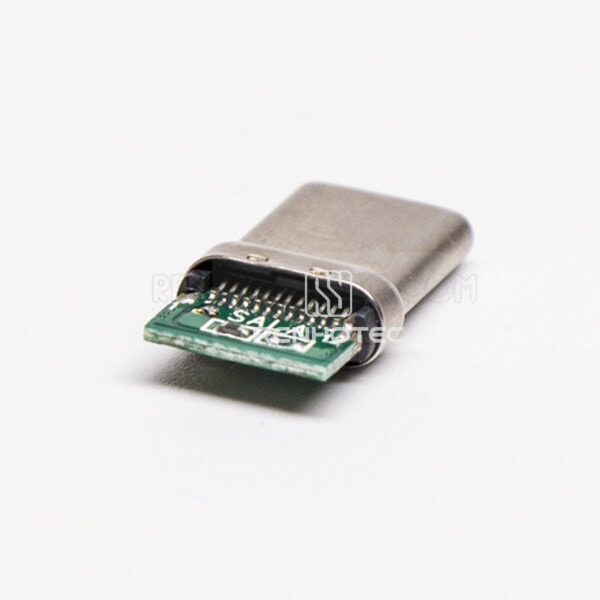

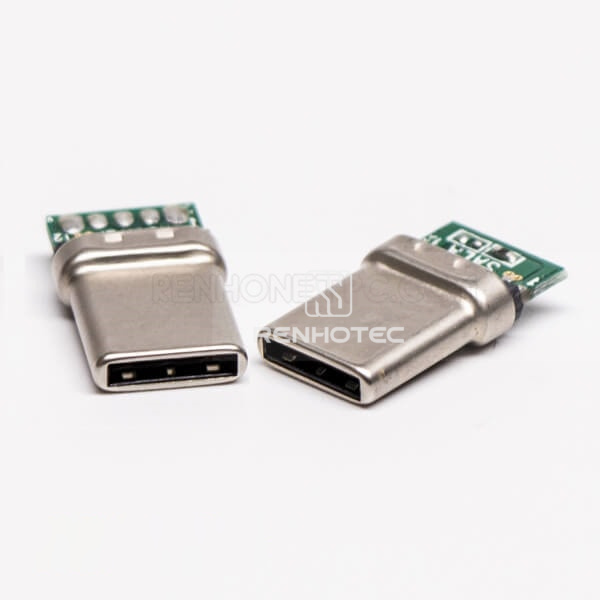

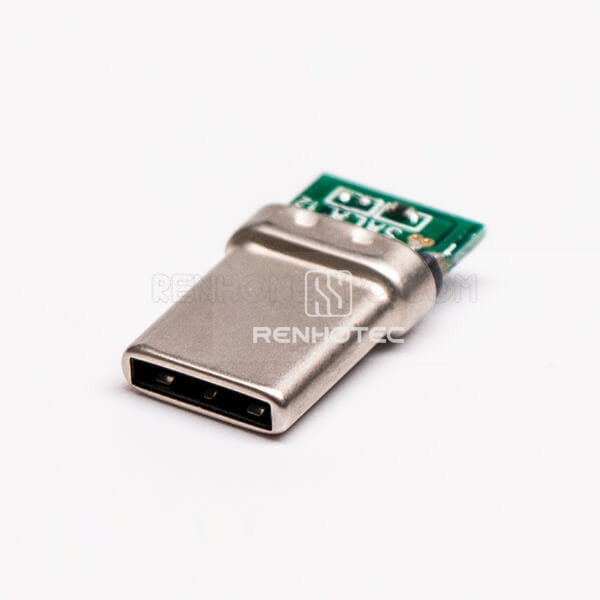

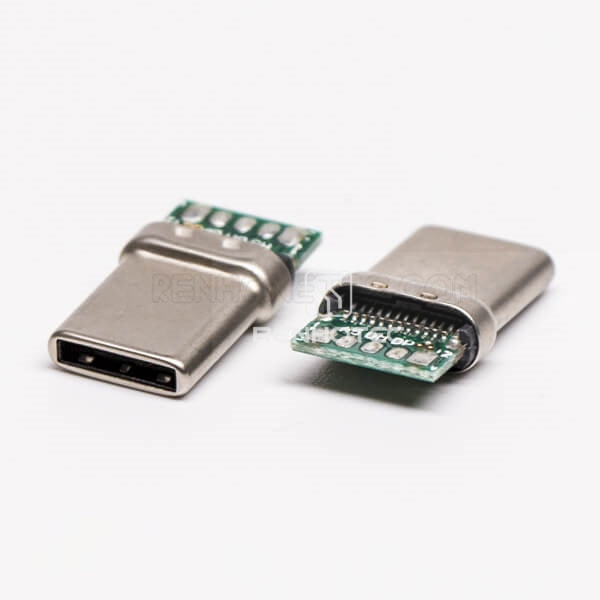

Straight Quick Male PCB Mount Type C USB3.0 Connector

Public Part No. RHT-692-1280

Straight Quick Male PCB Mount Type C USB3.0 Connector
Enlarge image
Straight Quick Male PCB Mount Type C USB3.0 ConnectorStraight Quick Male PCB Mount Type C USB3.0 ConnectorStraight Quick Male PCB Mount Type C USB3.0 ConnectorStraight Quick Male PCB Mount Type C USB3.0 ConnectorStraight Quick Male PCB Mount Type C USB3.0 ConnectorStraight Quick Male PCB Mount Type C USB3.0 ConnectorStraight Quick Male PCB Mount Type C USB3.0 Connector

Key specifications

Connector Type
USB3.0 / Type C
Gender
Male
Orientation
Straight
Mounting Type
PCB Mount
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
5A
Voltage Rating
5V AC
Contact Resistance
40 milliohms max
Insulation Resistance
100 megohms
Withstanding Voltage
100V AC

Mechanical

Connector Type
USB3.0 / Type C
Gender
Male
Orientation
Straight
Mounting Type
PCB Mount
Connection feature
Reversible plug and cable orientation
Mating force
5N to 20N
Unmating Force
8N to 20N
Durability
10,000 mating cycles

Environmental

Operating Temperature
-30 to 85 °C
