DVI Connector

Stacked DVI Female Harpoon Staking Type Through Hole

Public Part No. RHT-621-2114

Stacked DVI Female Harpoon Staking Type Through Hole
Enlarge image
Stacked DVI Female Harpoon Staking Type Through HoleStacked DVI Female Harpoon Staking Type Through HoleStacked DVI Female Harpoon Staking Type Through HoleStacked DVI Female Harpoon Staking Type Through HoleStacked DVI Female Harpoon Staking Type Through Hole

Key specifications

Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Staking Type
Request QuoteFull specifications

Overview

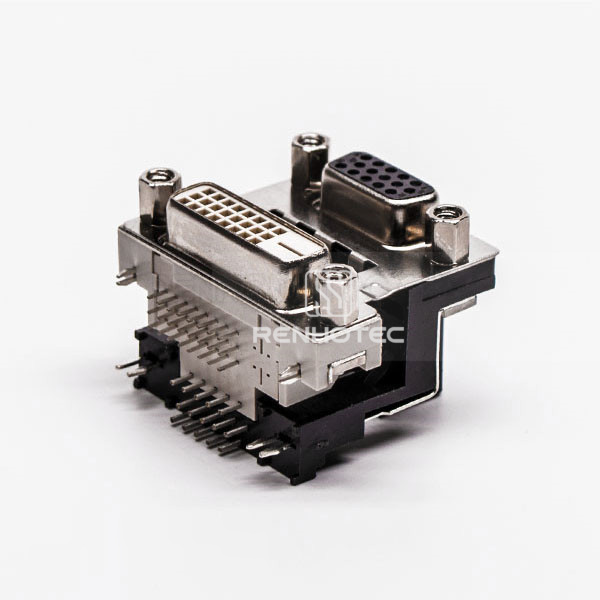

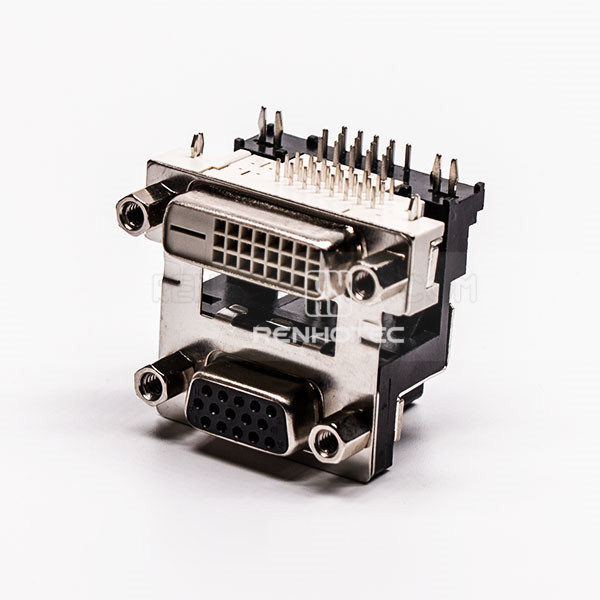

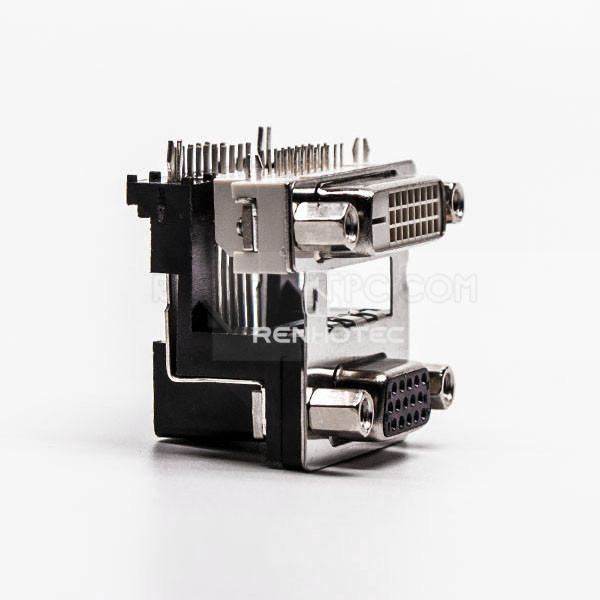

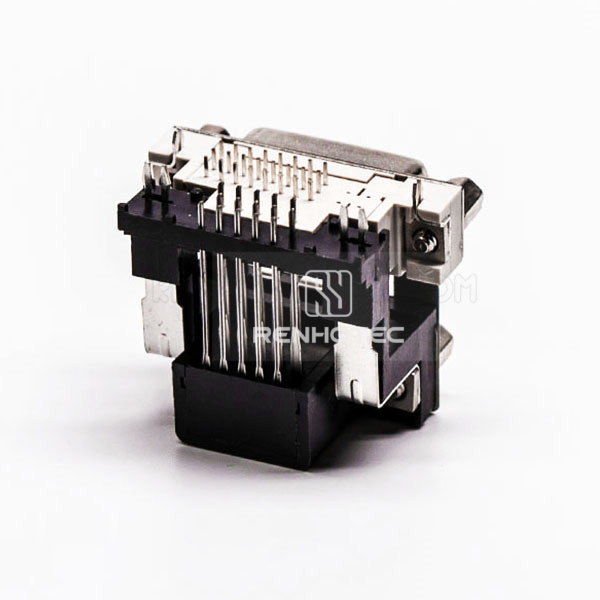

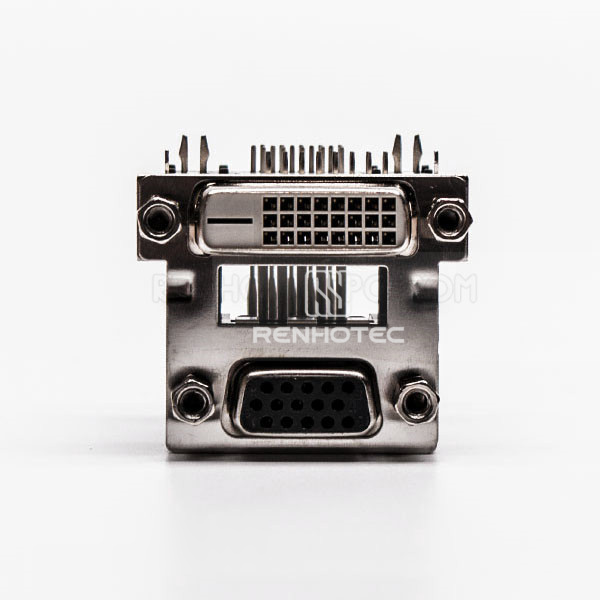

Stacked female connector combining DVI-D and high-density D-sub interfaces, with right-angle orientation and through-hole PCB mounting.

Staking-type termination. Check the spacing between the two mating faces and the board footprint against the assembly drawing.

Full Specifications

Electrical

Current Rating
1.5A min.
Contact Resistance
20 Millohms Max
Insulation Resistance
1000Megohms Min
Dielectric Withstanding
1000V DC
Dielectric Withstanding Voltage
500V DC RMS ±50V 60HZ

Mechanical

Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Staking Type
Connector interfaces
DVI-D+DB High Density
Construction detail
Stacked
Extraction force
1KGf Min. 4KGf Max
Insertion force
4.5KGf Max

Environmental

Operating Temperature
-20 to 85 °C
