D-SUB Connector

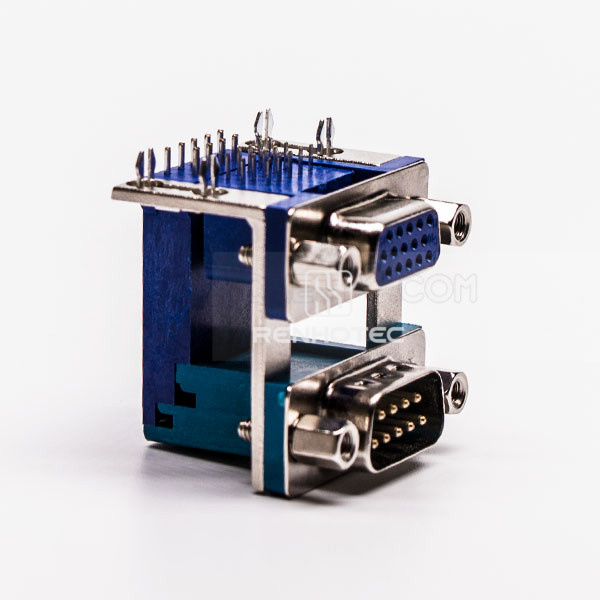

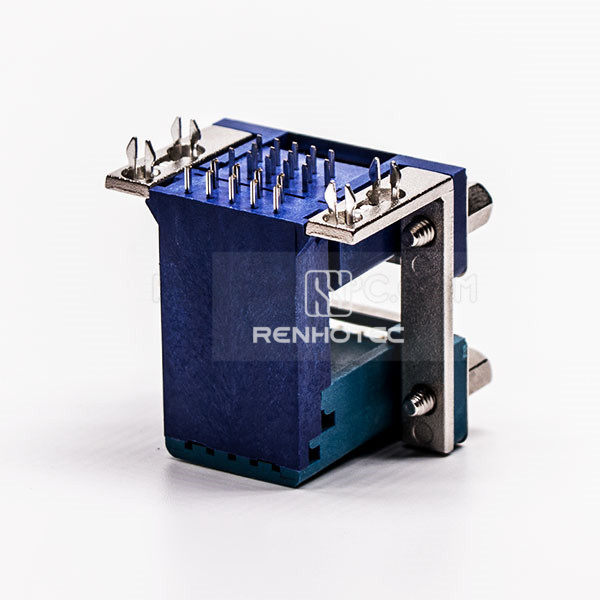

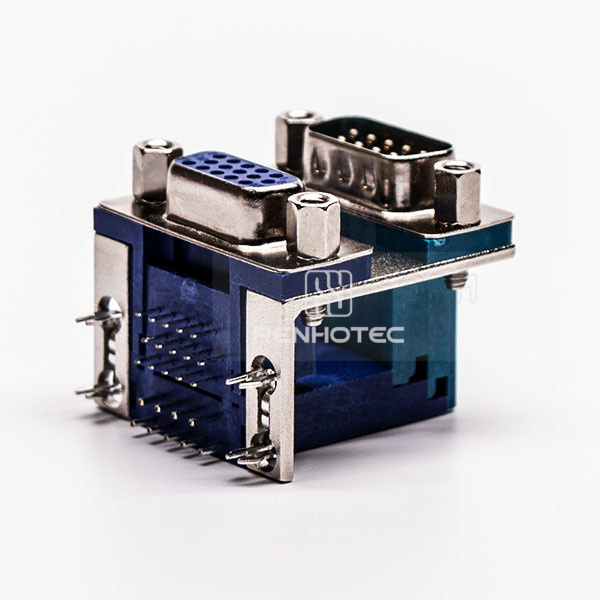

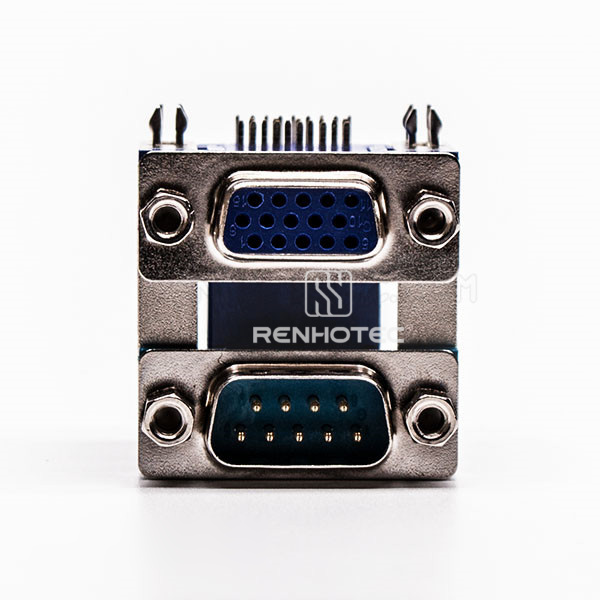

Stacked D-SUB 90 Degree Connector Jack and Plug Staking Type

Public Part No. RHT-681-1208

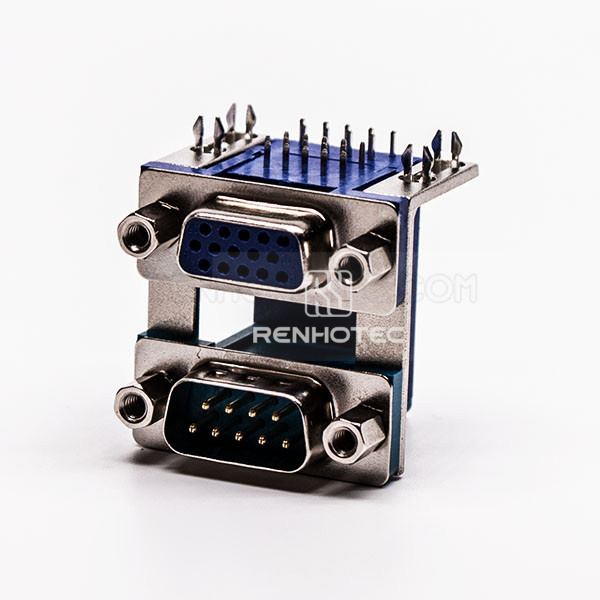

Stacked D-SUB 90 Degree Connector Jack and Plug Staking Type
Enlarge image
Stacked D-SUB 90 Degree Connector Jack and Plug Staking TypeStacked D-SUB 90 Degree Connector Jack and Plug Staking TypeStacked D-SUB 90 Degree Connector Jack and Plug Staking TypeStacked D-SUB 90 Degree Connector Jack and Plug Staking TypeStacked D-SUB 90 Degree Connector Jack and Plug Staking Type

Key specifications

Connector Type
D-SUB Connector
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Staking Type
Request QuoteFull specifications

Overview

Stacked D-SUB connector with male and female interfaces in a right-angle configuration. Termination: staking type.

Full Specifications

Electrical

Current Rating
3A
Voltage Rating
60V
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V

Mechanical

Connector Type
D-SUB Connector
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Staking Type
Shielding
Shielded
Construction detail
Stacked / stacked
Extraction force
<50 N
Insertion force
<50 N
Mating cycles
50
Gender at connector ends
Female / Male

Material

Shell construction
Metal shell

Environmental

Operating Temperature
-55 to 105 °C
