FPC / FFC Connector

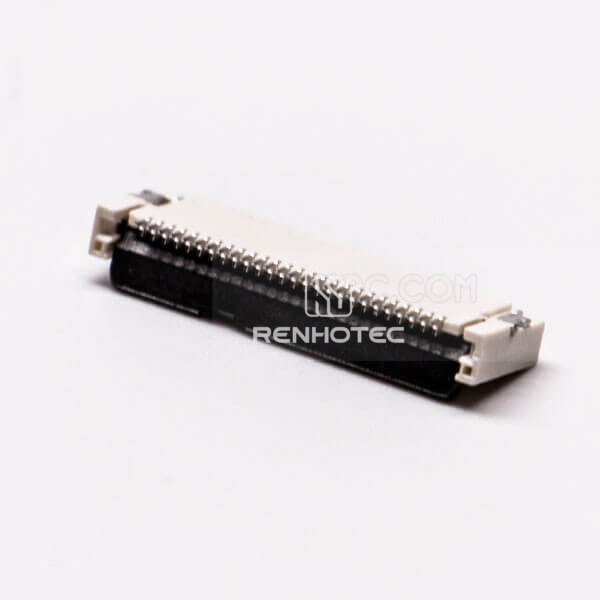

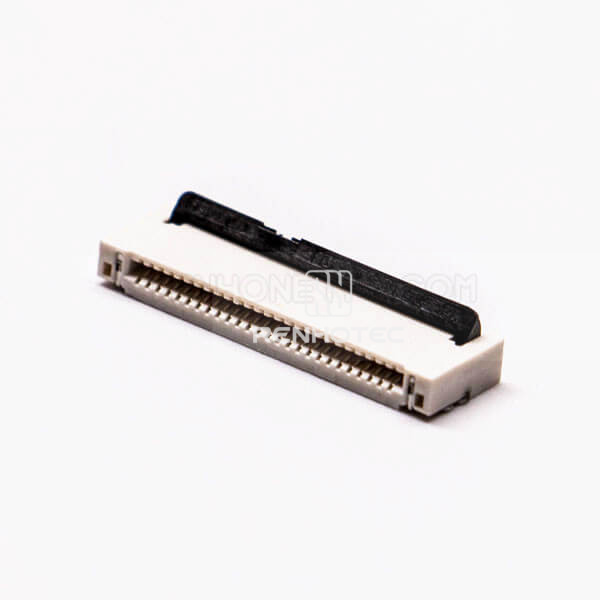

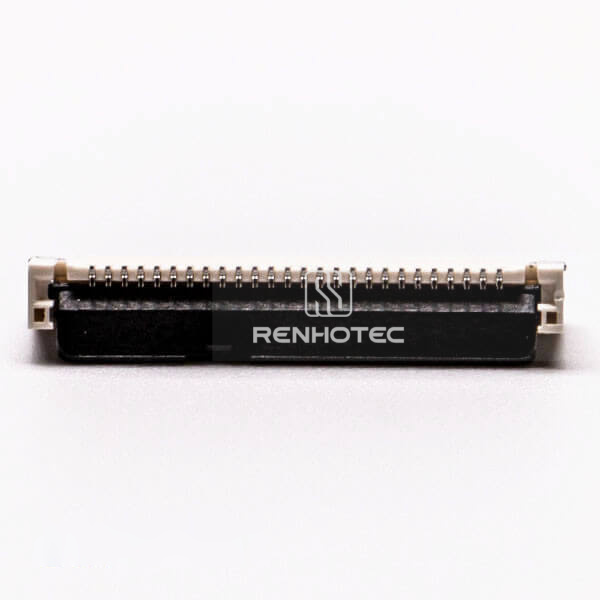

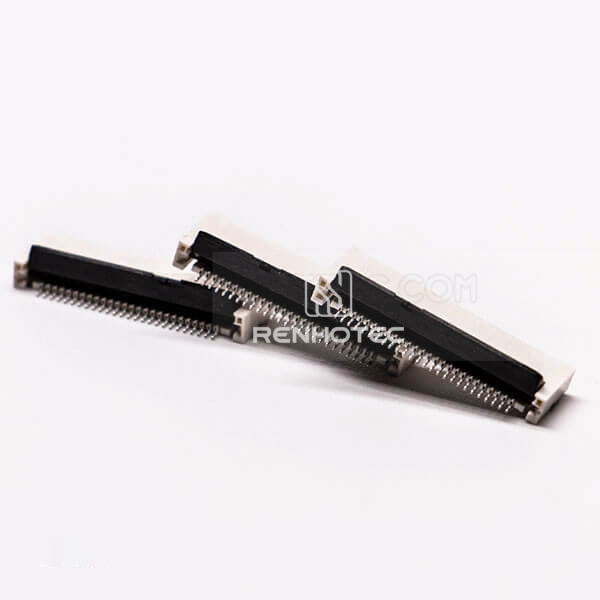

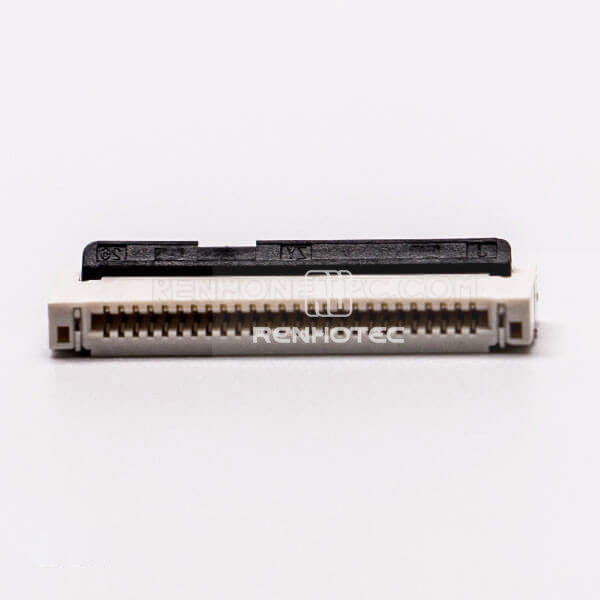

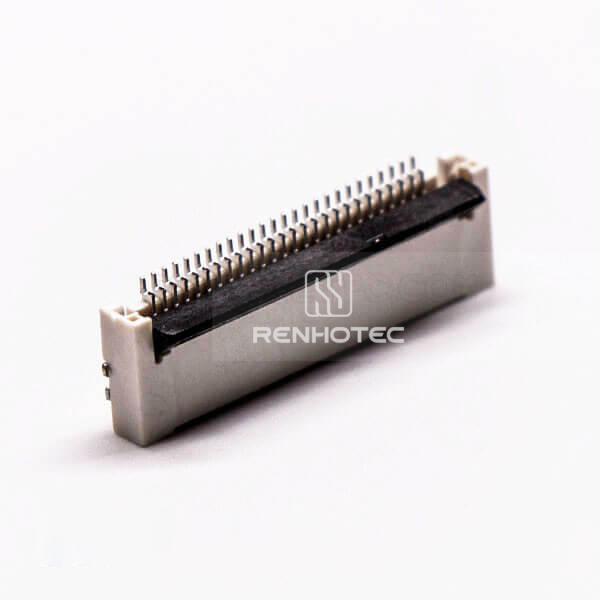

SMT FPC 1PH Single Contact Style 26 Pin Solder Type for PCB Mount

Public Part No. RHT-616-0513

SMT FPC 1PH Single Contact Style 26 Pin Solder Type for PCB Mount
Enlarge image
SMT FPC 1PH Single Contact Style 26 Pin Solder Type for PCB MountSMT FPC 1PH Single Contact Style 26 Pin Solder Type for PCB MountSMT FPC 1PH Single Contact Style 26 Pin Solder Type for PCB MountSMT FPC 1PH Single Contact Style 26 Pin Solder Type for PCB MountSMT FPC 1PH Single Contact Style 26 Pin Solder Type for PCB MountSMT FPC 1PH Single Contact Style 26 Pin Solder Type for PCB Mount

Key specifications

Connector Type
FFC/FPC Connector
Pin Count
26 Pin
Mounting Type
PCB Mount / SMT
Termination Type
Solder Type
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
0.5A
Voltage Rating
50V
Contact Resistance
40 milliohms max.
Insulation Resistance
50 Megohm min.

Mechanical

Connector Type
FFC/FPC Connector
Pin Count
26 Pin
Mounting Type
PCB Mount / SMT
Termination Type
Solder Type
Pitch notation
1.0 Pitch / 1PH
Construction detail
Single Contact Type
Durability (min.)
25 cycles

Environmental

Operating Temperature
-40 to 125 °C
