Cable Assembly

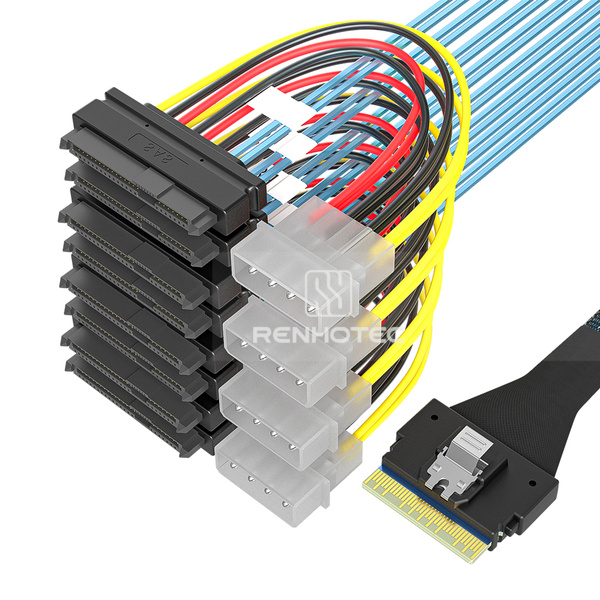

SlimSAS SFF-8654 8i to 8 x SAS SFF-8482 Breakout Cable, 4-pin power

Public Part No. RHT-726-1022

SlimSAS SFF-8654 8i to 8 x SAS SFF-8482 Breakout Cable, 4-pin power
Enlarge image

Key specifications

Connector Type
SAS / SlimSAS
Request QuoteFull specifications Downloads

Overview

Cable assembly from SlimSAS SFF-8654 8i to 8 SAS SFF-8482 branches. Includes 4-pin peripheral power connectors.

Eight SAS drive branches are provided with peripheral power connections. Lay out the drive and power positions before specifying the branch lengths.

Configuration details

  • Power connection: 4-pin peripheral power connectors.
  • Signal wire gauge: 32 AWG.

Selection information

Provide the mating connector references, required pin assignment and cable length when requesting a quotation.

Full Specifications

Mechanical

Connector Type
SAS / SlimSAS
Connector A
SlimSAS SFF-8654 8i
Connector B
SAS SFF-8482
Connector A quantity
1
Connector B quantity
8
Power connection
4-pin peripheral power connectors

Material

Signal wire gauge
32 AWG

Downloads

Drawing (PDF)
