Cable Assembly

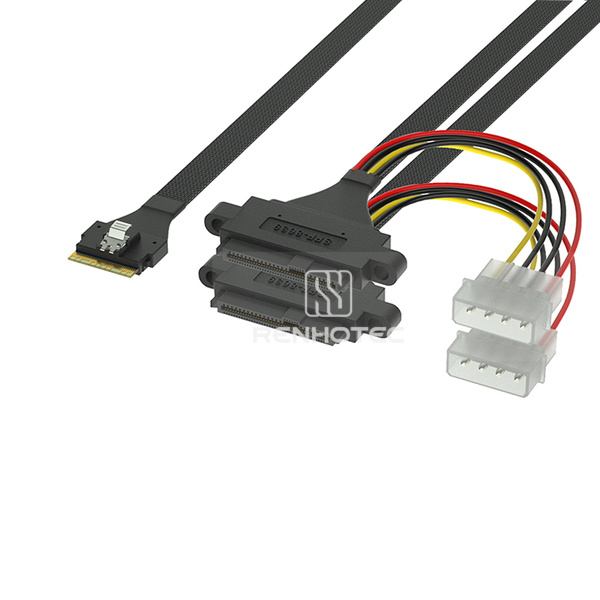

SlimSAS SFF-8654 8i to 2 x U.2 SFF-8639 Breakout Cable, 4-pin power, Mounting ears

Part No.RHT-726-1014

Cable assembly from SlimSAS SFF-8654 8i to 2 U.2 SFF-8639 branches. Includes 4-pin peripheral power connectors, mounting ears at U.2 ends.

  • Connector TypeSlimSAS / U.2
  • Connector ASlimSAS SFF-8654 8i
  • Connector BU.2 SFF-8639

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Check the documents ↗

Connection

Connector Type
SlimSAS / U.2
Connector A
SlimSAS SFF-8654 8i
Connector B
U.2 SFF-8639
Connector A quantity
1
Connector B quantity
2

Mechanical

Power connection
4-pin peripheral power connectors
Mounting feature
Mounting ears at U.2 ends

Material

Signal wire gauge
32 AWG

Engineering resources

Check fit and wiring.

1 product document

Before you specify

Selection guide

Cable assembly from SlimSAS SFF-8654 8i to 2 U.2 SFF-8639 branches. Includes 4-pin peripheral power connectors, mounting ears at U.2 ends.

The two U.2 ends include mounting ears and separate peripheral power connections. Check the mounting-hole positions and the space needed for both power leads.

Configuration details

  • Power connection: 4-pin peripheral power connectors.
  • Mounting feature: Mounting ears at U.2 ends.
  • Signal wire gauge: 32 AWG.

Selection information

Provide the mating connector references, required pin assignment and cable length when requesting a quotation.

RHT-726-1014
