Cable Assembly

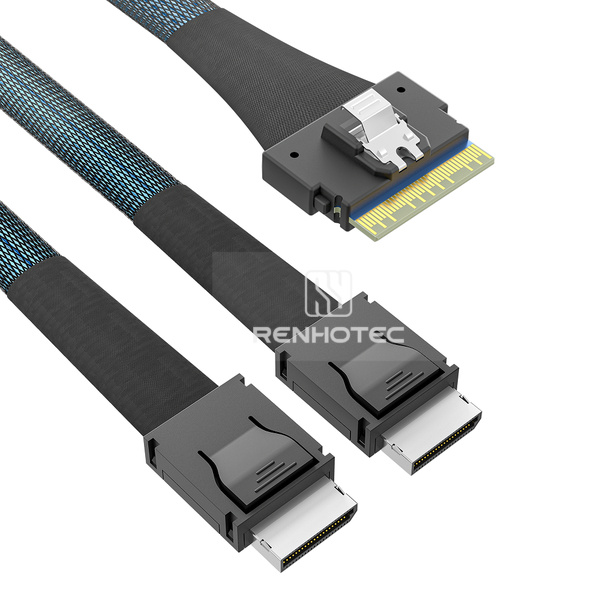

SlimSAS SFF-8654 8i to 2 x OCuLink SFF-8611 Breakout Cable
Cable assembly from SlimSAS SFF-8654 8i to 2 OCuLink SFF-8611 branches.
- Connector TypeOCuLink / SlimSAS
- Connector ASlimSAS SFF-8654 8i
- Connector BOCuLink SFF-8611
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Connection
- Connector Type
- OCuLink / SlimSAS
- Connector A
- SlimSAS SFF-8654 8i
- Connector B
- OCuLink SFF-8611
- Connector A quantity
- 1
- Connector B quantity
- 2
Material
- Signal wire gauge
- 32 AWG
Engineering resources
Check fit and wiring.
RHT-726-1010
Open drawing PDF ↗Before you specify
Selection guide
Cable assembly from SlimSAS SFF-8654 8i to 2 OCuLink SFF-8611 branches.
Two OCuLink branches share the SlimSAS 8i end. Check which branch serves each equipment connection before finalizing the harness routing.
Configuration details
- Signal wire gauge: 32 AWG.
Selection information
Provide the mating connector references, required pin assignment and cable length when requesting a quotation.
RHT-726-1010
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
SlimSAS SFF-8654 8i to 2 x OCuLink SFF-8611 Breakout Cable- Product family
- Cable Assembly
- Public Part No.
- RHT-726-1010
