Cable Assembly

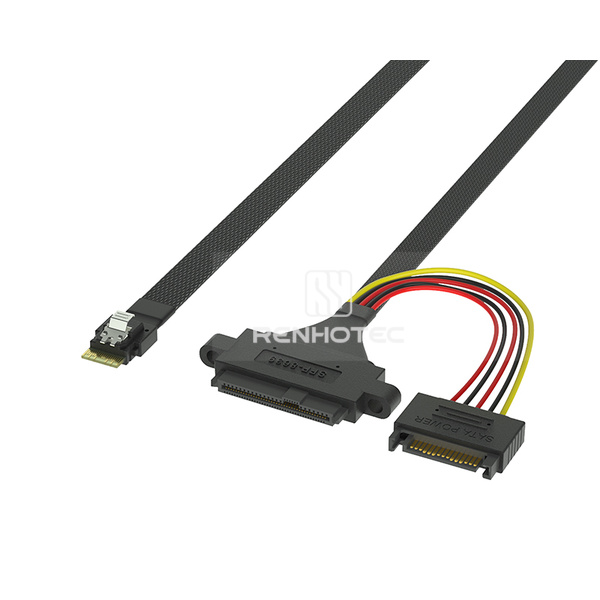

SlimSAS SFF-8654 4i to U.2 SFF-8639 Cable, 15-pin power, Mounting ears

Public Part No. RHT-726-1020

SlimSAS SFF-8654 4i to U.2 SFF-8639 Cable, 15-pin power, Mounting ears
Enlarge image

Key specifications

Connector Type
SlimSAS / U.2
Request QuoteFull specifications Downloads

Overview

Cable assembly from SlimSAS SFF-8654 4i to U.2 SFF-8639. Includes 15-pin power connector, mounting ear at U.2 end.

The U.2 end includes a mounting ear and a separate 15-pin power connection. Match the fixing position and power lead route to the drive installation.

Configuration details

  • Power connection: 15-pin power connector.
  • Mounting feature: Mounting ear at U.2 end.
  • Signal wire gauge: 32 AWG.

Selection information

Provide the mating connector references, required pin assignment and cable length when requesting a quotation.

Full Specifications

Mechanical

Connector Type
SlimSAS / U.2
Connector A
SlimSAS SFF-8654 4i
Connector B
U.2 SFF-8639
Connector A quantity
1
Connector B quantity
1
Power connection
15-pin power connector
Mounting feature
Mounting ear at U.2 end

Material

Signal wire gauge
32 AWG

Downloads

Drawing (PDF)
