Cable Assembly

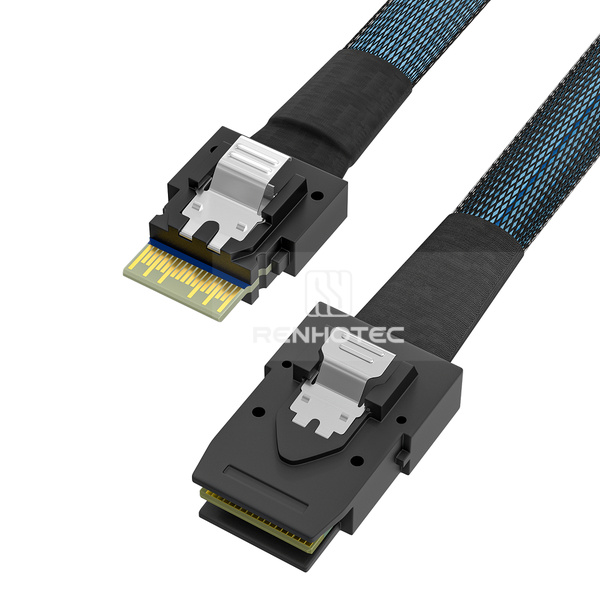

SlimSAS SFF-8654 4i to Mini-SAS SFF-8087 Cable

Public Part No. RHT-726-1021

SlimSAS SFF-8654 4i to Mini-SAS SFF-8087 Cable
Enlarge image

Key specifications

Connector Type
Mini-SAS / SlimSAS
Request QuoteFull specifications Downloads

Overview

Cable assembly from SlimSAS SFF-8654 4i to Mini-SAS SFF-8087.

A single SFF-8087 Mini-SAS end is paired with SlimSAS 4i. Check the internal mating interface and pin assignment at each end.

Configuration details

  • Signal wire gauge: 30 AWG.

Selection information

Provide the mating connector references, required pin assignment and cable length when requesting a quotation.

Full Specifications

Mechanical

Connector Type
Mini-SAS / SlimSAS
Connector A
SlimSAS SFF-8654 4i
Connector B
Mini-SAS SFF-8087
Connector A quantity
1
Connector B quantity
1

Material

Signal wire gauge
30 AWG

Downloads

Drawing (PDF)
