Cable Assembly

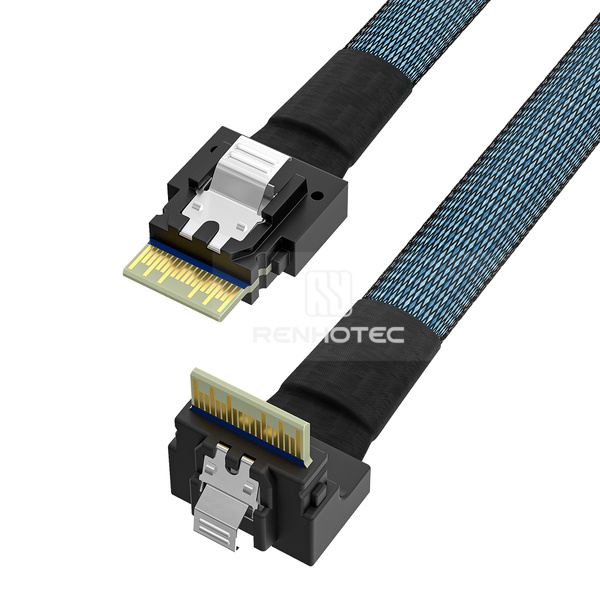

SlimSAS SFF-8654 4i Cable, Right angle
Cable assembly from SlimSAS SFF-8654 4i to SlimSAS SFF-8654 4i. Includes right angle connector B.
- Connector TypeSlimSAS
- Connector ASlimSAS SFF-8654 4i
- Connector BSlimSAS SFF-8654 4i
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Connection
- Connector Type
- SlimSAS
- Connector A
- SlimSAS SFF-8654 4i
- Connector B
- SlimSAS SFF-8654 4i
- Connector A quantity
- 1
- Connector B quantity
- 1
Mechanical
- Connector B orientation
- Right angle
Material
- Signal wire gauge
- 32 AWG
Engineering resources
Check fit and wiring.
RHT-726-1009
Open drawing PDF ↗Before you specify
Selection guide
Cable assembly from SlimSAS SFF-8654 4i to SlimSAS SFF-8654 4i. Includes right angle connector B.
The angled SlimSAS 4i end changes the cable exit at one mating position. Check the angle against the available clearance around that connector.
Configuration details
- Connector B orientation: Right angle.
- Signal wire gauge: 32 AWG.
Selection information
Provide the mating connector references, required pin assignment and cable length when requesting a quotation.
RHT-726-1009
