SCSI Connector

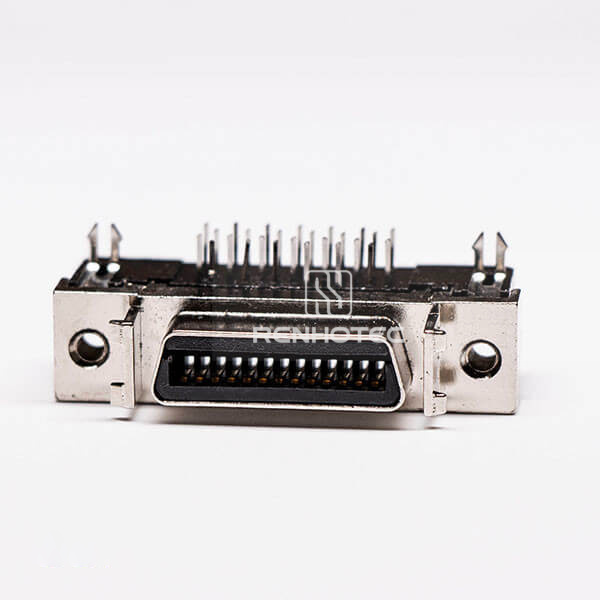

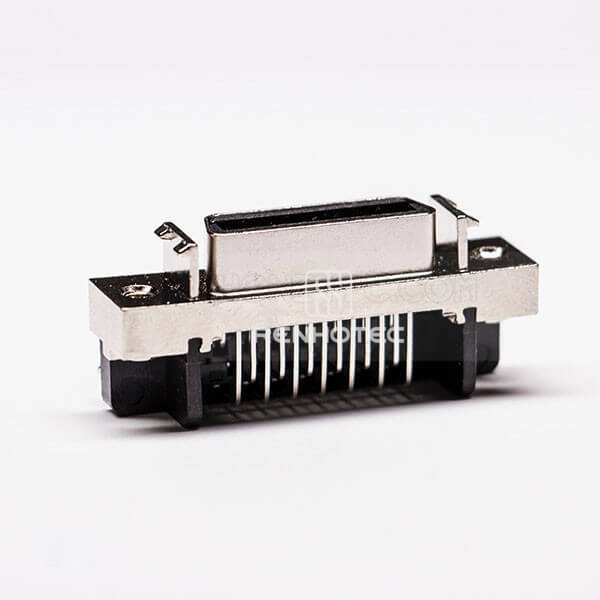

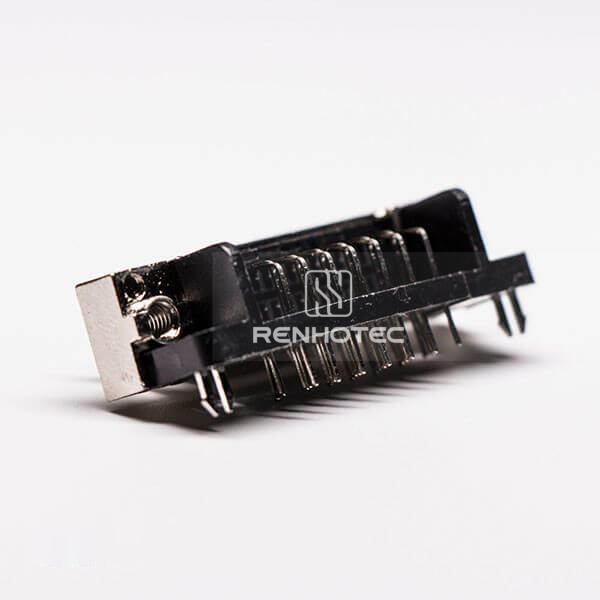

SCSI Types 26 Pin Right Angle Female Through Hole for PCB Mount

Public Part No. RHT-691-0762

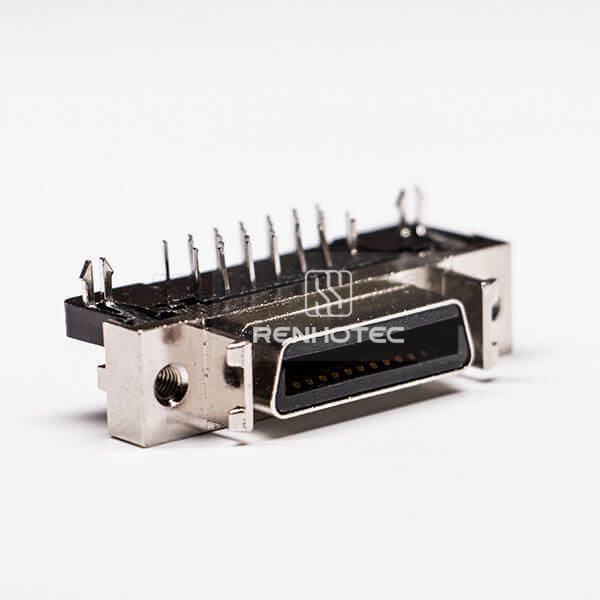

SCSI Types 26 Pin Right Angle Female Through Hole for PCB Mount
Enlarge image
SCSI Types 26 Pin Right Angle Female Through Hole for PCB MountSCSI Types 26 Pin Right Angle Female Through Hole for PCB MountSCSI Types 26 Pin Right Angle Female Through Hole for PCB MountSCSI Types 26 Pin Right Angle Female Through Hole for PCB Mount

Key specifications

Connector Type
SCSI
Pin Count
26 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Request QuoteFull specifications

Overview

RHT-691-0762 is a 26-pin female SCSI connector with right-angle, through-hole PCB mounting and harpoon retaining features.

Rated current is 1 A, with an operating temperature range of −55 to +105 °C. Maximum contact resistance is 35 mΩ.
