SCSI Connector

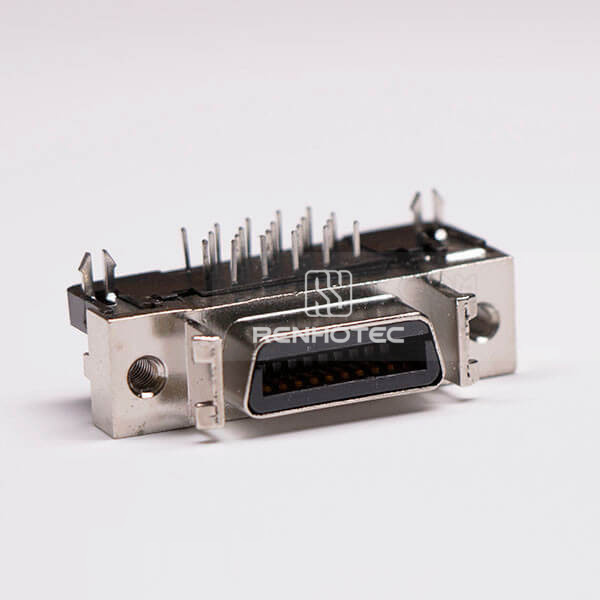

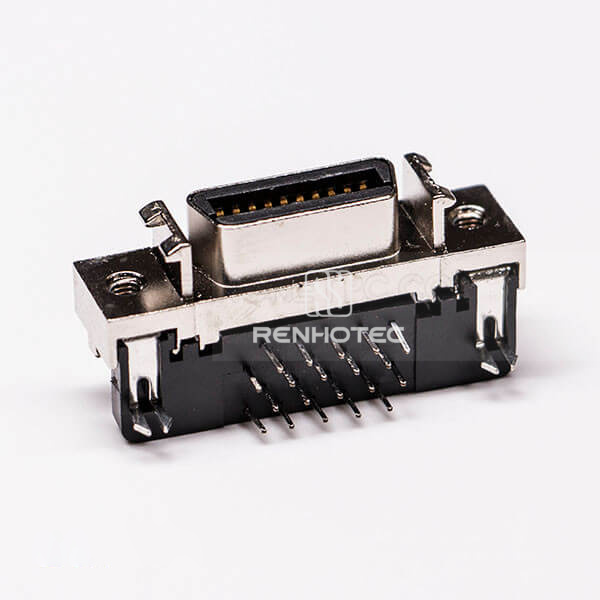

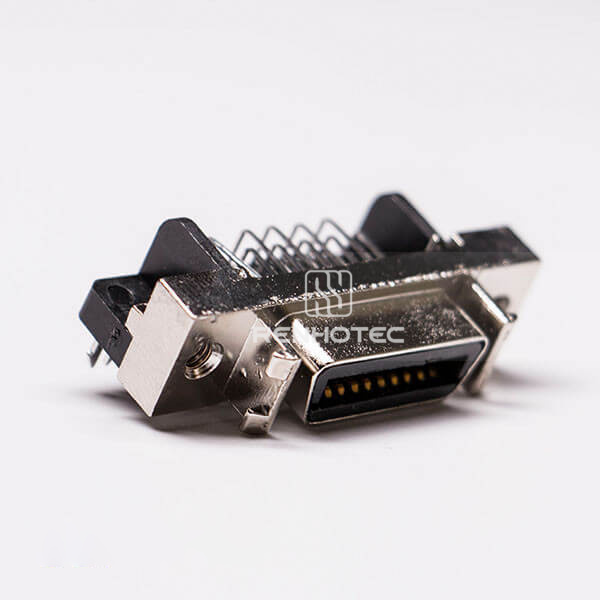

SCSI Connector 20 Pin Female Right Angle Harpoon Through Hole for PCB Mount

Part No.RHT-691-0761
20-pin female SCSI connector with a right-angle orientation and through-hole PCB mounting.
  • Connector TypeSCSI
  • Pin Count20 Pin
  • GenderFemale

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
1A
Insulator resistance
>500MΩ (minimum)
Contact resistance
35mΩ (maximum)
Dielectric withstanding
500V AC/minute
Insulation Resistance
1000M MIN

Connection

Connector Type
SCSI

Mechanical

Pin Count
20 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Construction detail
Harpoon
Mechanical operations
up to 500

Environmental

Operating Temperature
-55 to 105 °C

Before you specify

Selection guide

RHT-691-0761 is a 20-pin female SCSI connector with right-angle, through-hole PCB mounting and harpoon retaining features.

Rated current is 1 A, with an operating temperature range of −55 to +105 °C. Maximum contact resistance is 35 mΩ.
